Perkins Generator Set , Water Cooled Diesel Generator Prime Power 800kw / 1000kva

1 SET
MOQ
Negotiation
Price
Perkins Generator Set , Water Cooled Diesel Generator Prime Power 800kw / 1000kva
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 800KW 1000KVA
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: Cummins, Perkins, Deutz, FPT, Chinese Brand For Optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooled

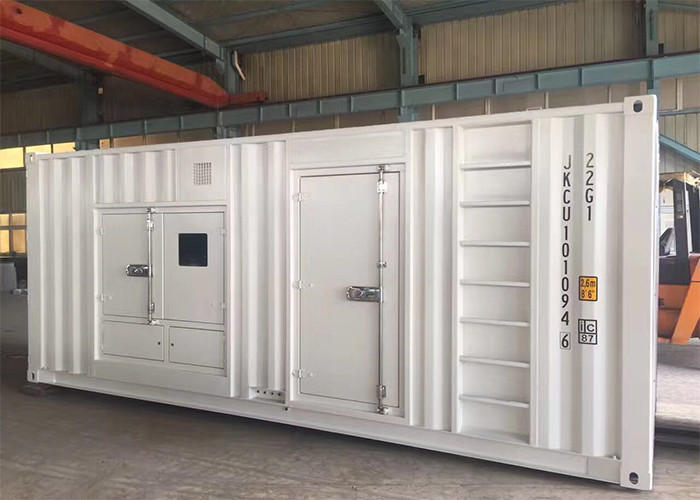

Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional
ATS: Optional
High Light:

open type genset

,

water cooled generator

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP1100PS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

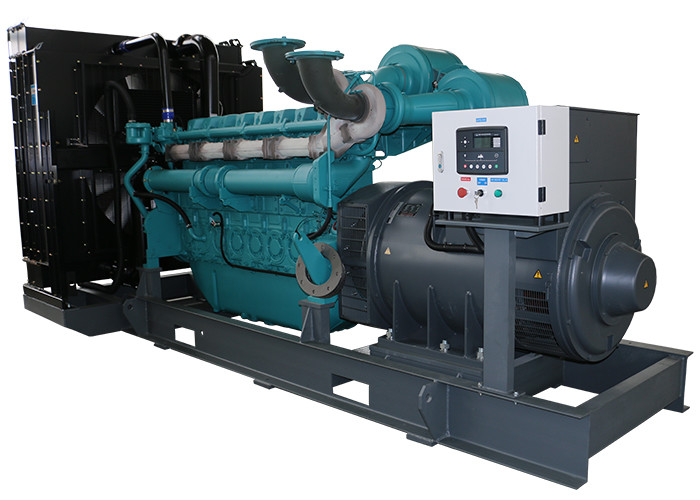

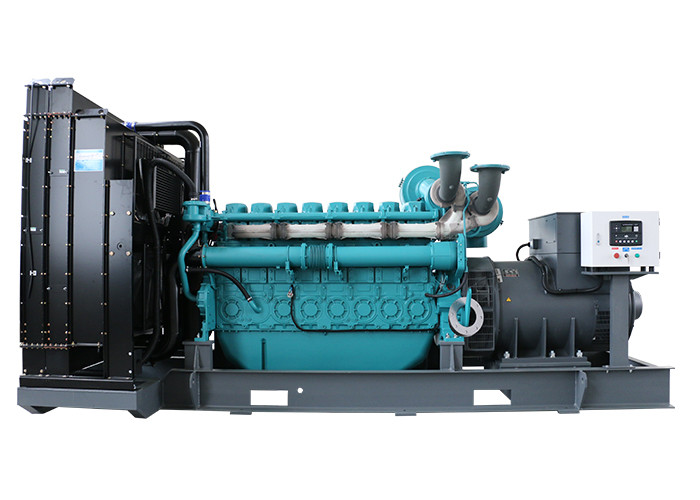

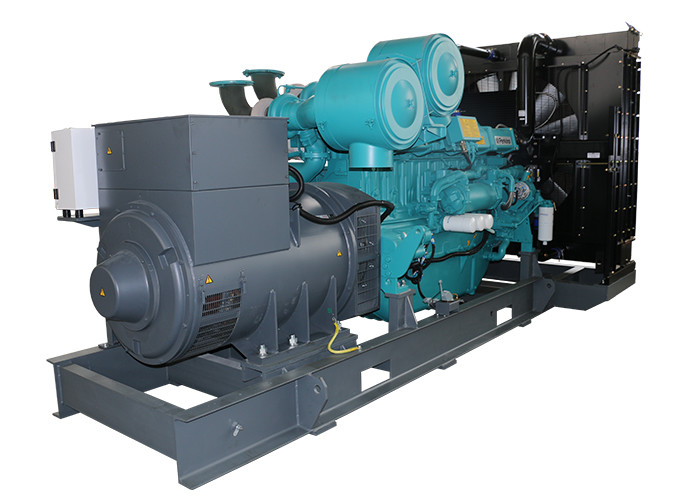

Perkins Generator Set , Water Cooled Diesel Generator Prime Power 800kw / 1000kva



Technical specification
Genset Model GP1100PS
Prime Power 800KW/1000KVA
Standby Power 880KW/1100KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 1443A
Genset Structure SILENT
Dimension 6050×2435×2585mm
Net Weight 9400KG
Noise level 83dB at 7 meters
Fuel Tank Capacity 1400L
Engine Model 4008TAG2A
Engine Features 8-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 160mm × 190mm
Displacement 31L
12-hour Power(kw) 861KW/1500
Fuel Consumption L/H 202.4L/H
Compression Ratio 16:01
Governor type Electric
Alternator Model STAMFORD /LVI634E
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Deepsea 7320 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



Perkins Generator Set , Water Cooled Diesel Generator Prime Power 800kw / 1000kva 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

Perkins Generator Set , Water Cooled Diesel Generator Prime Power 800kw / 1000kva 1

Perkins Generator Set , Water Cooled Diesel Generator Prime Power 800kw / 1000kva 2
