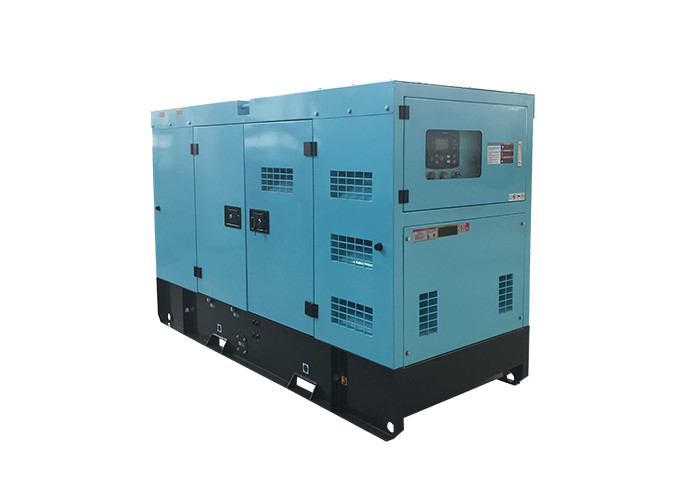

34kw 43kva perkins diesel generator auto start with ATS water heater
Technical specification | |
Genset Model | GP47P |
Prime Power | 34KW/43KVA |
Standby Power | 37KW/47KVA |
Phase Number | 3 |
Power Factor | 0.8 |
Rated Voltage | 230/400V |
Frequency | 50 HZ |
Rated Current | 62A |
Genset Structure | Open type |
Dimension | 1600×760×1200mm |
Net Weight | 950KG |
Noise level | 102dB at 7 meters |
Fuel Tank Capacity | 95L |
Engine Model | 1103A-33TG1 |
Engine Features | 4-cylinder,4 stroke,water cooled ,natural intake |
Bore * Stroke | 105mm × 127mm |
Displacement | 3.3L |
12-hour Power(kw) | 46KW/1500 |
Fuel Consumption L/H | 9.4L/H |
Compression Ratio | 17:01 |
Governor type | MECH |
Alternator Model | STAMFORD / PI144K |
Excitation Mode | brushless self-excited |
Insulation Class | H |
Protection Class | IP23 |
Construction Type | SAE Disc-coupling |
Controler Panel | Deepsea/ ComAp/ Smartgen |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:

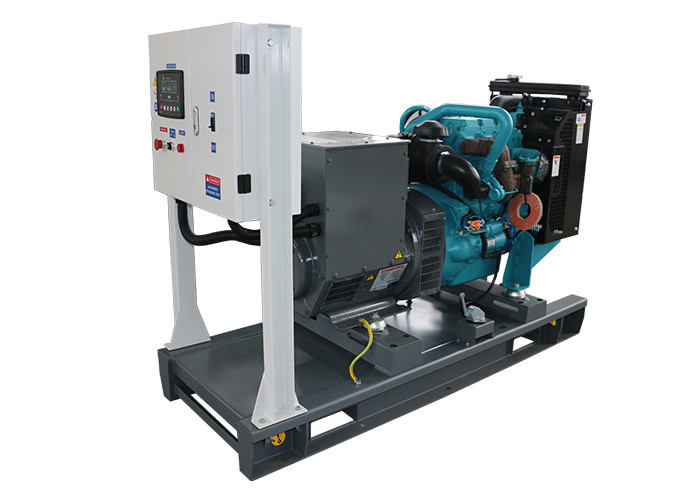

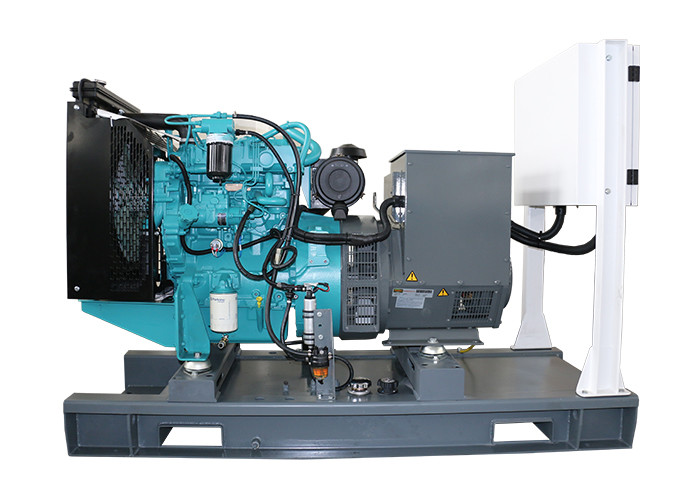

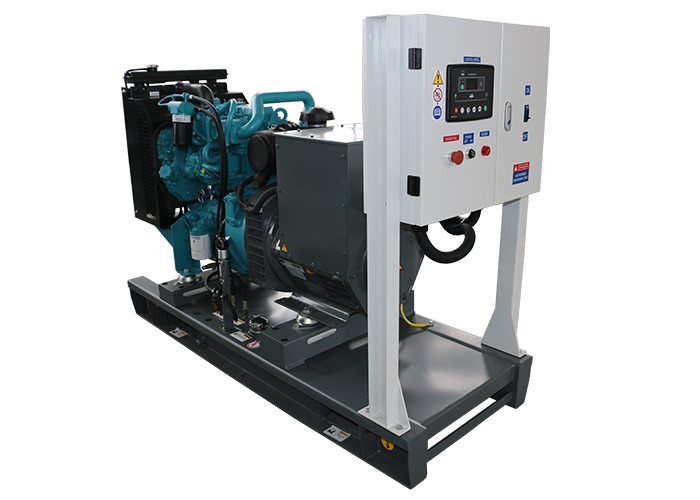

Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS
2.SynchronizationSystem
3.External daily fuel tank
4.Silent Canopy
5.Trailer
6.Auto Fuel Pump
7.Fuel and Water Separator
8.Lub Oil Heater
9.Coolant Heater
10.Fuel Drain Pump
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
