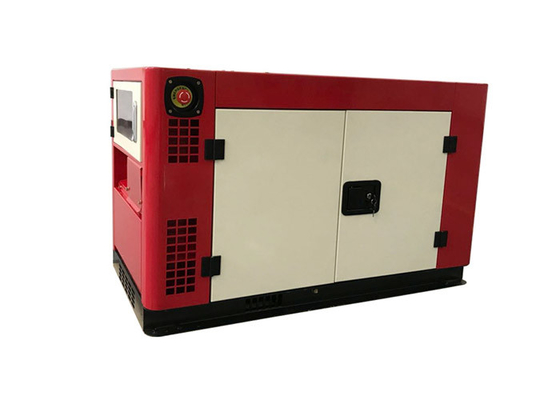

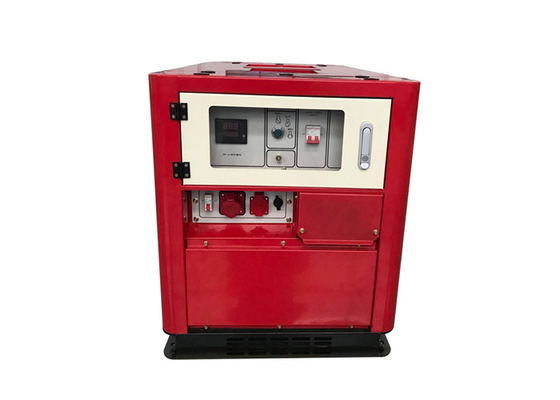

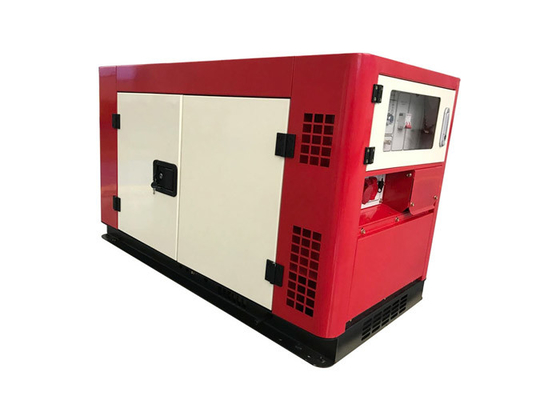

Air cooling 3 Phase/single Phase Silent 10kw small portable Diesel Generator
| Model NO. | PD13T | |
| Generator set | Rated frequency(Hz) | 50/60 |
| Rated voltage(V) | 220V 230V 240V | |
| Rated current(A) | 45A / 50A | |
| Rated output power(kW) | 11KW / 12KW | |
| Max output power (kW) | 12KW / 13KW | |
| Rated rotation speed(rpm) | 3000/3600 | |
| DC output | 12V 8.3A | |
| Power factor(cosφ) | 1 | |
| Phase number | 1 phase | |
| Noise level[dB(A)@7m] | 79 | |
| Overall dimension(L*W*H)[mm] | 1150x770x920mm | |
| Net weight(kg) | 310 | |
| Engine | Engine type | 2V92 |
| Structure type | 2 cylinder, V-Twin,4-stroke, air cooled, direct injection | |
| Displacement[ml(cu. in)] | 997 | |
| Engine speed(rpm) | 3000/3600 | |
| Compression ratio | 19:1 | |
| Rated output power[kW/rpm] | 14.4/3000 , 15.3/3600 | |
| Lubrication system | Pressure splashed | |
| Lube oil brand | Above CD SAE 10W-30,15W-40 | |
| Starting system | 12 V Electric starter | |
| Starting motor capacity | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | |
| Battery capacity | 12V 45AH | |
| Fuel consumption 100% loading | 3000rpm: 3.5 , 3600rpm: 4.0 | |
| Fuel type | Diesel 0#(summer)or-10#(winter),-35#(cold) | |
| Quantity for 20ft container | 30 PCS | |
Description:
| 1 | 100% copper alternator |
| 2 | 2 cylinder 4 stroke , diesel engine, air cooled |
| 3 | Phase single or 3 phase |
| 4 | Dimension 1120x750x800mm Net Weight 260KGS |
| 5 | Quantity for 20 foot container 30 sets |
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use , industrial use, island use.
3. Telecom, Mobile tower, etc
4.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. With 2 fan , have good air input and output design.
2. Power is stable.
3. 100% cooper
4. Produce engines / canopy and assemble by ourselves.
5. Small size , suitable small place.
6. With 2V86, 2 cylinder air cooled diesel engine
Our Services:
Warranty period is one year or 1000 running hours ( depends on which occurs first). If the failure is caused by trubine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable sapre parts of genset caused by crew wearing parts, consumable parts for daily use, human error, negligence or failure of following the original maintenance manual provisions, etc.
