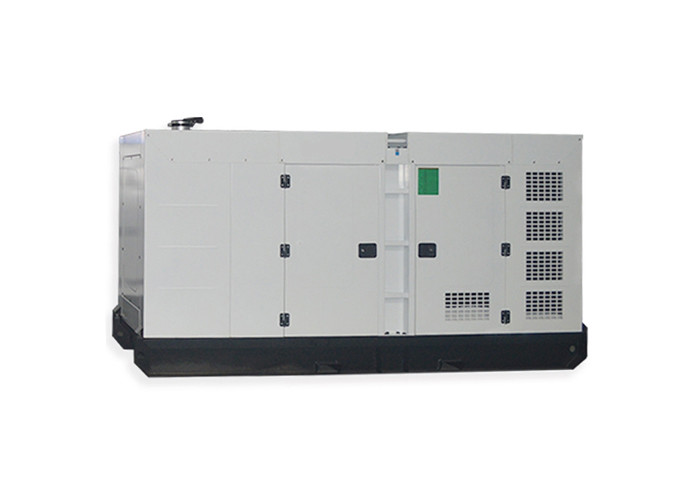

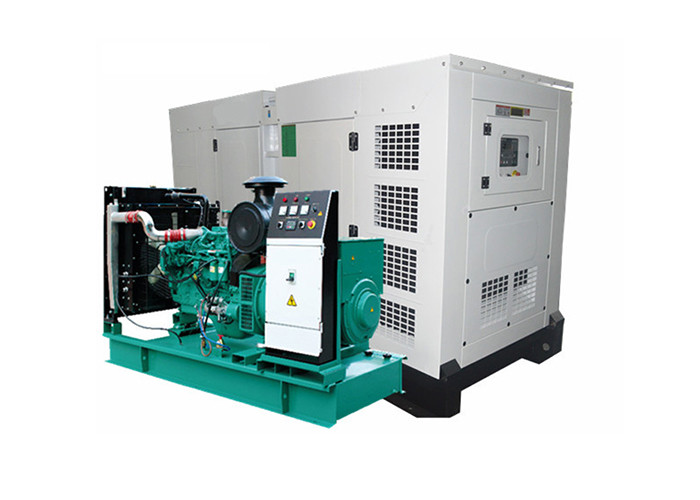

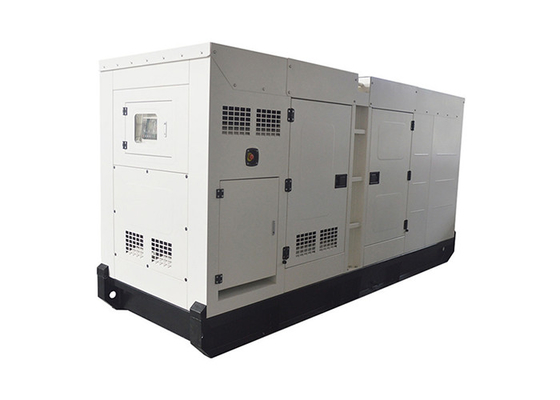

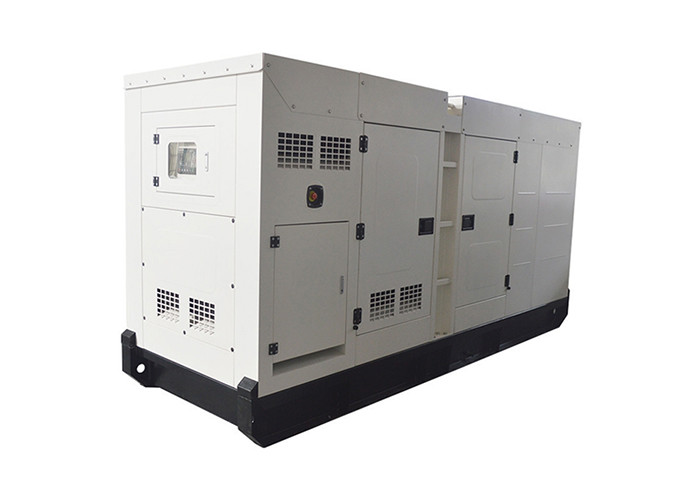

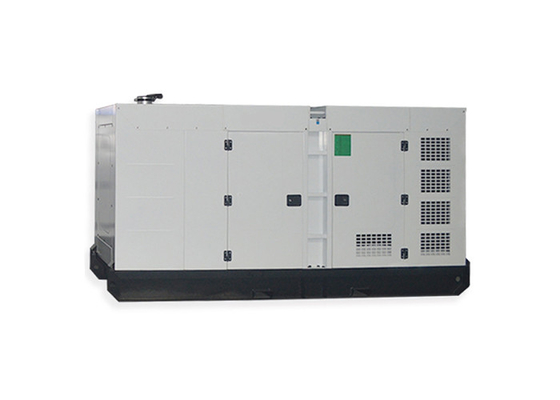

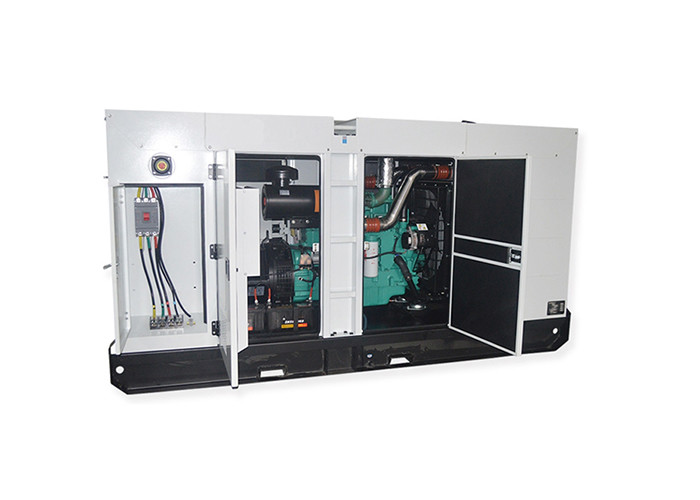

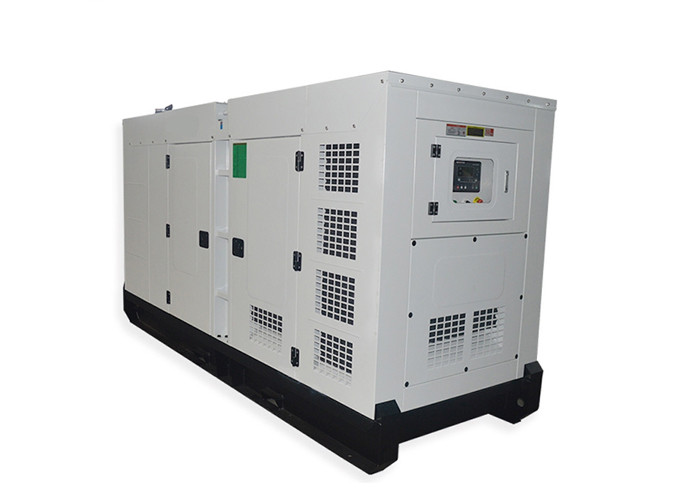

Soundproof three phase prime power 200kva diesel generator set price
| Technical specification | |
| Genset Model | GP220FPS |
| Prime Power | 160KW/200KVA |
| Standby Power | 176KW/220KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 288.7A |
| Genset Structure | SILENT |
| Dimension | 3600×1280×1860mm |
| Net Weight | 3200KG |
| Noise level | 75 dba @ 7 meters |
| Engine Model | FPT IVECO/NEF67TM7 |
| Engine Features | 6-cylinder,4 stroke,Turbocharged aftercooled |
| Bore * Stroke | 104mm × 132mm |
| Displacement | 6.7L |
| 12-hour Power(kw) | 176.5KW/1500 |
| Fuel Consumption L/H | 42.1L/H |
| Compression Ratio | 17.5:1 |
| Governor type | Mechnical |
| Alternator Model | MECC ALTE/ECO38-2SN/4 |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 6110 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
| Packaging & Shipping |
Delivery Time: 30 days after deposite
Package: nude packing or plywooden case
| Our services |
Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.
Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.
We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.
| Company advantages |
we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
| FAQ |
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
