60 Hz 440v To 480v Rated 80Kva Diesel Power Generator Genset With Original Stamford Alternator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 80KVA/64KW | Current | 123A |
|---|---|---|---|
| Voltage | 220/380V | Engine | Cummins |
| Alternator | Mecc Alte / Stamford / Chinese Brand | Controller | Smartgen / DeepSea/ Harseen With AMF Function |
| MCCB | Delixi / ABB 3 Pole Or 4 Pole | Sound Level/db | 70dB 7 Meter |
| Warranty | 1 Year Or 1000 Hours | ATS | Aiskai 160A 4 Pole |
| High Light | industrial diesel generators,diesel genset |
||
Product Description
60hz 440v to 480v Rated 80Kva Cummins Diesel Genset with Original Stamford alternator
| Genset Model | PF-DC88S |
| Prime Power | 64KW/80KVA |
| Standby Power | 70KW/88KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 115A |
| Genset Structure | SILENT |
| Dimension | 2970×1120×1580mm |
| Net Weight | 1560KG |
| Noise level | 72dB at 7 meters |
| Fuel Tank Capacity | 240L |
| Engine Model | 6BT5.9-G1 |
| Engine Features | 6-cylinder,4 stroke,water cooled ,Turbo |
| Bore * Stroke | 102mm × 120mm |
| Displacement | 5.9L |
| 12-hour Power(kw) | 86KW/1500 |
| Fuel Consumption L/H | 17L/H |
| Compression Ratio | 16.5:1 |
| Governor type | MECHANICAL |
| Alternator Model | STAMFORD /UCI224G |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 6120 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |

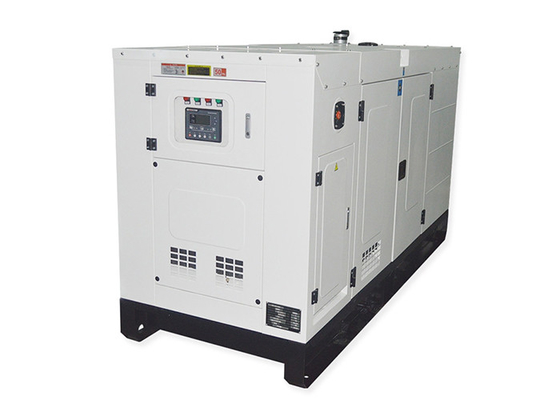

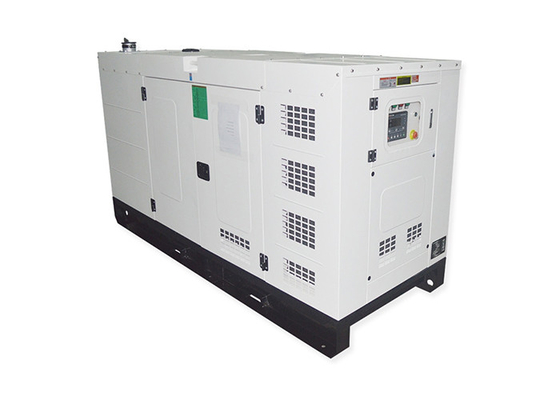

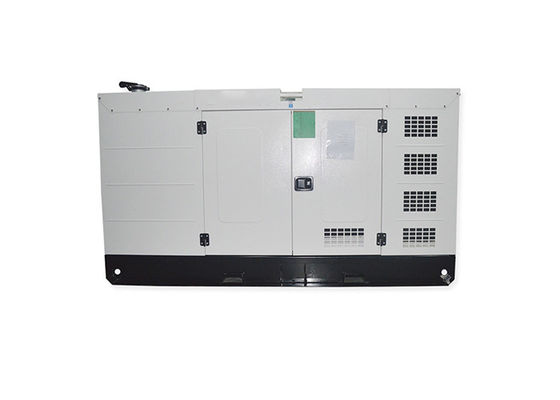

Diese power generator photos:
Description:
2. Alternator: Brushless 100% copper
3. Controller: UK Deepsea / Smartgen /Harseen
4. Options: remote controller, synchronizing.
5. With ATS / Battery Charger
6. Type: Soundproof type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Low fuel consumption
2. Good quality engine and alternator
3. Fast delivery. Big quantity of Engines in stock.
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service
9. Economy / Competitive price
