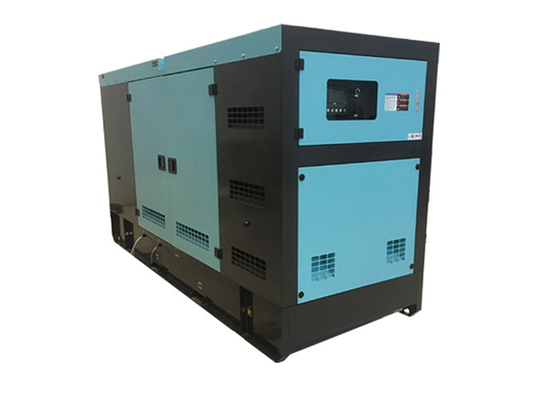

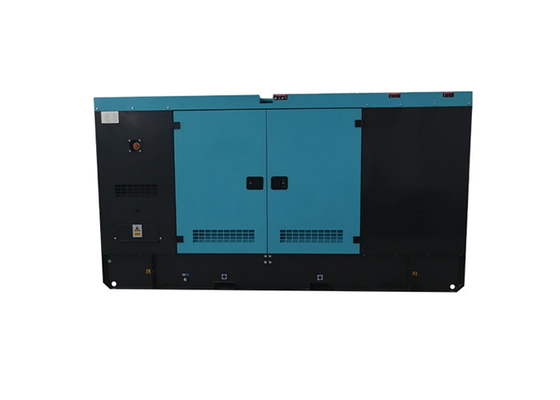

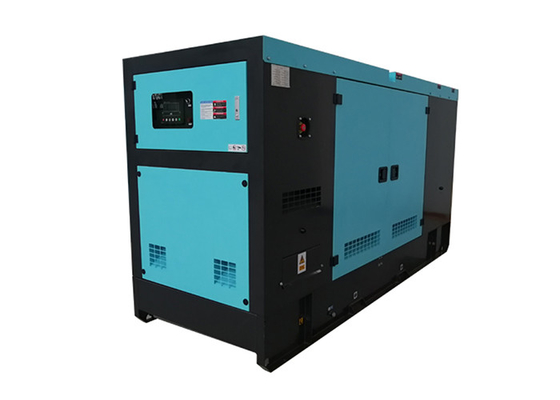

100Kw 125kva FPT IVECO Diesel Generator With Meccalte Alternator , Silent Type Generator
IVECO diesel engine advantage:
1. Original Italy diesel engine brand.
2. Euro standard production , strict quality control. Origin Italy .
3. Some model engines approval EPA TIER 4 and Euro stage III emission requirement
| Technical specification | |
| Genset Model | GP138FPS |
| Prime Power | 100KW/125KVA |
| Standby Power | 110KW/138KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 180.4A |
| Genset Structure | SILENT |
| Dimension | 3400×1120×1785mm |
| Net Weight | 2900KG |
| Noise level | 72 dba @ 7 meters |
| Engine Model | FPT IVECO/NEF67SM1 |
| Engine Features | 4-cylinder,4 stroke,Turbocharged |
| Bore * Stroke | 104mm × 132mm |
| Displacement | 6.7L |
| 12-hour Power(kw) | 110KW/1500 |
| Fuel Consumption L/H | 29.3L/H |
| Compression Ratio | 17.5:1 |
| Governor type | Mechnical |
| Alternator Model | MECC ALTE/ECP34-1L/4 |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler Panel | Deepsea/ ComAp/ Smartgen |
Description:
1. Power Range: 125KVA /100KW
2. Engine: Original Italy Fiat Iveco engine
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
7. Emergency power station
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
IVECO diesel engines, We have a large stock of IVECO motor :
