30kw / 38kva Diesel Power Generator Super Silent Diesel Generator With Fawde Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 30KW/38KVA | Frequency | 50/60hz |
|---|---|---|---|
| Current | 63A | Voltage | 220v-480v |
| Engine | FAWDE /4DX22-50D | Alternator | Meccalte/Stamford/Marathon/China Brand |
| Controller | Deepsea/Smartgen/Harsen | MCCB | ABB/Delixi |
| Warranty | One Year Or 1000hrs | Fuel Tank | 8 Hours |
| Sound Level At 7m | 65dBA | ||
| High Light | industrial diesel generators,diesel genset |
||
Product Description
30kw/38kva super silent Diesel power generator with Fawde engine
30KW FAW XICHAI DIESEL GENERATOR SPECIFICATION:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-FW30 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 30KW 38KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 33KW 41KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1750*800*1100, Silent: 2300*1120*1200 |
| 1.7 | Weight | Open: 800kg, Silent: 1200kg |
| 1.8 | Fuel consumption 100% prime load | 10 |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | 4DX22-50D |
| 2.3 | Governor/Class | Mechanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Turbocharged |
| 2.9 | Cooling mode | cccc |
| 2.10 | Bore and stroke | 102×118 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 3.86 |
| 2.13 | Engine Prime Power at 1500rpm | 37KWm |
| 2.14 | Engine Standby Power at 1500rpm | 41KWm |
| 2.15 | Lubrication oil capacity | 13L |
| 2.16 | Oil consumption | 0.05 |
| 2.17 | Dry weight of base | 380Kg |
| 2.18 | Dry weight of Gen Pac | 405Kg |
| 2.19 | Overall dimension(G.P) | 1155×680×835(mm) |
| 2.2 | Overall dimension(base) | 810×700×850(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 3.2 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | Stamford/PI 144H |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 54.1A |
| 3.12 | Efficiency | 86.60% |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 216kg |
Description:
1. Power Range: 30KW /33KW
2. Engine: FAW XICHAI diesel engine
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Open type, Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
7. Rental field.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.

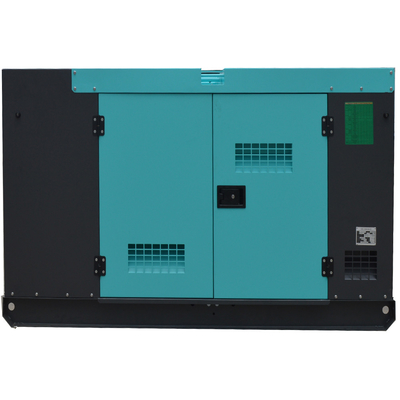

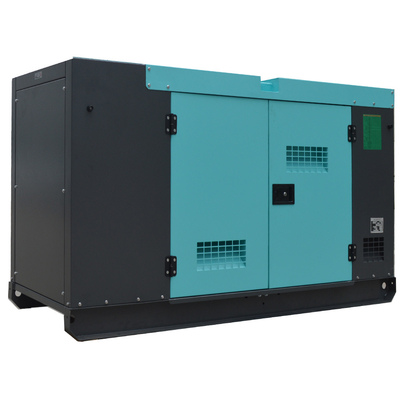

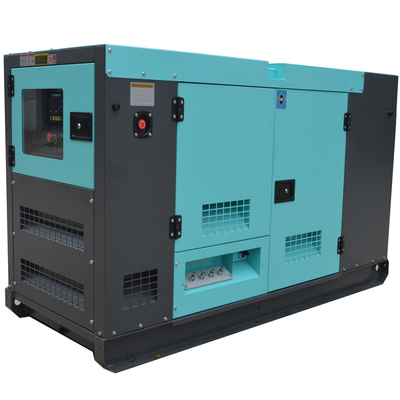

30KW FAW XICHAI SUPER SILENT GENERATOR PHOTOS:
