Yellow 120KW 150KVA UK Perkins Diesel Generator With ISO Certification
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 150KVA/120KW | Frequency | 50/60HZ |
|---|---|---|---|
| Voltage | 220/380V,127/220V | Engine | Original UK Perkins /1106A-70TAG2 |
| Alternator | Original Stamford / Mecc Alte | Controller | Deepsea, Smartgen |
| MCCB | ABB Or Delixi , 3 Pole | Cooling Type | Water Cooled |
| Diesel Generator Type | Open Type Or Silent Type | Warranty Time | 1 Year Or 1000 Hours |
| High Light | open type genset,water cooled generator |
||
Product Description
Yellow 120KW/150KVA low noise UK Perkins diesel generator with ISO Certification
150kva 120kw Perkins diesel power generator specification:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-P165S |
| 1.2 | Prime at 50HZ, 40℃ ambient | 120KW 150KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 132KW 165KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | 3250×1150×1600mm |
| 1.7 | Weight | 2000kg |
| 1.8 | Fuel consumption 100% prime load | 40.2L/H |
| 1.9 | Noise Level at 7 (Normal/Super) | 75/65dB |
| 1.10 | Structure of Gen-set |
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set |
| 1.11 | Control system (Optional) |
Basic control panel or Advanced control panel with automatically start-up function and other function |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | Perkins |
| 2.2 | Engine Model | 1106A-70TAG2 |
| 2.3 | Governor/Class | Electronic |
| 2.4 | Cylinder NO. | 6 |
| 2.5 | Engine build | Vertical in-line |
| 2.6 | Fuel spray pattern | direct injection |
| 2.7 | Aspiration |
Turbocharged and Air Charge Cooled |
| 2.8 | Cooling mode |
Radiator cooled (enclose water) |
| 2.9 | Bore and stroke | 105×127mm |
| 2.10 | Compression ratio | 16.2:1 |
| 2.11 | Displacement | 6.6 litres |
| 2.12 | Engine Prime Power at 1500rpm | 129.5KWm |
| 2.13 | Engine Standby Power at 1500rpm | 143.9KWm |
| 2.14 | Start-up mode | 12V, electric |
| 2.15 | Battery capacity | / |
| 2.16 | Starting/Min temperature | / |
| 2.17 | Lubricating oil consumption |
Lubricating oil consumption less than 10% Fuel consumption |
| 2.18 | Lubrication oil capacity | / |
| 2.19 | Coolant capacity – radiator and engine (40℃) | / |
| 2.20 | Exhaust temp – full load prime | / |
| 2.21 | Exhaust gas flow – full load prime | / |
| 2.22 | Exhaust gas back pressure max | / |
| 2.23 | Air flow – radiator (40℃ ambient) | / |
| 2.24 | Pusher fan head (duct allowance) 40℃ | / |
| 2.25 | Air intake – engine– full load prime | / |
| 2.26 | Standard Air intake temp | 25℃ |
| 2.27 | Fuel type | #0 Diesel (Natural temperature) |
| 2.28 | Filter system |
Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.29 | Exhaust system |
Adopt industrial high efficiency silencer and flexible bellows |
| 2.30 | Engine derating – altitude | / |
| 2.31 | Engine derating – temperature | / |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | UCI274F |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 230.9A |
| 3.12 | Efficiency | 0.923 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 530Kg |
Description:
1. Rated power: 150kva/120kw
2. Max power: 165kva/132kw
3. Engine: UK Perkins / 1106A-70TAG2
4. Alternator: Genuine Stamford, Marathon, Meccalte, etc
5. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing
6. ATS is optional, including ABB/ SOCOMMEC and world famous brand
7. Type: Open type, Soundproof type, Trailer type, Container type, etc
8. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti
vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
10. Big OEM of Perkins /Cummins engines and Stamford alternators

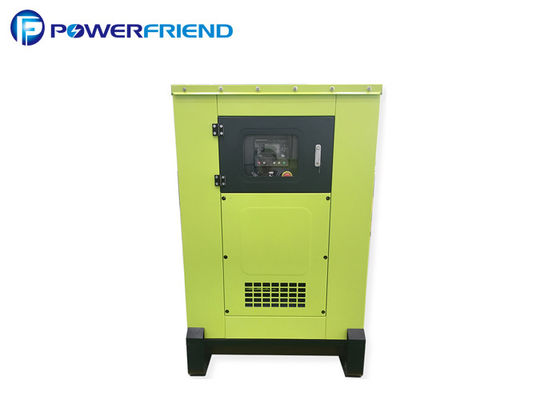

Power diesel generators photos:
