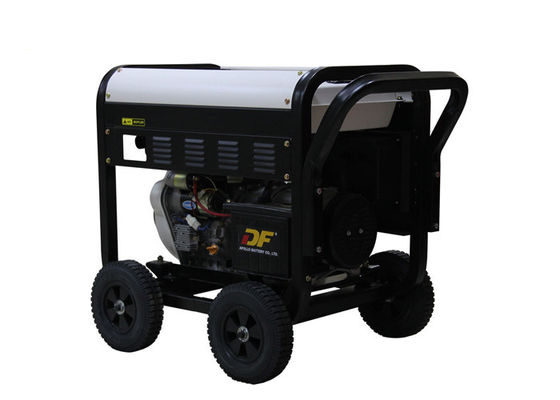

6 Kva Open Type Small Silent Diesel Generator Portable Low Fuel Consumption
|genset||Model No.||PD6500E (Open type)|
|Rated frequency (Hz)||50/60|
|Rated voltage (v)||230 120/240|
|Rated output power(kW)||6.0 6.2|
|Rated rotation speed(rpm)||3000/3600|
|DC Output||12v 8.3A|
|Phase number||Single phase|
|Noise level dB@7m||75|
|Overall dimension (L*W*H)MM||780x500x650|
|Structure type||Single cylinder , in lined 4 stroke, air cooled direct injection|
|Bore * stroke mm||88X86|
|Rated output(kw/rpm)||6.6/3000 7.3/3600|
|Lubrication system||pressure splashed|
|Lue oil brand||Above CD SAE 10W 30 15W 40|
|Staring system||12V Electric starter|
|Starting motor capacity||12V 0.8KW|
|Charging generator capacity||12V 3A|
|Battery capacity||12V 36AH|
|Fuel consumption rate(g/kw.h)||3000rpm 265,3600rpm 275|
|Fuel type||Diesel 0# or 10# 35#|
|Fuel tank capacity (L)||15|
|Continuous Running time(H)||8|
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.
carry the principal of satisfying the needs of consumers , long term the pure spare parts technical advice supervising installment and Commissioning transport gensets and training operator. After receive the feedback of quality problem, answer the consumer and supply problem solve program in 24 hours. Do our best to supply satisfied service.
I Service before sale
Sales Engineer supply technical advice and auxiliary supervising, such as, choosing type auxiliary generator room design solve the problem come across when use the equipment.
II Service during sale
Supply customer production infomation and arrange shippment for customer.
III Service after sale
1 Supply Engine room design free of Charge
2 Supply installment and Commissioning Guide free of Charge
3 Train the operator and maintain persons free of charge;
4 Perform files for the consumer, in hot persuit of service regular inspection lifelong service.
5 supply the pure spare parts year in market price,
6 Supply technology assistance for your whole life.
1 Guarantee Period: One years after the date of shipment from the manufacturer's plant or 1000 hours from the manufactured date,which comes first.
2 Repair or Replacement: PowerFriend Warrants to bear any repair or replacement charge under terms of warranty with the defects in design, material and workmanship.
3 Warranty limitation:
1) misuse& Lack of proper maintenance,
2) Not perform operation manual,
3) Generator modified without our Approval or Direction,
4) non-use Genuine parts,
5) Wearing Parts( Engine air filter & Oil filter )
When you have inquiries or need any help on the power service, please contact us freely -----
