Super Silent Water Cooled Perkins Diesel Generator Set Prime Power 200kw / 250kva

Place of Origin China (Mainland)
Brand Name Powerfriend
Certification ISO,CE Certification
Model Number PF-P275S
Minimum Order Quantity 1 set
Price USD 9500-15000 dollars
Packaging Details Packed in Foam and Ply wooden box
Delivery Time 30 days
Supply Ability 100 sets per months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power 200KW 250KVA Frequency 50/60HZ
ATS Optional Cooling System Water Cooled
Displacement(L) 8.7 Connecting Type Three Phase And Four Lines
Grading Protection IP23 Insulation Class H
High Light

open type genset

,

water cooled generator

Leave a Message
Product Description

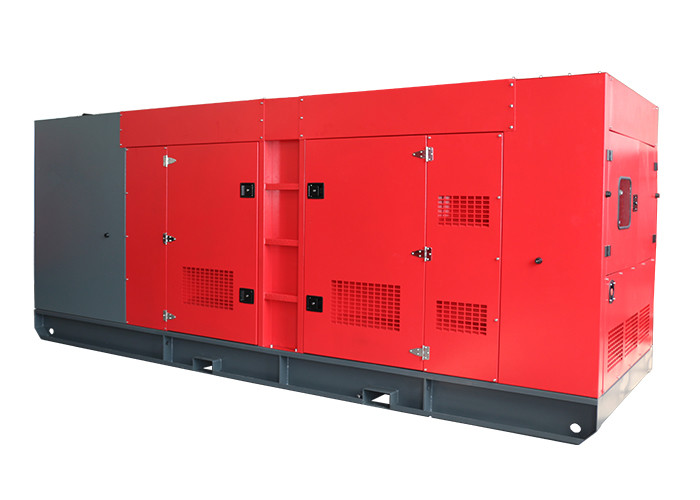

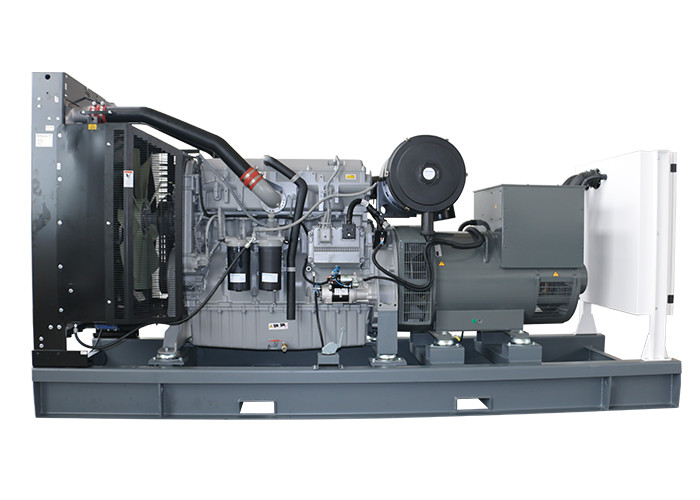

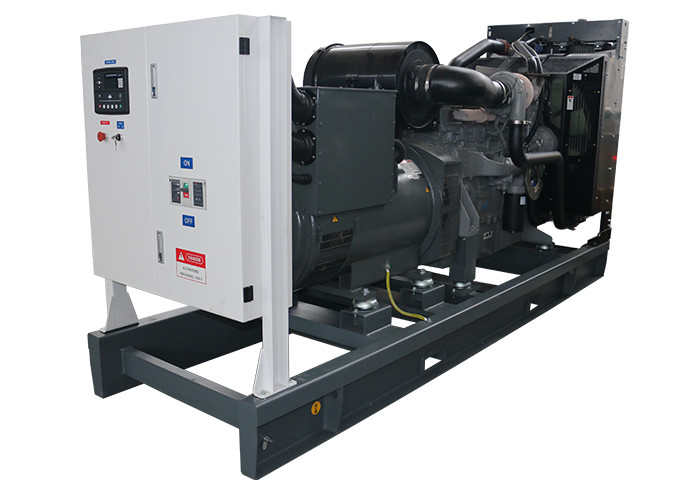

Super Silent Prime Power 200kw / 250kva Water-cooled Perkins Generator Set



Prime Power 200kw/250kva super silent diesel generator with Perkins engine

Technical data
Genset Model PF-P275
Prime Power 200KW/250KVA
Rated Voltage 400/230V
Frequency 50/60Hz
Power Factor 0.8(lagging)
The regulating rate of steady voltage ≤±0.5%
The regulating rate of instantaneous voltage ≤-15%/ +20%
The time of steady voltage ≤1.5sec
The waving rate of voltage ≤1.0%
The regulating rate of steady frequency ≤3%
The regulating rate of instantaneous frequency ≤±10%
The time of steady frequency 3sec
Dimension (L×W×H) (mm) 3000*1000*1700
Genset weight (kg) 2100
Diesel Engine
Brand PERKINS
Model 1106A-44TAG2
Number of Cylinders 6
Rotating Speed 1500RPM
Cycle Four stroke
Type waste gas turbine boost,direct spurting type
Bore×Stroke(mm) 116*136
Displacement(L) 8.7
Lubricating Capacity(L) 28.3
Speed Governor Electrical
Cooling System Water-cooled
Speed Stability (%) ≤5%
Fuel Consumption at 100% Load 220g/kw.h
Starting Method DC24V Electrical starting
Alternator
Brand Stamford
Model UCI 274H
Number of Phase 3
Connecting Type Three Phase and Four Lines
Number of Bearing 1
Grading Protection IP23
Altitude ≤1000m
Exciter Type Brushless (AVR automatic voltage regulating)
Insulation Class H degree
The components of the genset
(1) PERKINS Diesel Engine; (2) Stamford Alternator; (3) Control Panel
Control Panel

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.





Heavy duty world class brand industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
