10KW Small Portable Generators , Electric Starting Generator Set Silent generator
Specifications 10KW SIlent Type Diesel Generator :
| Model |
GD12ST (Silent Type) |
| Genset |
Rated frequency (Hz) |
50 60 |
| Rated voltage (v) |
220-240 |
| Rated power (Kw/kva) |
8.5/8.5 9/9 |
| Max power (Kw/kva) |
9/9 10/10 |
| Rated current (A) |
38.5 41 |
| Phase number |
Single phase |
| Power factor |
1.0 |
| Sockets + Teminal |
2 x 32A |
| Battery (Ah) |
36.0 |
| Fuel tank capacity (L) |
28 |
| Running Time (H) |
8 |
| Noise level dB@7m |
72 |
| Overall dimension (L*W*H)MM |
1300×700×870 |
| N.W/G.W(kg) |
320/345 |
| Engine |
Engine Type |
Diesel |
| Engine Model |
2V88 |
| Rated output(kw/rpm) |
13/3000 14/3600 |
| Structure type |
2-cylinder, V type, 4-stroke, air-cooled |
| Staring system |
Electric Starting |
| Fuel consumption (L/h) |
≤3.5 |
| Displacement (ml) |
870 |
| Oil capacity (L) |
2.5 |
| Alternator |
100% copper, brush type, self-excitation, AVR |
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.

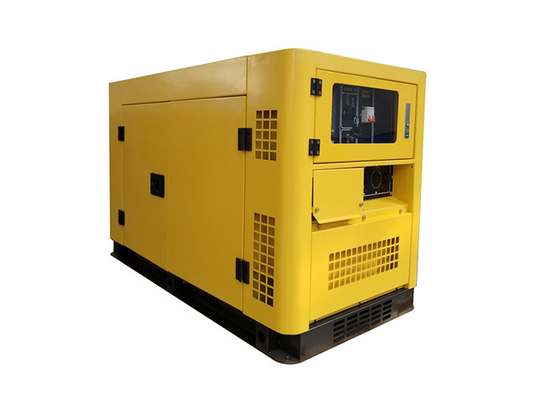

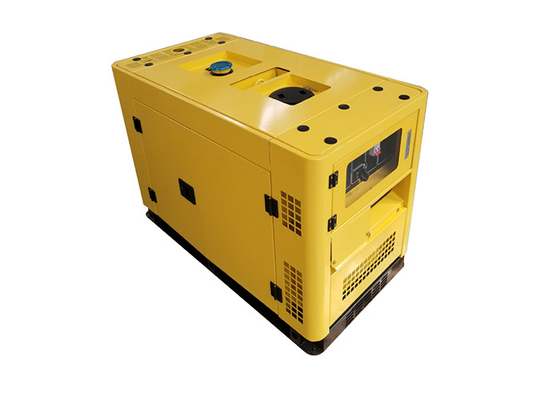

photos of the generator set:
Delivery Time: 30 days after deposite
Package: nude packing or plywooden case
FAQ
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose.
Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
