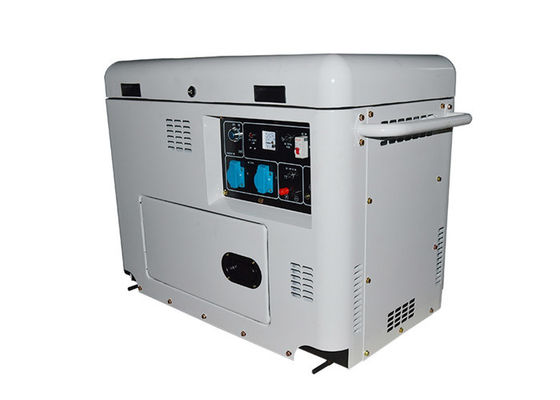

Roof Open 3kw 3kva Silent Small Portable Generators For Home Use , Easy Carry
Mini small 3kva generator price for home use soundprood generators
| Genset |
Model No. |
PD3500 (Open type) |
PD3500T(Silent type) |
| Rated frequency (Hz) |
50/60 |
50/60 |
| Rated voltage (v) |
230 120/240 |
230 120/240 |
| Rated output power(kW) |
3.0 4.0 |
3.0 4.0 |
| Rated rotation speed(rpm) |
3000/3600 |
3000/3600 |
| DC Output |
12v 8.3A |
12v 8.3A |
| Power factor |
1 |
1 |
| Phase number |
Single phase |
Single phase |
| Noise level dB@7m |
85 |
75 |
| Overall dimension (L*W*H)MM |
780x500x650 |
950x560x750 |
| Net weight |
107 |
165 |
| |
|
|
|
| Engine |
Engine type |
178FAE |
178FAE |
| Structure type |
Single cylinder ,
in lined 4 stroke,
air cooled direct injection
|
Single cylinder ,
in lined
4 stroke, air cooled
direct injection
|
| Bore * stroke mm |
86X72 |
86X72 |
| Displacement ml |
418 |
418 |
| Compression ratio |
19:01 |
19:01 |
| Rated output(kw/rpm) |
5.9/3000 6.5/3600 |
5.9/3000 6.5/3600 |
| Lubrication system |
pressure splashed |
pressure splashed |
| Lue oil brand |
Above CD SAE 10W
30 15W 40
|
Above CD SAE 10W
30 15W 40
|
| Staring system |
Recoil starter |
12V Electric starter |
| Starting motor capacity |
12V 0.8KW |
12V 0.8KW |
| Charging generator capacity |
12V 3A |
12V 3A |
| Battery capacity |
12V 36AH |
12V 36AH |
| Fuel consumption rate(g/kw.h) |
3000rpm 276,3600rpm 285 |
3000rpm 276,3600rpm 285 |
| Fuel type |
Diesel 0# or 10# 35# |
Diesel 0# or 10# 35# |
| Fuel tank capacity (L) |
15 |
15 |
| Continuous Running time(H) |
8 |
8 |
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Island, Desert or any place without electricity
4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
5. Emergency power supply
6. Where couldn’t stop power
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Photos
Delivery Time: 30 days after deposite
Package: nude packing or plywooden case
Company Information
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.
