80kw 100kva 6 Cylinder PowerFriend Silent Generator Set , Quiet Diesel Generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Governor Type | ELECTRONIC | Rated Voltage | 220V/380V |
|---|---|---|---|
| Alternator Model | Stamford/ Maccalte/ Powerfriend | Insulation Class | H |
| Protection Class | IP23 | Speed | 1500/1800rpm |
| Waranty | One Year Or 1000hrs | Frequency | 50HZ/60HZ |
| Rated Currency | 144A | Controller | Deepsea/ ComAp/ Smartgen |
| Phase | 3 | Noise Level/dBA | 72 |
| High Light | power generating set,silent diesel generators |
||
Product Description

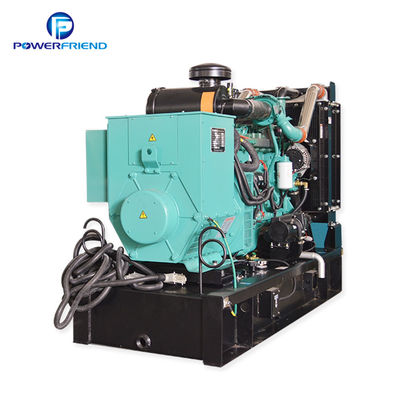

New 80kw 100kva PowerFriend Diesel Stationary Generator
| Specification of PowerFriend Genset | ||
| Genset | Genset Model | PF-DC110 |
| Prime at 50HZ, 40℃ ambient | 80KW/100KVA | |
| Rated Voltage | 220/380V | |
| Rated Frequency (HZ) | 50Hz/60 | |
| Weight | 1750KG | |
| Rated currency | 144A | |
| Circuit Breaker | Delixi/CHINT or Customized | |
| Base fuel tank | At least for 8-hour contunuous running | |
| Controller | Deepsea/ ComAp/ Smartgen | |
| Noise Level/dBA @7m(Silent type only) | 72 | |
| Engine | Engine Brand | DCEC |
| Engine Model | 6BTAA5.9-G2 | |
| Engine Features | 6-cylinder,water cooled ,Turbo | |
| Bore * Stroke | 159mm × 159mm | |
| Displacement | 5.3L | |
| 12-hour Power(kw) | 120KW/1500 | |
| Fuel Consumption L/H | 21.2L/H | |
| Compression Ratio | 16.5:1 | |
| Governor type | ELECTIC | |
| Alternator | Alternator Brand | Stamford/ Maccalte/ Powerfriend |
| Insulation class | H | |
| Protection class | IP23 | |
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
Our Services:
Warranty period is one year or 1000 running hours ( depends on which occurs first). If the failure is caused by trubine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable sapre parts of genset caused by crew wearing parts, consumable parts for daily use, human error, negligence or failure of following the original maintenance manual provisions, etc.
The Reliable Supplier for United Power Friend Solution:
Promise:
BWIN
carry the principal of satisfying the needs of consumers , long term the pure spare parts technical advice supervising installment and Commissioning transport gensets and training operator. After receive the feedback of quality problem, answer the consumer and supply problem solve program in 24 hours. Do our best to supply satisfied service.
System:
I Service before sale
Sales Engineer supply technical advice and auxiliary supervising, such as, choosing type auxiliary generator room design solve the problem come across when use the equipment.
II Service during sale
Supply customer production infomation and arrange shippment for customer.
III Service after sale
1 Supply Engine room design free of Charge
2 Supply installment and Commissioning Guide free of Charge
3 Train the operator and maintain persons free of charge;
4 Perform files for the consumer, in hot persuit of service regular inspection lifelong service.
5 supply the pure spare parts year in market price,
6 Supply technology assistance for your whole life.
Guarantee:
1 Guarantee Period: One years after the date of shipment from the manufacturer's plant or 1000 hours from the manufactured date,which comes first.
2 Repair or Replacement: PowerFriend Warrants to bear any repair or replacement charge under terms of warranty with the defects in design, material and workmanship.
3 Warranty limitation:
1) misuse& Lack of proper maintenance,
2) Not perform operation manual,
3) Generator modified without our Approval or Direction,
4) non-use Genuine parts,
5) Wearing Parts( Engine air filter & Oil filter )
If have any questions, please contact us. Your inquiry would be appreciated.
