Chinese Manufacturer produced 5kw silent power diesel portable generator
| Genset | Model No. | PD6500E (Open type) | PD7500T (Silent type) |
| Rated frequency (Hz) | 50/60 | 50/60 | |
| Rated voltage (v) | 230 120/240 | 230 120/240 | |
| Rated output power(kW) | 6.0 6.2 | 6.0 6.2 | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | |
| DC Output | 12v 8.3A | 12v 8.3A | |
| Power factor | 1 | 1 | |
| Phase number | Single phase | Single phase | |
| Noise level dB@7m | 75 | 75 | |
| Overall dimension (L*W*H)MM | 780x500x650 | 950x560x750 | |
| Net weight | 107 | 165 | |
| Engine | Engine type | 186FAE | 186FAE |
| Structure type | Single cylinder , in lined 4 stroke, air cooled direct injection | Single cylinder , in lined 4 stroke, air cooled direct injection | |
| Bore * stroke mm | 88X86 | 86X72 | |
| Displacement ml | 523 | 418 | |
| Compression ratio | 19:01 | 19:01 | |
| Rated output(kw/rpm) | 6.6/3000 7.3/3600 | 5.9/3000 6.5/3600 | |
| Lubrication system | pressure splashed | pressure splashed | |
| Lue oil brand | Above CD SAE 10W 30 15W 40 | Above CD SAE 10W 30 15W 40 | |
| Staring system | 12V Electric starter | 12V Electric starter | |
| Starting motor capacity | 12V 0.8KW | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | 12V 3A | |
| Battery capacity | 12V 36AH | 12V 36AH | |
| Fuel consumption rate(g/kw.h) | 3000rpm 265,3600rpm 275 | 3000rpm 276,3600rpm 285 | |
| Fuel type | Diesel 0# or 10# 35# | Diesel 0# or 10# 35# | |
| Fuel tank capacity (L) | 15 | 15 | |
| Continuous Running time(H) | 8 | 8 | |
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Household: personal use for house, camping, party, etc
3. Island, Desert or any place without electricity
4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
5. Emergency power generation.
6. Where couldnt stop power need emergency.
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. 14 days delivery time
4. Produce engines / canopy and assemble by ourselves.
5. New design , competitive price
6. Super silent , eacy for maintance
7. Fashion canopy design

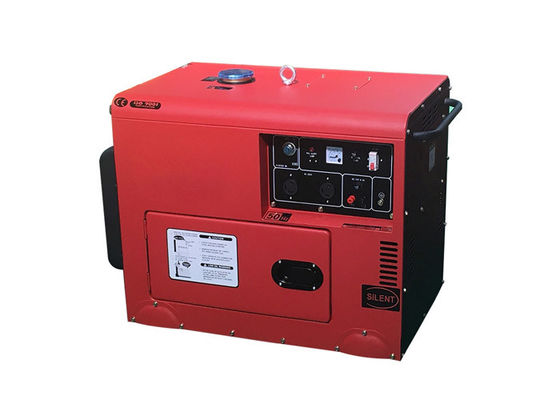

6KVA Super silent portable generator photos:
Delivery Time: 30 days after deposite
Package: nude packing or plywooden case
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Portable Series: 2-12kva, air cooled, 1 or 2 Cylinders, 3000rpm/ 3600rpm
Water Cooled Series: 6-3000kva, water cooled, 3-16 Cylinders, 1500rpm/ 1800rpm
