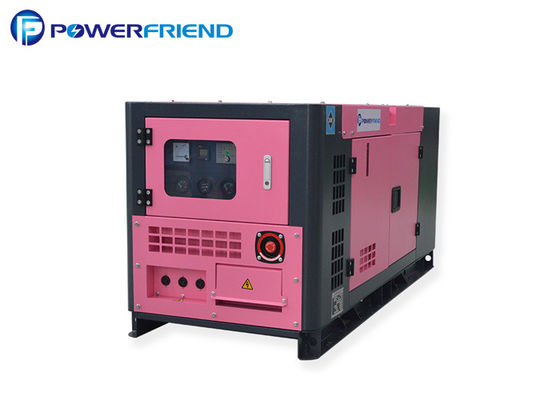

AC Three Phase 20kw 25kva Soundproof Diesel Generator With PERKINS Engine

AC Three Phase 20kw 25kva Soundproof Diesel Generator With PERKINS Engine

  • High Light

    open type genset

    ,

    water cooled generator

  • Output Power
    20KW 25KVA
  • Frequency
    50/60HZ
  • Voltage
    220v - 690v Optional
  • Engine
    Perkins
  • Alternator
    Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
  • Controller
    Deepsea, Smartgen, Harsen For Optional
  • MCCB
    ABB Or Delixi
  • Cooling System
    Water Cooled
  • Genset Type
    Open Type, Silent Typefor Optional
  • ATS
    Optional
  • Color
    Optional
  • Place of Origin
    Jiangsu of China
  • Brand Name
    GPRO
  • Certification
    ISO,CE Certification
  • Model Number
    PF-P28S
  • Minimum Order Quantity
    1 SET
  • Price
    Negotiation
  • Packaging Details
    Plywood or Plastic packing
  • Delivery Time
    15 - 20 working day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    300 Set / Month

AC Three Phase 20kw 25kva Soundproof Diesel Generator With PERKINS Engine



AC three phase 20kw 25kva Soundproof diesel generator with PERKINS engine

parameters:



Model PF-P28S
Rated output(KW) 20kw/25kva
Max.output(KVA)  22kw/28kva
Frequency(HZ) 50
Rated voltage(V) 230/400
Rated current(A) 54.1
Engine Model Perkins 404D-22TG
Cylinder number 4
bore*stroke(mm) 100*115
Fuel consumption(g/kw.h)at full load 230
Compression ratio 19:01
Starting system Electric starter
Rated Rotation Speed(rpm) 1500
Power factor Cos% 0.8
Insulation grade H
Excitation mode self-excitation and cinstant voltage(AVR)
Diamension(L*W*H) 2190*1050*1340
net weight(KG) 1000



AC Three Phase 20kw 25kva Soundproof Diesel Generator With PERKINS Engine 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional

AC Three Phase 20kw 25kva Soundproof Diesel Generator With PERKINS Engine 1

Door panel detail:

AC Three Phase 20kw 25kva Soundproof Diesel Generator With PERKINS Engine 2

Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
