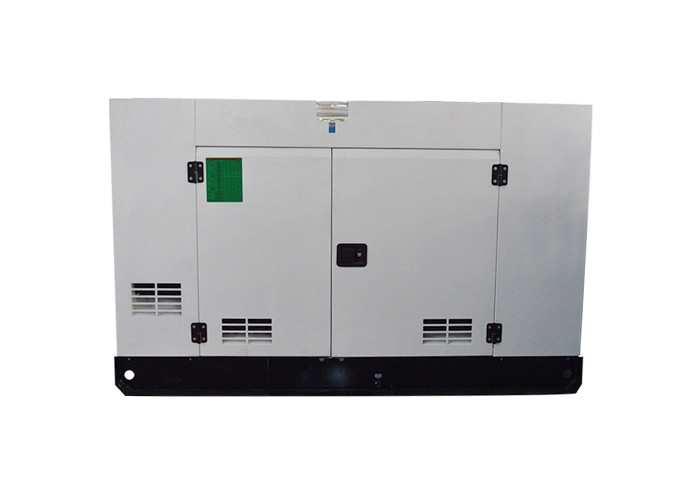

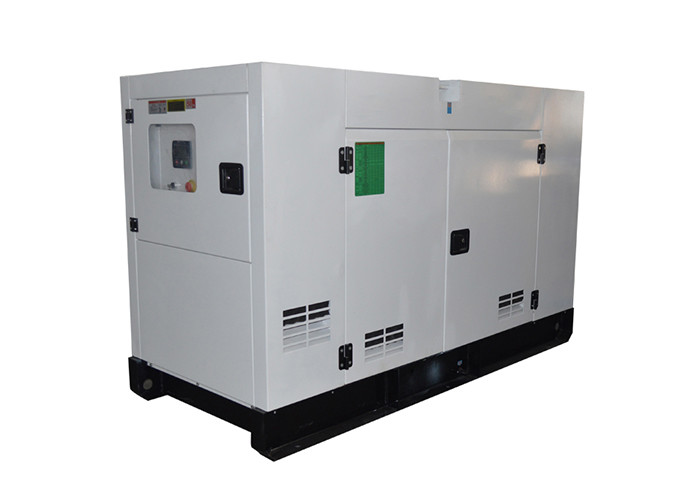

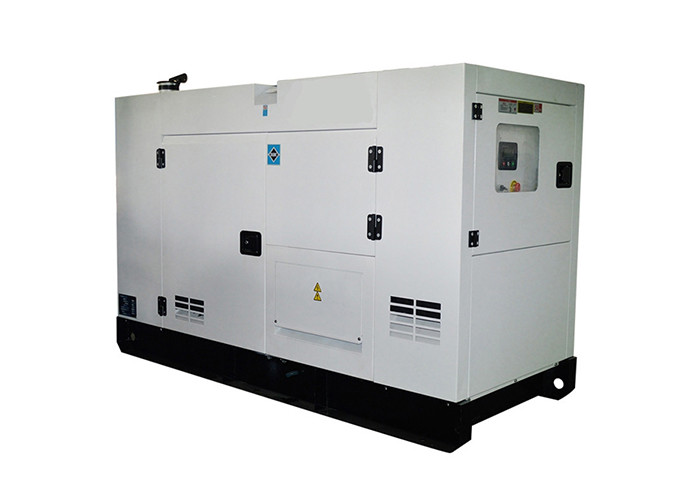

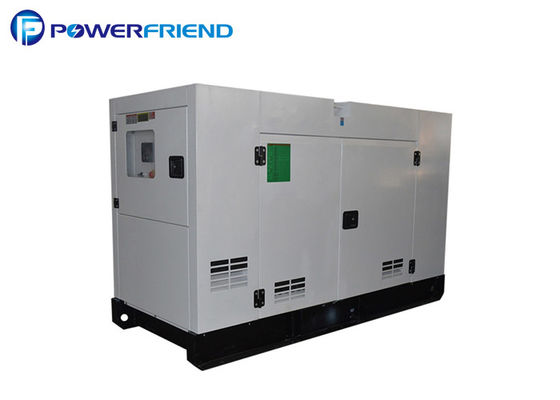

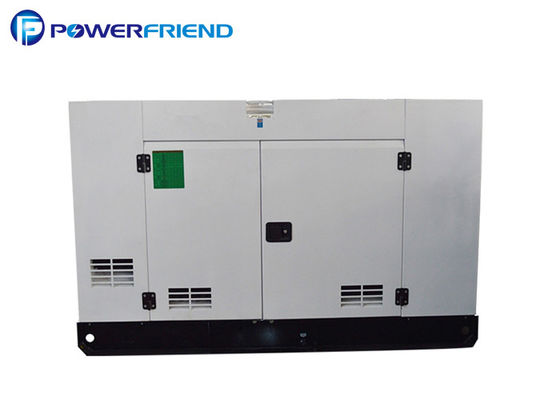

Diesel generaor 50kva 4 Cylinder Super Silent with chinese engine
50KVA / 40KW GENERATOR SPECIFICATION:
|1. SPECIFICATIONS OF GEN-SET|
|1.2||Prime at 50HZ, 40℃ ambient||40KW 50KVA|
|1.3||Standby at 50HZ, 40℃ ambient||44KW 55KVA|
|1.4||Rated Gen-set output||230/400V 50Hz|
|1.5||Rated Relative humidity||≤ 60 %|
|1.6||Dimension (L×W×H)||2500X1000X1355 mm|
|1.8||Fuel consumption 100% prime load||10.6L/h|
|1.9||Noise level at 7 m (Normal/Super)||65dB|
|1.10||Structure of Gen-set||
The Gen-set adopt integrative
engine is fix on high strength
steel basic frame,
anti vibration instrument between
and basic frame, cooling fan have
control cabinet and circuit breaker
installed on Gen-set.
|1.11||Control system (Optional)||
Basic control panel or Advanced
control panel with
automatically start-up function
and other function.
|2. SPECIFICATIONS OF ENGINE|
|2.6||Fuel spray pattern||Direct injection|
|2.7||start-up method||12V, electric|
|2.9||Cooling mode||Radiator cooled (enclose water)|
|2.10||Bore and stroke||100X127 mm|
|2.13||Engine Prime Power at 1500rpm||40KWm|
|2.14||Engine Standby Power at 1500rpm||44KWm|
|2.17||Lubrication oil capacity||8.5L|
|2.18||Coolant capacity – radiator and engine (40℃)||21L|
|2.19||Exhaust temp – full load prime||<600℃|
|2.20||Exhaust gas flow – full load prime||9000m3/h|
|2.21||Exhaust gas back pressure max||25mmHg|
|2.22||Air flow – radiator (40℃ ambient)||1.3 m3/s|
|2.23||Pusher fan head (duct allowance) 40℃||/|
|2.24||Air intake – engine– full load prime||9600m3/h|
|2.25||Standard Air intake temp||25℃|
|2.26||Fuel type||#0 Diesel (Natural temperature)|
Adopt whole changeable lubricating oil,
fuel filter and air filter
Adopt industrial high efficiency silencer
and flexible bellows
|2.29||Engine derating – altitude||
Above the sea-level 1525m high,
a fall of 4% from a rise of 300m.
|2.30||Engine derating – temperature||
Above the ambient temperature 40℃high,
a fall of 2% from a rise of 11%.
|3. SPECIFICATIONS OF ALTENATOR|
|3.2||Alternator Type||A.C. Synchronous|
|3.5||Rated speed||1500 RPM|
|3.6||Voltage regulation mode||Auto|
|3.7||Alternator voltage regulation||±0.5％|
|3.8||Exciting mode||Brushless self exciting|
|3.9||Power factor||0.8 (lagging)|
|3.10||Phase & wires||3 phase 12 wires|
|3.15||Single load step to NFPA110||100%|
|3.17||Max. Ambient Temperature||40℃|
|3.18||Min. Ambient Temperature||- 15℃|
1. Chinese brand- FAWDE engine
2. Alternator: Brushless - Original Stamford / Mecc Alte
3. Controller: Deepsea or Smartgen with or without AMF.
4. Options: remote controller, synchronizing.
5. ATS is optional
6. Type: Soundproof type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
1. Low fuel consumption
2. Good quality engine and alternator
3. Fast delivery. Big quantity of Engines in stock.
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service
What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special reqmy projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
