Low Fuel Consumption Silent 7KW Single Cylinder Small Portable Generators
-
Power(Prime/Standby)7000W /7000KVA
-
Frequency50/60HZ
-
Current15A
-
Voltage220/230/240v
-
Engine192FAE
-
Alternator100% Copper
-
ControllerElectric Start
-
Sound Level/db70dB 7 Meters
-
Warranty1 Year Or 1000 Hours
-
Speed3000rpm / 3600rpm
-
Place of OriginWUXI CITY CHINA
-
Brand NameGPRO
-
CertificationISO9001/ISO14001/CE
-
Model NumberPD8500T
-
Minimum Order Quantity1 SET
-
PriceNegotiation
-
Packaging DetailsCarton box
-
Delivery Time20 days
-
Supply Ability1000 sets / Month
Low Fuel Consumption Silent 7KW Single Cylinder Small Portable Generators
Low Fuel Consumption Silent 7KW Single Cylinder AC Small Portable Generators
7000W small diesel generator specification:
| Genset | Model No. | PD8500E (Open type) | PD8500T (Silent type) |
| Rated frequency (Hz) | 50/60 | 50/60 | |
| Rated voltage (v) | 230 120/240 | 230 120/240 | |
| Rated output power(Kva) | 6.5 7.0 | 6.5 7.0 | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | |
| DC Output | 12v 8.3A | 12v 8.3A | |
| Power factor | 0.8 | 0.8 | |
| Phase number | 3 phase | 3 phase | |
| Noise level dB@7m | 75 | 75 | |
| Overall dimension (L*W*H)MM | 780x500x650 | 950x560x750 | |
| Net weight | 107 | 165 | |
| Engine | Engine type | 192FAE | 192FAE |
| Structure type | Single cylinder , in lined 4 stroke, air cooled direct injection | Single cylinder , in lined 4 stroke, air cooled direct injection | |
| Bore * stroke mm | 92x75 | 92x75 | |
| Displacement ml | 499 | 499 | |
| Compression ratio | 20:1 | 20:1 | |
| Rated output(kw/rpm) | 7.5/3000 8.2/3600 | 7.5/3000 8.2/3600 | |
| Lubrication system | pressure splashed | pressure splashed | |
| Lue oil brand | Above CD SAE 10W 30 15W 40 | Above CD SAE 10W 30 15W 40 | |
| Staring system | 12V Hand starter | 12V Electric starter | |
| Starting motor capacity | 12V 0.8KW | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | 12V 3A | |
| Battery capacity | 12V 36AH | 12V 36AH | |
| Fuel consumption rate(g/kw.h) | 3000rpm 310,3600rpm 320 | 3000rpm 310,3600rpm 320 | |
| Fuel type | Diesel 0# or 10# 35# | Diesel 0# or 10# 35# | |
| Fuel tank capacity (L) | 15 | 15 | |
| Continuous Running time(H) | 8 | 8 | |
Description:
1. Air cooled 1 cylinder diesel engine 192FAE
2. Generator power rated power 7KW
3. Quantity for 20 foot container 32 sets
4. Quantity for 40 foot container 64 sets
5. Noise 65dB 7 meters
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Island, Desert or any place without electricity
4.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
5. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. 10 days delivery time
4. Produce engines / canopy and assemble by ourselves.

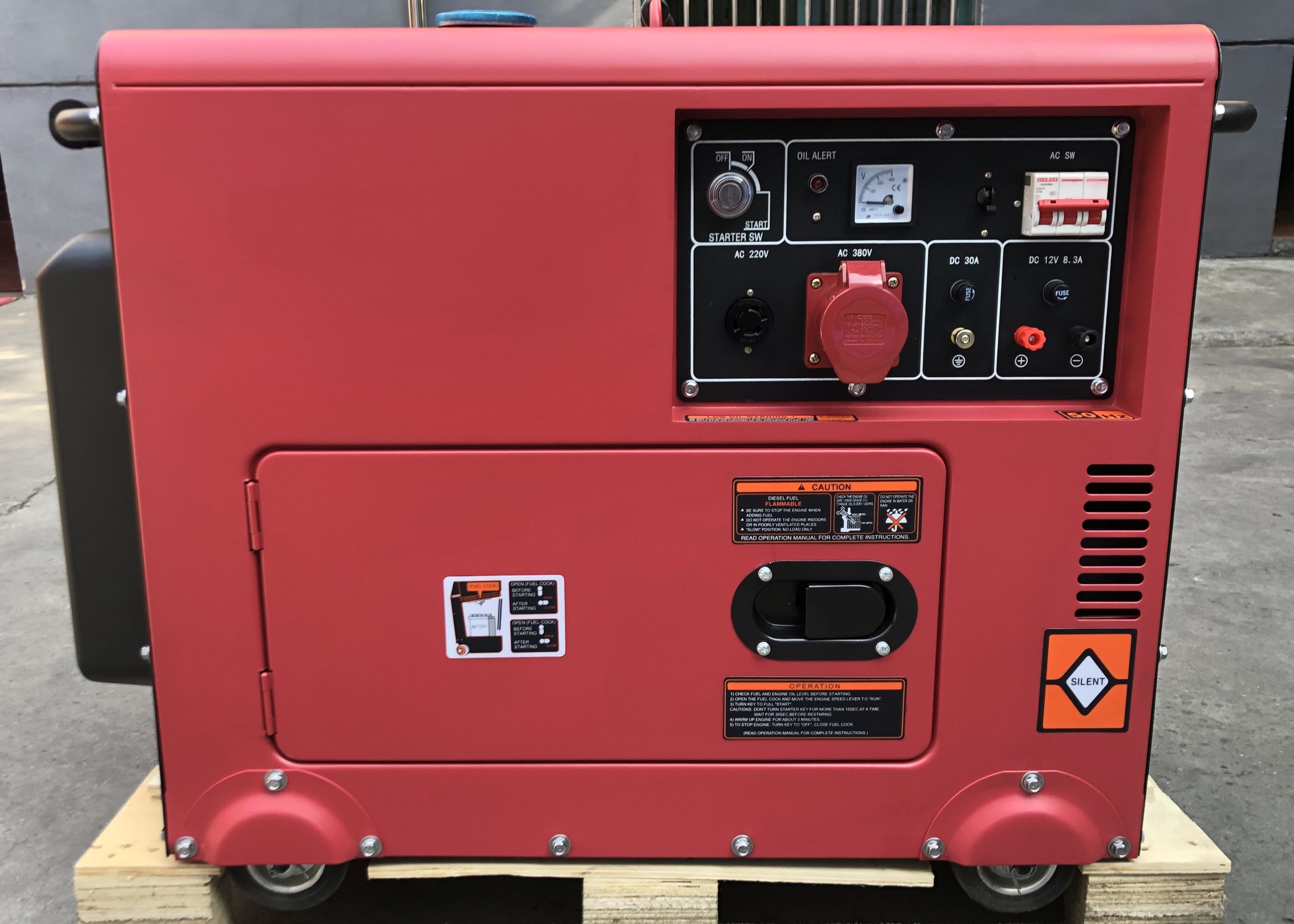

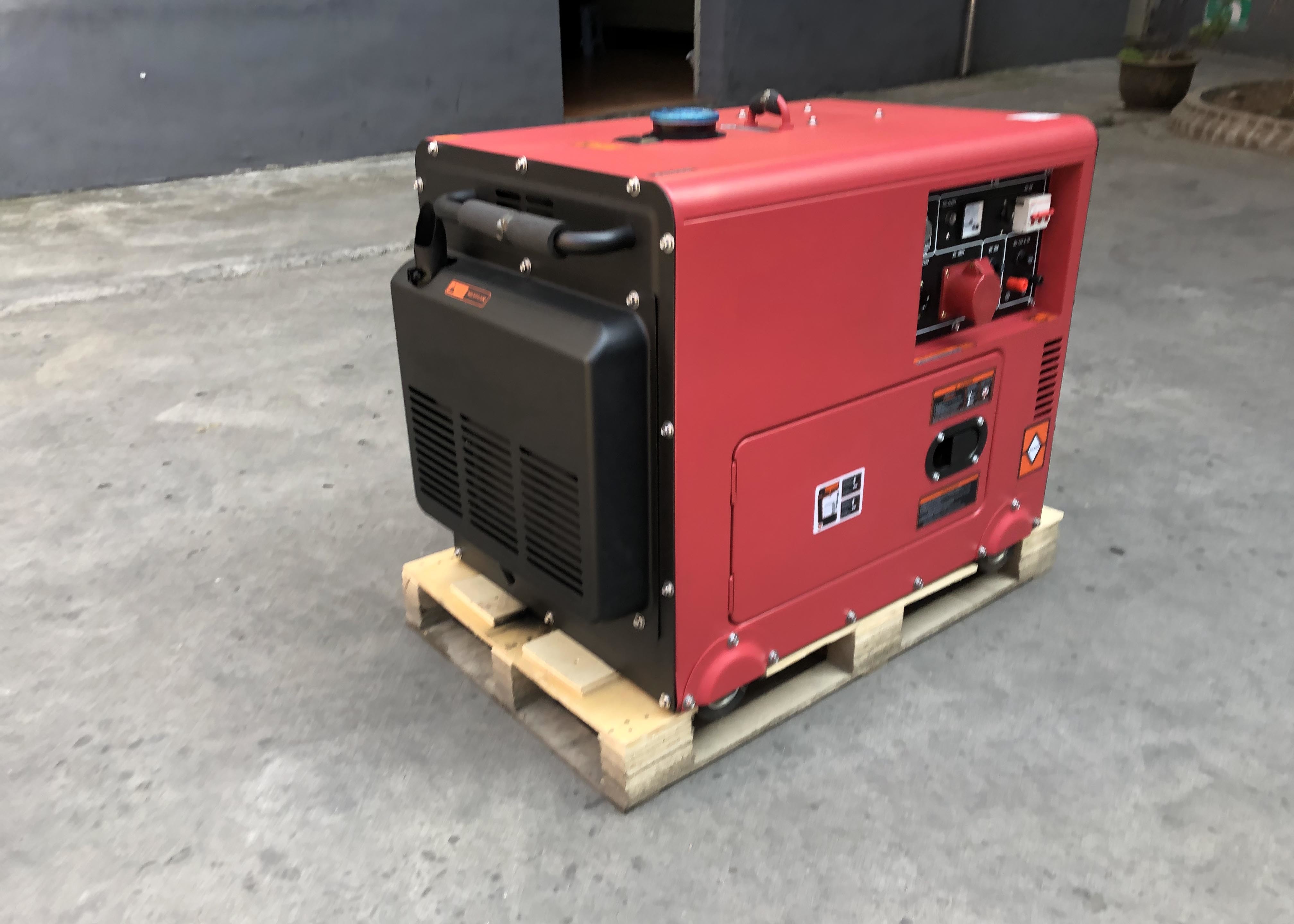

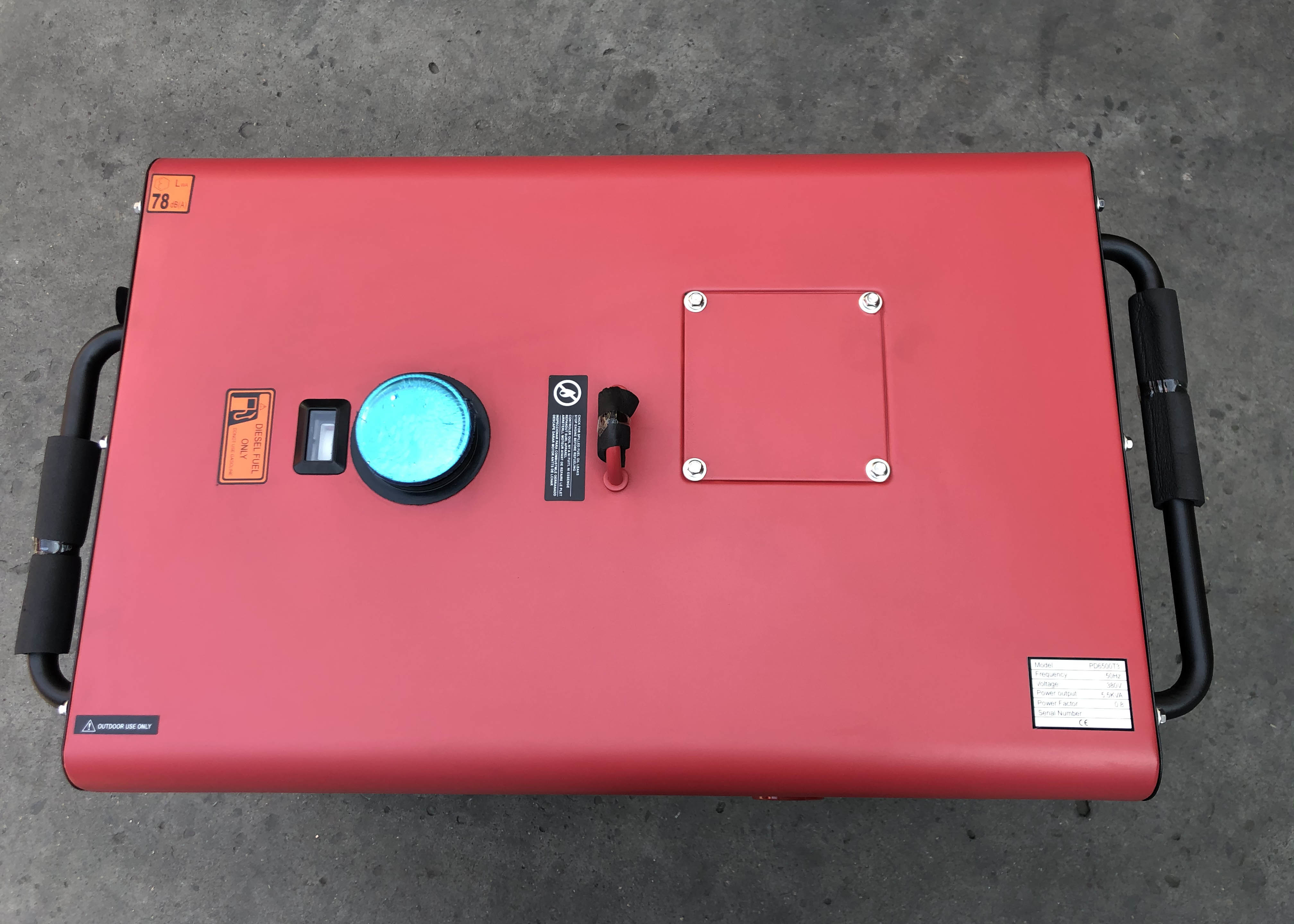

small portable engines photos:
Portable generators assemble workshop:
Our products are sold all over the world, you can rest assured.
