Small Portable Water Pump Generator 2 Inch 3 Inch 4 Inch Hand Start Diesel Generators

Small Portable Water Pump Generator 2 Inch 3 Inch 4 Inch Hand Start Diesel Generators

  • Power(Prime/Standby)
    7KW /7KVA
  • Frequency
    50/60HZ
  • Current
    20A
  • Voltage
    220/230/240v
  • Engine
    192FAE
  • Alternator
    100% Copper
  • Controller
    Electric Start
  • Sound Level/db
    85dB At 7 Meters
  • Warranty
    1 Year Or 1000 Hours
  • Speed
    3000rpm 3600rpm
  • Place of Origin
    WUXI CITY CHINA
  • Brand Name
    GPRO
  • Certification
    ISO9001 / ISO14001 / CE
  • Model Number
    IDF2
  • Minimum Order Quantity
    1 SET
  • Price
    Negotiation
  • Packaging Details
    Carton box
  • Delivery Time
    14 days
  • Supply Ability
    1000 sets / Month

Small Portable Water Pump Generator 2 Inch 3 Inch 4 Inch Hand Start Diesel Generators



Small Portable Water Pump Generator 2 Inch 3 Inch 4 Inch Hand Start Diesel Generators



Diesel water pump selection:



IFANITE
MODEL
  POWER Head Suction,discharge port diameter DIESEL ENGINE WEIGHT DIMENSION FCL
Rated
KW
Max head Max suction head Model N.W. G.W. (L*W*H) 20' 40'
IDF20   2.8 15 8 50(2") ID170F 35 38 520*420*580 220 460
IDF20E 2.8 15 8 50(2") ID170FE 35 38 520*420*580 220 460
IDF30 4.0 13 8 80(3") ID178F 52 55 590*470*600 135 364
IDF30E 4.0 13 8 80(3") ID178FE 52 55 590*470*600 135 364
IDF40 6.3 16 8 100(4") ID186F 69 72 680*500*660 105 219
IDF40E 6.3 16 8 100(4") ID186FE 69 72 680*500*660 105 219



Water pump description



1.Lower consumption, lower noise, lower pollution. Higher efficiency and environmental friendly

2.Strict testing system, stable voltage and frequency

3.Secured ground terminal

4.Stronger automatic startup system, staring within only 1-5s

5.Smart in size, delicate in style, longer service life

6.very diversified and customerized choices



Water pump generators specification:



Mode IDF20 IDF30 IDF40
Suction, discharge port diameter (mm/in) 50/2 '' 80/3'' 100/4''
Discharge capacity (m3/h) 22 30 40
Max head (m) 15 13 16
Max suction (m) 8 8 8
Engine speed (rpm) 3600 3600 3600
Priming time (s/4m) 80 120 180
overall dimension (LxWxH) 520x420x580 590x470x600 680X500X660
Engine type 170F 178F 186F
Rated power kw 2.8 4 6.3
Displacement ML 211 296 406
Net weight kg 35 52 69
Fuel tank capacity L 2.5 3.5 5.5
Fuel consumption ( g/kw.h) 288 285 281



Testing Items of Power Friend Genset:


1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:


1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

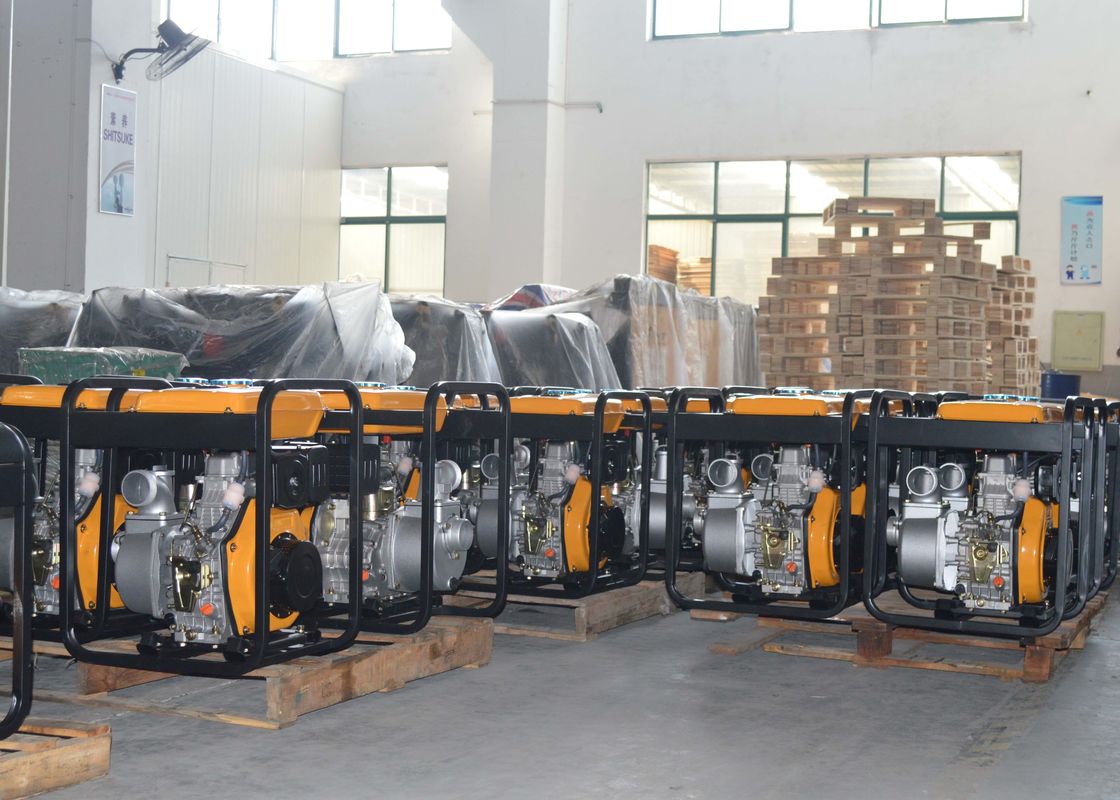

Diesel water pump generators photos:

Small Portable Water Pump Generator 2 Inch 3 Inch 4 Inch Hand Start Diesel Generators 0



Small Portable Water Pump Generator 2 Inch 3 Inch 4 Inch Hand Start Diesel Generators 1
