Diesel Manual Mobile Light Tower metal halide lights with Air cooled
We produce the 186FA engines / alternators by ourself.
We also can produce bigger power mobile light tower generator.
SPECIFICATION:
Tower Light |
|
|
Height of Mast |
6.7M |
|
Power of Lamps |
4*400W Metal Halide, Round |
|
Luminous Flux |
440000lm |
|
Elevation of Mast |
Manual/pneumatic mast |
|
Raising of Mast |
Manual/pneumatic mast |
|
Rotation of Mast |
360°, Manual |
|
Windproof Ability |
< 10M/S |
|
Inclination |
<10 degree |
|
Lampholder |
E40 |
|
Alternator |
|
|
Alternator Type |
Brush, with AVR |
|
AC Frequency |
50Hz |
|
Cont.AC Power |
4.5 kVA |
|
Max.AC Power |
5.0 kVA |
|
AC Voltage |
220, 110/220, 115/230, 120/240V etc. |
|
Phase Number |
Single Phase |
|
Power Factor |
1 |
|
Insulation Class |
F |
|
Engine |
|
|
Engine Type |
Air-cooled, 4-stroke, Diesel, 1-Cylinder |
|
Engine Model |
Chinese engine RD186FAE |
|
Max. Power |
10hp |
|
Displacement |
418cc |
|
Engine Speed |
3000rpm |
3600rpm |
Fuel Capacity |
33.5L (top tank) |
|
Oil Capacity |
1.65L |
|
Fuel Consumption |
270 g/kw.h |
|
Full Tank Operating |
50hr(4*400W), 25hr(4*1000W) |
|
Fuel Model |
0#(Summer),-10#(Winter) |
|
Lube Model |
SAE 10W 30(Above CC Grade) |
|
Start System |
Electric |
|
Noise at 7M |
70 db(A) |
|
Trailer |
|
|
Towing |
Ring or Ball Hitch |
|
Tyre Diameter |
500MM |
|
Stablizing Legs |
4 pcs, Manual |
|
Suspension System |
Leaf Spring Axle |
Description:
Net weight : 375kg
Gross Weight: 435kgs
Packing size: 2340x1120x1100mm
20 GP loading Quantity 10 units (14 for bulk packing)
40 HQ loading Quantity 20 units (28 for bulk packing)
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Football field , basket ball field, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. Short delivery time
4. Produce engines / canopy and assemble by ourselves.
5. Stable quality warranty

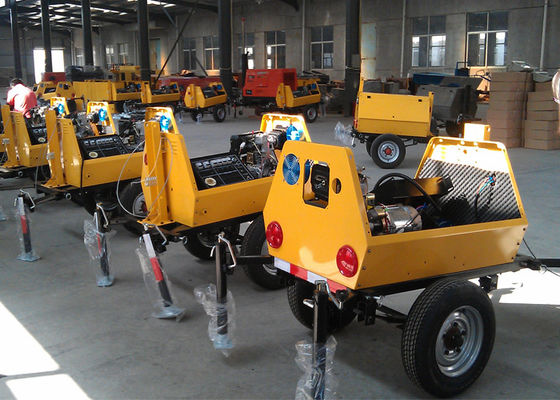

Mass products photos:
