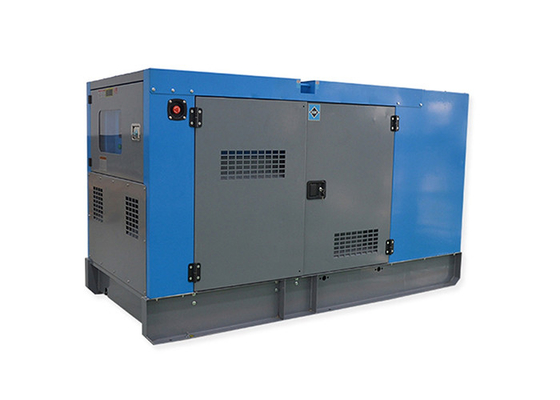

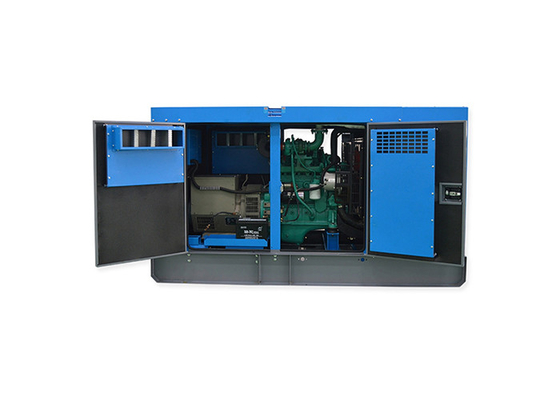

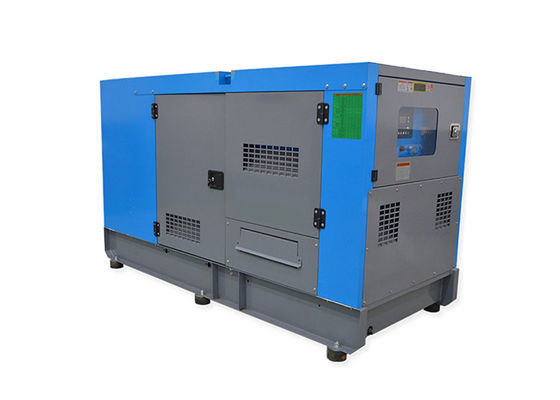

Silent Diesel backup power generator with FAW Xichai Engine , 30kw diesel generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 30KW | Frequency | 50/60HZ |
|---|---|---|---|
| Voltage | 220v - 690v Optional | Engine | Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional |
| Alternator | Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional | Controller | Deepsea, Smartgen, Harsen For Optional |
| MCCB | ABB Or Delixi | Cooling System | Water Cooled |
| Genset Type | Open Type, Silent Type, Container Type, Trailer Type For Optional | ATS | Optional |
| High Light | diesel silent generator,diesel genset |
||
Product Description
Silent Diesel backup power generator with FAW Xichai Engine , 30kw diesel generator
|
Generator Model |
PF-F37 |
|
Prime power (KW) |
37kVA / 30kW |
|
Standby power (KW) |
41kVA / 33kW |
|
Engine Data |
|
|
Engine model |
FAW 4DX22-50D |
|
Engine filter system |
Dry air filter type, Fuel filters, Lube filter |
|
Compress ratio |
16:1 |
|
Bore * stroke (mm) |
105 * 120 |
|
100% load fuel consump.(L/h) |
9.5 |
|
Lubricating oil consump(g/kwh) |
Less than 1.36 |
|
Exhaust air flow (m3/min) |
120 |
|
Air consumption (m3/min) |
9 |
|
Exhaust gas temperature (°C) |
500 |
|
Oil capacity (L) |
95 |
|
Alternator Data |
|
|
Alternator Model |
Wattek 184H |
|
Connecting type |
3 Phase and 4 Wires, “Y” type connecting |
|
Protection grade |
IP22 |
|
Insulation class |
H/H |
|
Exciter type |
Brushless, self-exciting, with AVR |
|
Generator Data |
|
|
Size(mm) |
1900*900*1100 |
|
Weight(kg) |
980 |
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
