Water cooled Silent Type 125KVA 100kw diesel generator / cummins diesel genset

  • Water cooled Silent Type 125KVA 100kw diesel generator / cummins diesel genset
Place of Origin Jiangsu of China
Brand Name Power Friend
Certification ISO,CE Certification
Model Number PF-F125
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power 100KW Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

industrial diesel generators

,

diesel genset
Leave a Message
Product Description

 Water cooled Silent Type 125KVA 100kw diesel generator / cummins diesel genset



Technical Specification for AC Diesel Generator
1   Parameters Unit Expected Value
  1.1 Prime power kVA / kW 125 / 100
  1.2 Overload Capacity   110% of rated capacity
  1.3 Nominal Voltage V AC 3-Phase, 380V, 50 Hz
  1.4 Voltage Regulation % < 5
  1.5 Start Battery V DC 12 V ( min 60 AH)
  1.6 Fuel   Diesel
  1.7 Operating Temp. Range Deg C - 5 to 60
  1.8 Fuel Consumption @ Maximum KW Load Liter/Hr 26.7
  1.9 Noise dBA <=80@ 1Mtr
2   Engine
  2.1 Operating Speed   1500 rpm
  2.2 Cooling   Liquid Cooled / water cooled
  2.3 Fuel Tank Capacity (Inbuilt) Liter 150 Liter
  2.4 Periodic Maintenance Schedule Hours >= 200
  2.5 Number of cylinder & stroke No 6
Engine colling system Type Water cooled
Base frame should have anti vibration mounting pads ensuring complete vibration isolation of the rotating assemblies level of thickness pad thickness should be sufficinet
    Manufacturer Brand FAW   6DF2-19
    Emergency Stop
3   Alternator
  3.1 Design   Brushless single bearing, revolving field
  3.2 Exictor type   Self excited
  3.4 Alternator Cooling   Direct drive centrifugal blower fan
  3.5 AC Waveform Total Harmonic Distortion   No load < 1.5%. Non distorting balanced,linear load < 5%
  3.6 Manufacturer   Stamford  274E

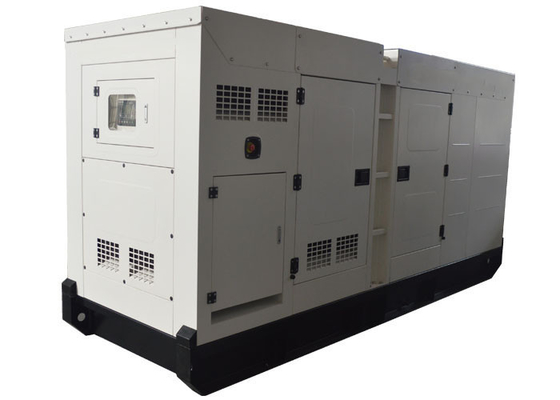

Water cooled Silent Type 125KVA 100kw diesel generator / cummins diesel genset 0

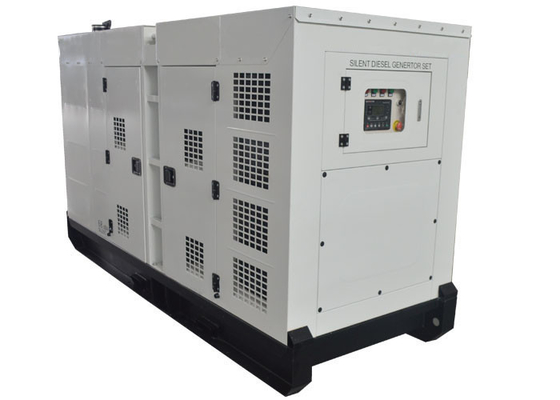

Water cooled Silent Type 125KVA 100kw diesel generator / cummins diesel genset 1


Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card

Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours

If have any questions, please contact us. Your inquiry would be appreciated.
