Household home diesel generator Set by FAW Engine 20kva 16kw

Place of Origin Jiangsu of China
Brand Name POWER FRIEND
Certification ISO,CE Certification
Model Number PF-F20
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power 16KW 20KVA Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

industrial diesel generators

,

diesel genset

Leave a Message
Product Description

Household  home diesel generator  Set by FAW Engine 20kva 16kw





Genset

Model Number

 PF-F20

Prime Power

20/16(KVA/KW)

Standby Power

21/17(KVA/KW)

Frequency

50HZ

Phase Number

3

Power factor

0.8 COSØ

Rated Voltage

400/230V

Net Weight

400KG

Dimension(L*W*H)(mm)

1800*750*800







Engine

Engine Mode

 4DW81-23

Engine Speed

1500 RPM

Fuel Consumption   (G/KW.H)

245

Cylinder Number

4L

Bore/Stroke

90*100 mm

Displacement

2.545L





Alternator

Alternator model

Wattek 184E

Starting Mode

24V Electric Starting

Run Time (50% Load)

10-12 hours

Coupling

SAE Disc-coupling

Phase/Poles

3 Phase 4 Wire

Excitation

Brushless, self-excited, AVR regulation

Insulation System

Class H

Protection Class

IP23

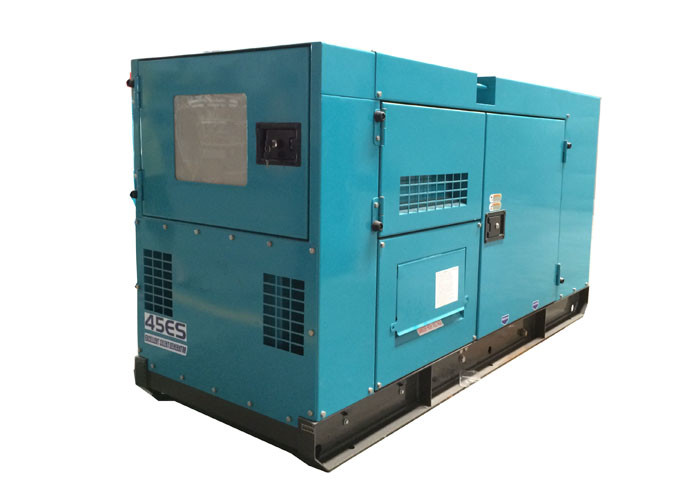

Household  home diesel generator  Set by FAW Engine 20kva 16kw 0

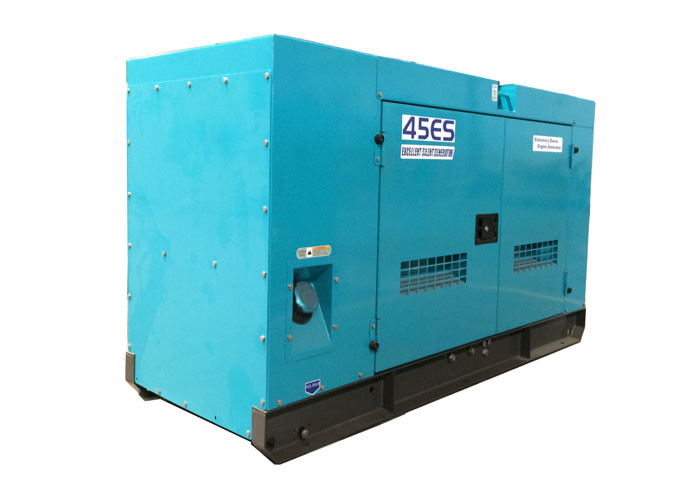

Household  home diesel generator  Set by FAW Engine 20kva 16kw 1




Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card

Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours


If have any questions, please contact us. Your inquiry would be appreciated.
