Copy stamford genset silent generator set noise 78dB 7 meters 400KVA 440KVA
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 400KVA | Frequency | 50HZ / 60HZ |
|---|---|---|---|
| Current | 800A | Voltage | 220/380V |
| Engine | ITALY FPT IVECO/ CURSOR13TE2A | Alternator | Copy Stamford / 164B |
| Controller | Smartgen / DeepSea | MCCB | Delixi /ABB |
| Sound Level/db | 78dB 7 Meter | Warranty | 1 Year Or 1000 Hours |
| High Light | industrial generators,silent diesel generators |
||
Product Description

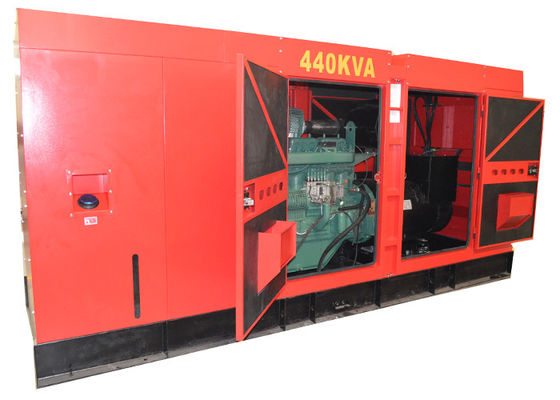

Copy stamford genset silent generator set noise 78dB 7 meters 400KVA 440KVA
SPECIFICATION:
| Genset Model | B-IV400S |
| Prime Power | 300KW/375KVA |
| Standby Power | 330KW/413KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 800A |
| Genset Structure | SILENT |
| Noise Level | 78 dBA@7m |
| Dimension | 4300X1600X1800MM |
| Net Weight | 4000KG |
| Engine Model | FPT IVECO / CURSOR13TE2A |
| Engine Features | 6-cylinder,4 stroke,water cooled |
| Bore * Stroke | 135*150 |
| Displacement | 12.9L |
| 12-hour Power(kw) | 400kw/1500 |
| Fuel Consumption 100% | 81.3l/h |
| Compression Ratio | 17:1 |
| Starting Mode | Electric Starter 24V |
| Fuel Tank Capacity | 500L |
| Alternator Model | MECC /ECO40-1S/4 |
| Rated Power | 320KW/400KVA |
| Max Power | 352KW/440KVA |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 6120 | intelligent and network techniques is |
Description:
1. Chinese brand- Euro Italy IVECO FPT
2. Alternator: Mecc alte / Stamford
3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.
4. ATS cabinet
5. Type: Soundproof type, weather proof, Trailer type
6. Color: red color
7. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. User friendly with low emissions
2. More power reserve, better performance
3. Fast delivery. Big quantity of Engines in stock.
4. Good parts commonality
5. Original EURO ITALY engine , good quality , good price.
Mass generators photos:
