Emergency yanmar genset 60KVA / yanmar marine diesel generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 48KW | Frequency | 50/60HZ |
|---|---|---|---|
| Voltage | 220v - 690v Optional | Engine | Yanmar |
| Alternator | Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional | Controller | Deepsea, Smartgen, Harsen For Optional |
| MCCB | ABB Or Delixi | Cooling System | Water Cooled |
| Genset Type | Open Type, Silent Type, Container Type, Trailer Type For Optional | ATS | Optional |
| High Light | yanmar genset,electric diesel generator |
||
Product Description

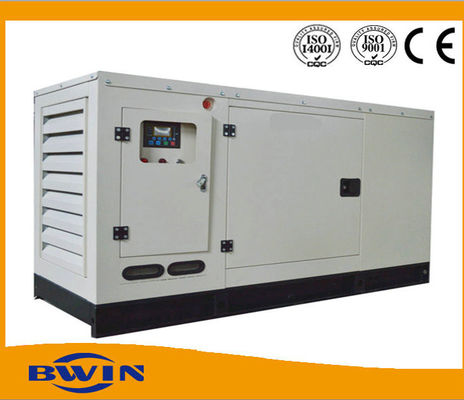

Emergency yanmar genset 60KVA / yanmar marine diesel generator
MODEL | PF-Y60 |
PRIME POWER (KVA/KW) | 60/48 |
STANDBY POWER(KVA/KW) | 66/52.8 |
Rated voltage(V) | 400/230 |
Rated speed(rpm) | 1500 |
Rated frequency(Hz) | 50 |
Power factor | 0.8 |
Ambient temperature(°C) | 40 |
Altitude(m) | 1000 |
Connection type | 3 phase 4 wires |
ENGINE MANUFACTURER | JAPAN YANMAR |
Model | 4TNV106T-GGE |
Rated Power(kW) | 56 |
No. of cylinders & configuration | In-Line 4 cylinders |
Method of operation | 4-stroke |
Speed regulation | Electric governor |
Starting system | DC 12V Electronic start |
Cooling method | Closed-circuit cooling system |
Total displacement(L) | 4.412 |
Compression ratio | 18.0:1 |
Bore×Stroke(mm) | 106*125 |
100% Load fuel consumption(L/h) | ≤11 |
ALTERNATOR MANUFACTURER | STAMFORD |
Number of Phase | 3 |
Connection Type | 3Phase and 4Wires |
Number of Bearing | 1 |
Power Factor | 0.8 |
Protection Grade | IP23 |
Terminal | 12 |
Winding/ Pitch | 100% Copper 2/3 Pitch |
Cooling Fan | Cast alloy aluminum |
Exciter Type | Brushless, Self-Exciting |
Insulation Class, Temperature Rise | H/H |
Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
Voltage Regulation, Steady State | ≤±1% |
Sustained Short-Circuit Current | 300%(3 in):10s |
CONTROL SYSTEM | UK DEEP SEA SERIES |
3/5/6kw available,silent generator, single or three phase
having timer, remote control , ATS, battery, wheel, handle, digital control panel, preheater etc as options.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
