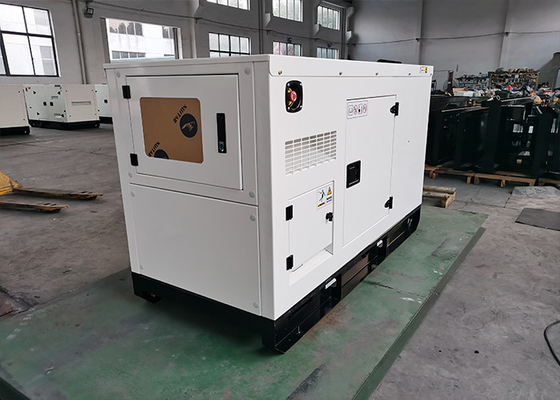

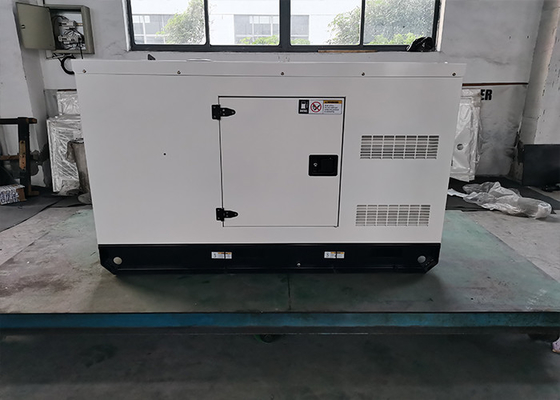

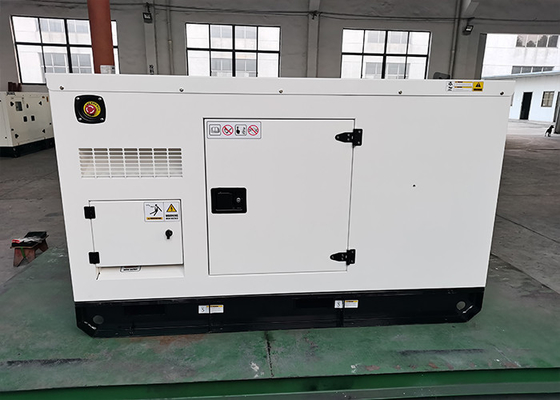

ABB or Delixi YangDong Diesel Generator 31KVA 25KW Silent type
Powered by Yangdong Engine
Range: 10kva to 99kva
MAIN TECHNICAL PARAMETER/ 50HZ 3PHASES, 1500RPM 400/230V | |||||||||||
GENSET MODEL | Prime Power | Standby power | Engine | Fuel Consumption (L/h) | Silent Type Generator | ||||||
KVA | KW | KVA | KW | Model | No.Cylinder | Governor | Dimention L×W×H(mm) |
Weight (KG) |
Sound Level at 7m (dBA) | ||
GP11YD | 10 | 8 | 11 | 9 | YD380D | 3.L | M | 3.5 | 1680×760×1050 | 580 | 68 |
GP14YD | 13 | 10 | 14 | 11 | YD480D | 4.L | M | 4.5 | 1800×800×1140 | 665 | 70 |
GP19YD | 17 | 14 | 19 | 15 | YND485D | 4.L | M | 5.0 | 1900×800×1140 | 760 | 70 |
GP25YD | 22 | 18 | 24 | 19 | YSD490D | 4.L | M | 6.3 | 1900×800×1140 | 785 | 70 |
GP30YD | 27 | 22 | 30 | 24 | Y495D | 4.L | M | 7.8 | 1960×800×1140 | 820 | 70 |
GP34YD | 31 | 25 | 34 | 27 | Y4102D | 4.L | M | 9.5 | 2200×1000×1320 | 1000 | 71 |
GP42YD | 38 | 30 | 42 | 33 | Y4105D | 4.L | M | 10.8 | 2200×1000×1320 | 1045 | 71 |
GP55YD | 50 | 40 | 55 | 44 | Y4102ZLD | 4.L | M | 16.1 | 2360×1000×1420 | 1200 | 72 |
GP62YD | 56 | 45 | 62 | 49 | Y4105ZLD | 4.L | E | 16.1 | 2360×1000×1420 | 1250 | 72 |
GP69YD | 63 | 50 | 69 | 55 | Y4EZLD | 4.L | E | 16.1 | 2360×1000×1420 | 1290 | 72 |
GP88YD | 80 | 64 | 88 | 70 | Y4110ZLD | 4.L | E | 19.6 | 2460×1000×1500 | 1530 | 72 |
MAIN TECHNICAL PARAMETER/ 60HZ 3PHASES, 1800RPM 440/254V | |||||||||||
GENSET MODEL | Prime Power | Standby power | Engine | Fuel Consumption (L/h) | Silent Type Generator | ||||||
KVA | KW | KVA | KW | Model | No.Cylinder | Governor | Dimention L×W×H(mm) |
Weight (KG) |
Sound Level at 7m (dBA) | ||
GP13YDX | 12 | 10 | 13 | 11 | YD380D | 3.L | M | 3.5 | 1680×760×1050 | 580 | 68 |
GP18YDX | 16 | 13 | 18 | 14 | YD480D | 4.L | M | 5.0 | 1800×800×1140 | 665 | 70 |
GP22YDX | 20 | 16 | 22 | 18 | YND485D | 4.L | M | 6.0 | 1900×800×1140 | 760 | 70 |
GP28YDX | 25 | 20 | 28 | 22 | YSD490D | 4.L | M | 6.9 | 1900×800×1140 | 785 | 70 |
GP34YDX | 31 | 25 | 34 | 27 | Y495D | 4.L | M | 8.6 | 1960×800×1140 | 820 | 70 |
GP42YDX | 38 | 30 | 42 | 33 | Y4102D | 4.L | M | 10.5 | 2200×1000×1320 | 1000 | 71 |
GP50YDX | 45 | 36 | 50 | 40 | Y4105D | 4.L | M | 11.9 | 2200×1000×1320 | 1045 | 71 |
GP61YDX | 55 | 44 | 61 | 48 | Y4102ZLD | 4.L | M | 15.6 | 2360×1000×1420 | 1200 | 72 |
GP69YDX | 63 | 50 | 69 | 55 | Y4105ZLD | 4.L | E | 17.7 | 2360×1000×1420 | 1250 | 72 |
GP77YDX | 70 | 56 | 77 | 62 | Y4EZLD | 4.L | E | 19.4 | 2360×1000×1420 | 1290 | 72 |
GP99YDX | 90 | 72 | 99 | 79 | Y4110ZLD | 4.L | E | 21.6 | 2460×1000×1500 | 1530 | 72 |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
