Electric start small portable generators with ATS diesel power 6kw
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 6KW/6.2KW | Frequency | 50/60HZ |
|---|---|---|---|
| Current | 15A | Voltage | 220/230/240v |
| Engine | 188F | Alternator | 100% Copper |
| Controller | Electric / Hand Start | Sound Level/db | 68dB |
| Warranty | 1 Year Or 1000 Hours | Speed | 3000rpm 3600rpm |
| High Light | silent portable generator,portable electric generator |
||
Product Description

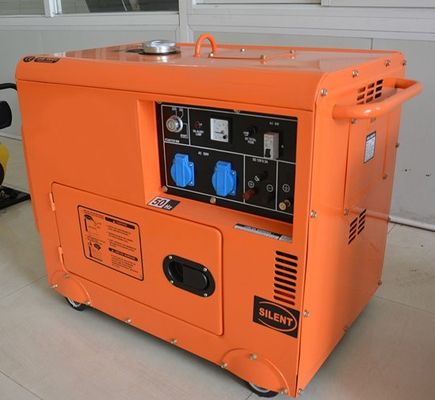

Electric start small portable generators with ATS diesel power 6kw
SPECIFICATION:
| Model NO. | BDG7000E | |
| Generator set |
Rated frequency(Hz) | 50/60 |
| Rated voltage(V) | 220V | |
| Rated current(A) | 19.6 41.7/20.8 | |
| Rated output power(kW) | 6KVA/6.2KVA | |
| Rated rotation speed(rpm) | 3000/3600 | |
| DC output | 12V 8.3A | |
| Power factor(cosφ) | 1 | |
| Phase number | Single phase | |
| Noise level[dB(A)@7m] | 75-77 | |
| Overall dimension(L*W*H)[mm] | 780X500X650 | |
| Net weight(kg) | 107 | |
| Engine | Engine type | 188FAE |
| Structure type | Single cylinder, in-lined,4-stroke, air cooled, direct injection |
|
| Bore*stroke[mm(in)] | 88X86 | |
| Displacement[ml(cu. in)] | 523 | |
| Engine speed(rpm) | 3000/3600 | |
| Compression ratio | 19:1 | |
| Rated output power[kW/rpm] | 6.6/3000 , 7.3/3600 | |
| Lubrication system | Pressure splashed | |
| Lube oil brand | Above CD SAE 10W-30,15W-40 | |
| Starting system | 12 V Electric starter | |
| Starting motor capacity | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | |
| Battery capacity | 12V 36AH | |
| Fuel consumption rate[g/kW.h] | 3000rpm: 265 , 3600rpm: 275 | |
| Fuel type | Diesel 0#(summer)or-10#(winter),-35#(cold) | |
| Fuel tank capacity(L) | 15 | |
| Continuous running time(H) | 8 |
With ATS (auto tranfer switch), when city power fail , the generators will start auto.
The ATS box is outside.
Description:
1. Air cooled 188FA diesel engine
2. Generator power rated power 6kw
3. Electric start or Hand start
4. 100% copper
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Island, Desert or any place without electricity
4.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. 14 days delivery time
4. Produce engines / canopy and assemble by ourselves.
Workshop small portable generators photos:
