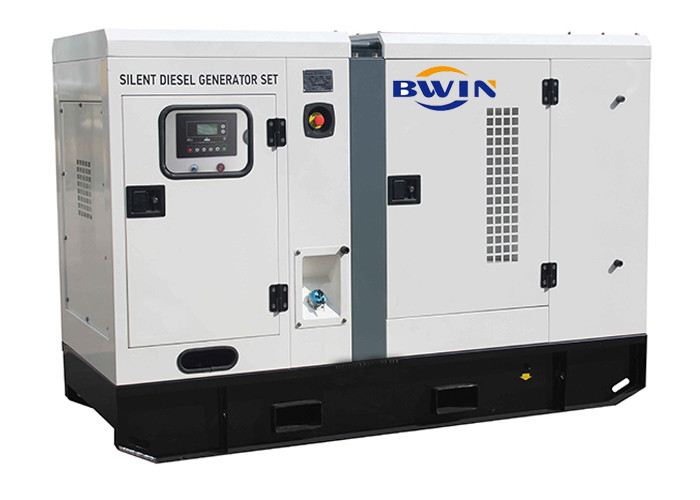

YangDong 30kva super silent diesel generator set with EPA certificate
30kva 24kw YangDong diesel power generator specification:
| 1. SPECIFICATIONS OF GEN-SET |
| 1.1 |
Set Model |
GP33YDS |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
24KW 30kVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
26KW 33kVA |
| 1.4 |
Rated Gen-set output |
230/400V 50Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) |
1760×650×1050mm |
| 1.7 |
Weight |
580kg |
| 1.8 |
Fuel consumption 100% prime load |
≤238g/kWh |
| 1.9 |
Structure of Gen-set |
The Gen-set adopt integrative structure,
engine is fix on high strength
steel basic frame, anti vibration
instrument between the engine
and basic frame, cooling fan
have protecting cap, control
cabinet and circuit breaker
installed on Gen-set
|
| 1.10 |
Control system (Optional) |
Basic control panel or
Advanced control panel
with automatically start-up
function and other function
|
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
YANG DONG |
| 2.2 |
Engine Model |
Y4102 |
| 2.3 |
Governor/Class |
Mechanical |
| 2.4 |
Cylinder NO. |
4 |
| 2.5 |
Engine build |
Line |
| 2.6 |
Start-up method |
24V,electric |
| 2.7 |
Battery capacity |
70~100A/hr |
| 2.8 |
Fuel spray pattern |
Direct spray |
| 2.9 |
Aspiration |
Natural |
| 2.10 |
Cooling mode |
Radiator cooled
(enclose water)
|
| 2.11 |
Bore and stroke |
102 × 118mm |
| 2.12 |
Compression ratio |
18.8:1 |
| 2.13 |
Displacement |
3.857L |
| 2.14 |
Engine Prime Power at 1500rpm |
32kWm |
| 2.15 |
Engine Standby Power at 1500rpm |
35kWm |
| 2.16 |
Fuel type |
#0 Diesel
(Natural temperature)
|
| 2.17 |
Filter system |
Adopt whole changeable
lubricating oil, fuel filter
and air filter
|
| 2.18 |
Exhaust system |
Adopt industrial high
efficiency muffler and ripple pump
|
| 2.19 |
Engine derating – altitude |
Above the sea level
1525m high, a fall
of 4% from a rise of 300m.
|
| 2.20 |
Engine derating – temperature |
Above the ambient
temperature 40℃ high,
a fall of 2% from a rise of 11%.
|
| 3. SPECIFICATIONS OF ALTENATOR |
| 3.1 |
Alternator Model |
Stamford/PI 144G |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
50HZ |
| 3.5 |
Rated speed |
1500 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5％ |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.10 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated current |
45.1A |
| 3.12 |
Efficiency |
86.20% |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP23 |
| 3.15 |
Single load step to NFPA110 |
100% |
| 3.16 |
Standards |
IEC34-1,NEMA1 |
| 3.17 |
Ambient Temperature |
40℃ |
| 3.18 |
Relative humidity |
- 15℃ |
| 3.19 |
Altitude |
1000m |
| 3.20 |
Weight |
172㎏ |
Description:
1. Rated power: 30KVA/24KW
2. Max power: 33KVA/26KW
3. Engine: Chinese famous engine -- YangDong
4. Alternator: Genuine Stamford, Marathon, Meccalte, etc
5. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing
6. ATS is optional, including ABB/ SOCOMMEC and Chinese AISKAI and so on brand
7. Type: Open type, Soundproof type, Trailer type, Container type, etc
8. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
10. Big OEM of Perkins /Cummins engines and Stamford alternators
