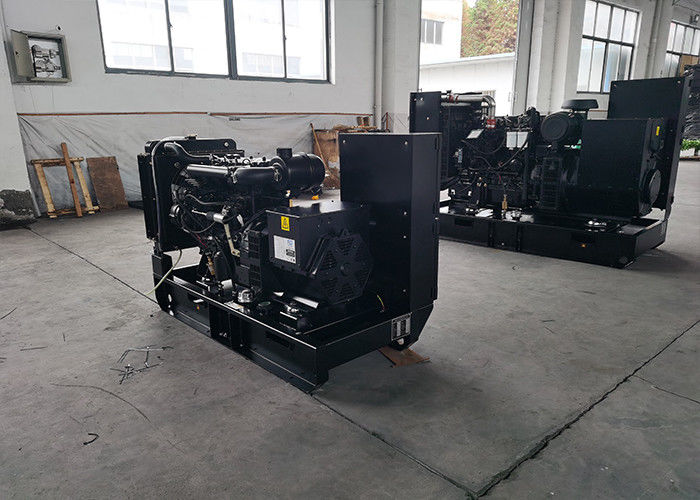

27kva China YangDong Diesel Generator Open type generator with YangDong engine
-
High Light
yanmar genset
,electric diesel generator
-
Output Power10kva-99kva
-
Frequency50/60HZ
-
Voltage220v - 690v Optional
-
EngineYangDong
-
AlternatorStamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
-
ControllerDeepsea, Smartgen, Harsen For Optional
-
MCCBABB Or Delixi
-
Cooling SystemWater Cooled
-
Genset TypeOpen Type, Silent Type, Container Type, Trailer Type For Optional
-
ATSOptional
-
Place of OriginJiangsu of China
-
Brand NameGPRO
-
CertificationISO,CE Certification
-
Model NumberGP30YD
-
Minimum Order Quantity1 SET
-
PriceNegotiation
-
Packaging DetailsPlywood or Plastic packing
-
Delivery Time15 - 20 working day
-
Payment TermsL/C, T/T
-
Supply Ability1000 Set / Month
27kva China YangDong Diesel Generator Open type generator with YangDong engine
27kva China YangDong Diesel Generator Open type generator with YangDong engine
Powered by Yangdong Engine
Range: 10kva to 99kva
| MAIN TECHNICAL PARAMETER/ 50HZ 3PHASES, 1500RPM 400/230V | |||||||||||
| GENSET MODEL | Prime Power | Standby power | Engine | Fuel Consumption (L/h) | Silent Type Generator | ||||||
| KVA | KW | KVA | KW | Model | No.Cylinder | Governor | Dimention L×W×H(mm) |
Weight (KG) |
Sound Level at 7m (dBA) | ||
| GP11YD | 10 | 8 | 11 | 9 | YD380D | 3.L | M | 3.5 | 1680×760×1050 | 580 | 68 |
| GP14YD | 13 | 10 | 14 | 11 | YD480D | 4.L | M | 4.5 | 1800×800×1140 | 665 | 70 |
| GP19YD | 17 | 14 | 19 | 15 | YND485D | 4.L | M | 5.0 | 1900×800×1140 | 760 | 70 |
| GP25YD | 22 | 18 | 24 | 19 | YSD490D | 4.L | M | 6.3 | 1900×800×1140 | 785 | 70 |
| GP30YD | 27 | 22 | 30 | 24 | Y495D | 4.L | M | 7.8 | 1960×800×1140 | 820 | 70 |
| GP34YD | 31 | 25 | 34 | 27 | Y4102D | 4.L | M | 9.5 | 2200×1000×1320 | 1000 | 71 |
| GP42YD | 38 | 30 | 42 | 33 | Y4105D | 4.L | M | 10.8 | 2200×1000×1320 | 1045 | 71 |
| GP55YD | 50 | 40 | 55 | 44 | Y4102ZLD | 4.L | M | 16.1 | 2360×1000×1420 | 1200 | 72 |
| GP62YD | 56 | 45 | 62 | 49 | Y4105ZLD | 4.L | E | 16.1 | 2360×1000×1420 | 1250 | 72 |
| GP69YD | 63 | 50 | 69 | 55 | Y4EZLD | 4.L | E | 16.1 | 2360×1000×1420 | 1290 | 72 |
| GP88YD | 80 | 64 | 88 | 70 | Y4110ZLD | 4.L | E | 19.6 | 2460×1000×1500 | 1530 | 72 |
| MAIN TECHNICAL PARAMETER/ 60HZ 3PHASES, 1800RPM 440/254V | |||||||||||
| GENSET MODEL | Prime Power | Standby power | Engine | Fuel Consumption (L/h) | Silent Type Generator | ||||||
| KVA | KW | KVA | KW | Model | No.Cylinder | Governor | Dimention L×W×H(mm) |
Weight (KG) |
Sound Level at 7m (dBA) | ||
| GP13YDX | 12 | 10 | 13 | 11 | YD380D | 3.L | M | 3.5 | 1680×760×1050 | 580 | 68 |
| GP18YDX | 16 | 13 | 18 | 14 | YD480D | 4.L | M | 5.0 | 1800×800×1140 | 665 | 70 |
| GP22YDX | 20 | 16 | 22 | 18 | YND485D | 4.L | M | 6.0 | 1900×800×1140 | 760 | 70 |
| GP28YDX | 25 | 20 | 28 | 22 | YSD490D | 4.L | M | 6.9 | 1900×800×1140 | 785 | 70 |
| GP34YDX | 31 | 25 | 34 | 27 | Y495D | 4.L | M | 8.6 | 1960×800×1140 | 820 | 70 |
| GP42YDX | 38 | 30 | 42 | 33 | Y4102D | 4.L | M | 10.5 | 2200×1000×1320 | 1000 | 71 |
| GP50YDX | 45 | 36 | 50 | 40 | Y4105D | 4.L | M | 11.9 | 2200×1000×1320 | 1045 | 71 |
| GP61YDX | 55 | 44 | 61 | 48 | Y4102ZLD | 4.L | M | 15.6 | 2360×1000×1420 | 1200 | 72 |
| GP69YDX | 63 | 50 | 69 | 55 | Y4105ZLD | 4.L | E | 17.7 | 2360×1000×1420 | 1250 | 72 |
| GP77YDX | 70 | 56 | 77 | 62 | Y4EZLD | 4.L | E | 19.4 | 2360×1000×1420 | 1290 | 72 |
| GP99YDX | 90 | 72 | 99 | 79 | Y4110ZLD | 4.L | E | 21.6 | 2460×1000×1500 | 1530 | 72 |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
Our products are sold all over the world, you can rest assured.
