Yellow 6kva Small Portable Generators Electric Genset 3000rpm 3600rpm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standby Power | 6.5KVA / 6KVA | Frequency | 50/60HZ |
|---|---|---|---|
| Current | 20A | Voltage | 220/230/240v |
| Engine | 186FAE , 1 Cylinder Air Cooled Diesel Engine | Alternator | 100% Copper |
| Controller | Electric Start / Hand Start | Warranty | 1 Year Or 1000 Hours |
| Phase | 3 Phase Or Single Phase | Speed | 3000rpm /3600 Rpm |
| Certificate | ISO9001/ISO14001/CE | Noise Level | 65dB 7 Meters |
| High Light | silent portable generator,small diesel generators |
||
Product Description
Company Photos:
6KVA Small portable generator electric specification:
| Genset | Model No. |
BD7000ES (Super Silent type) |
| Rated frequency (Hz) | 50/60 | |
| Rated voltage (v) | 230 120/240 | |
| Rated output power(kW) | 5.0 6.0 | |
| Rated rotation speed(rpm) | 3000/3600 | |
| DC Output | 12v 8.3A | |
| Power factor | 1 | |
| Phase number | Single phase | |
| Noise level dB@7m | 68 | |
| Overall dimension (L*W*H)MM | 950x560x750 | |
| Net weight | 165 | |
| Engine | Engine type | 186FAE |
| Structure type | Single cylinder , in lined 4 stroke, air cooled direct injection | |
| Bore * stroke mm | 86X72 | |
| Displacement ml | 418 | |
| Compression ratio | 19:01 | |
| Rated output(kw/rpm) | 5.9/3000 6.5/3600 | |
| Lubrication system | pressure splashed | |
| Lue oil brand | Above CD SAE 10W 30 15W 40 | |
| Staring system | 12V Electric starter | |
| Starting motor capacity | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | |
| Battery capacity | 12V 36AH | |
| Fuel consumption rate(g/kw.h) | 3000rpm 276,3600rpm 285 | |
| Fuel type | Diesel 0# or 10# 35# | |
| Fuel tank capacity (L) | 15 | |
| Continuous Running time(H) | 8 |
Description:
| 1 | 100% copper alternator |
| 2 | 1 cylinder 4 stroke , diesel engine |
| 3 | Phase single or 3 phase |
| 4 | Dimension 950x650x750mm Net Weight 165KGS |
| 5 | Quantity for 20 foot container 72 sets, for 40HQ foot container 144 sets |
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use , industrial use, island use.
3. Telecom, Mobile tower, etc
4.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Open type , good at radiator
2. Power is stable.
3. 100% cooper alternator
4. Produce engines / canopy and assemble by ourselves.
5. Delivery time only need 1 week for a full container
6. Competitive price

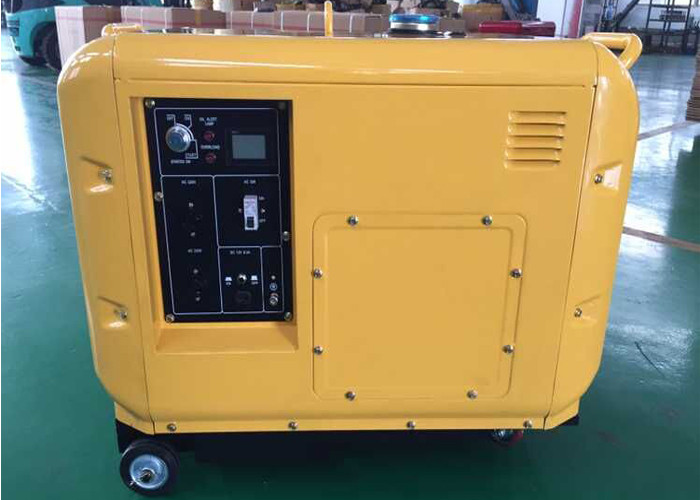

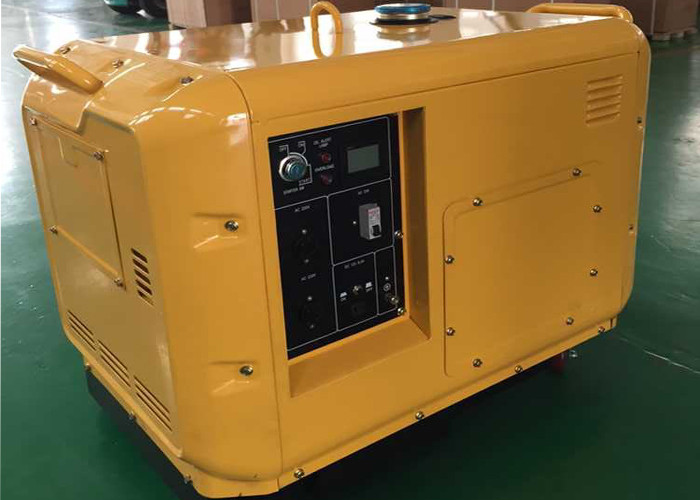

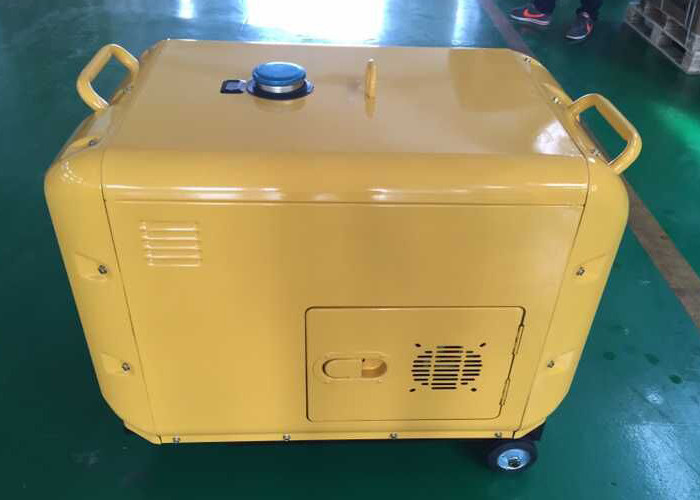

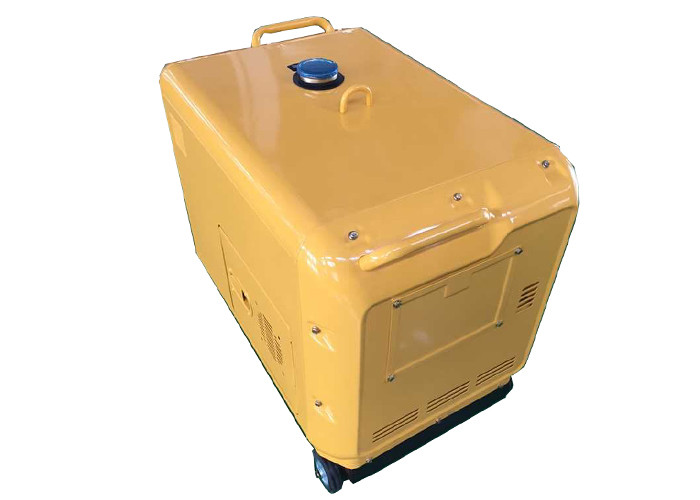

Mass electric small portable generators photos:
