CCS Certification 64kw Boat Diesel Generator 4BTA3.9-GM65 Engine

CCS Certification 64kw Boat Diesel Generator 4BTA3.9-GM65 Engine

  • High Light

    cummins marine diesel generator

    ,

    boat diesel generator

  • Power(Prime/Standby)
    20-150KW
  • Frequency
    50/60hz
  • Current
    Depending On Power
  • Voltage
    220/380V, 230/400V
  • Engine
    Cummins
  • Alternator
    Stamford/Marathon
  • Controller
    With Meters
  • MCCB
    ABB/Delixi
  • Warranty
    One Year Or 1000hrs
  • Color
    Customized
  • Place of Origin
    Jiangsu, China
  • Brand Name
    GPRO
  • Certification
    ISO, CE, CCS, BV
  • Model Number
    PF-M50-65M
  • Minimum Order Quantity
    1
  • Price
    negotiable
  • Packaging Details
    plywooden cased or plastic poly
  • Delivery Time
    45 days
  • Payment Terms
    Western Union, L/C, T/T, MoneyGram
  • Supply Ability
    500pcs/ Month

CCS Certification 64kw Boat Diesel Generator 4BTA3.9-GM65 Engine

CCS certification 64kw Marine Genset Powered by Cummins 4BTA3.9-GM65 Engine



Genuie Cummins engine, with Marathon alternators or Stamford.



Cooling method: by heat exchanger and sea water pump. Without radiator.



Genset Model Rated Power Engine Model Alternator Controller
BM20-ZD65M20 20KW 4BTA3.9-GM65 Matathon
MP-H-20-4
YLJK-F200A
Stamford
P.M 144E
BM24-ZD65M24 24KW 4BTA3.9-GM65 Matathon
MP-H-24-4
YLJK-F200A
Stamford
P.M 144F
BM30-ZD65M30 30KW 4BTA3.9-GM65 Matathon
MP-H-30-4
YLJK-F200A
Stamford
P.M 144H
BM50-ZD65M50 50KW 4BTA3.9-GM65 Matathon
MP-H-50-4
YLJK-F200A
Stamford
UCM 224E
BM75-ZD100M75 75KW 6BT5.9-GM100 Matathon
MP-H-75-4
YLJK-F200A
Stamford
UCM 224G
BM90-ZD100M90 90KW 6BT5.9-GM100 Matathon
MP-H-90-4
YLJK-F200A
Stamford
UCM 274C
BM100-ZD120M100 100KW 6BTA5.9-GM120 Matathon
MP-H-100-4
YLJK-F200A
Stamford
UCM 274D
BM120-ZD129M120 120KW 6CT8.3-GM129 Matathon
MP-H-120-4
YLJK-F200A
Stamford
UCM 274F
BM150-ZD175M150 150KW 6CTA8.3-GM175 Matathon MP-H-150-4 YLJK-F200A
Stamford
UCM 274G



Ambient temperature     45℃        Sea water temperature       32℃

Atmospheric pressure  100 KPA      Relative humidity of atomsphere    60%


Description:



1.    Power Range: 20-150kw

2.    Engine: Cummins

3.    Alternator: Genuine Stamford, Marathon, Meccalte, etc

4.    Controlling system: Standard, display of water temperature, oil pressure, speed, time, current, frequency. Warn and stop of high water temperature, low/over speed.

Options: Remote monitoring of running parameters.

5.    Color: Can be customized

6.     With sea water pump, heat exchanger, bellows, CCS, meters



Applications:



Marine generators are for boats, ships, and Islands, seashore constructions.



Competitive Advantage:



1.    Full power.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Use high standard of sponge to make soundproof.

5.    Pre and after sales service is provided.

6.    Fast response for the inquires, service, etc.

7.    With CCS certificate or BV certificate.

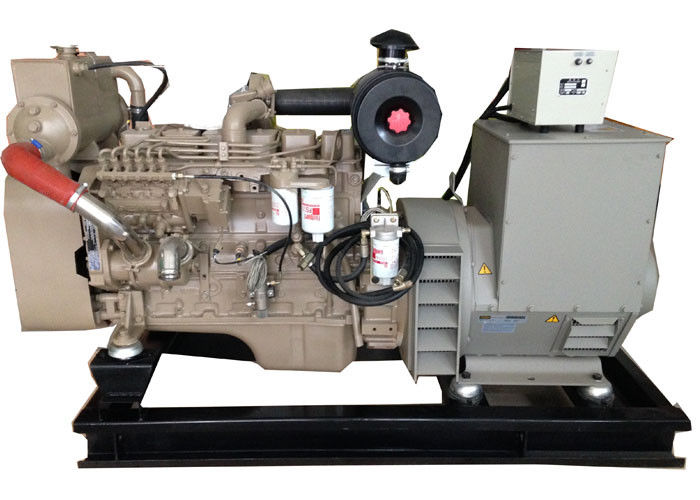

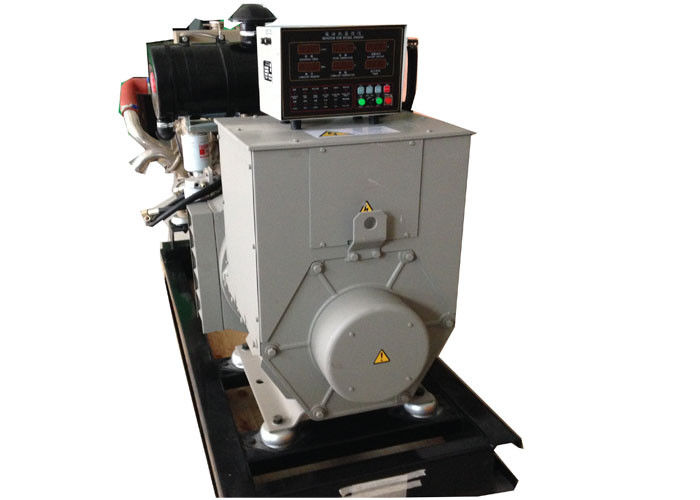

Details of Marine diesel generators



CCS Certification 64kw Boat Diesel Generator 4BTA3.9-GM65 Engine 0



CCS Certification 64kw Boat Diesel Generator 4BTA3.9-GM65 Engine 1
