10kva diesel small portable generators, 3000rpm/3600rpm speed engine generator, air cooled silent generator
Specification of 10kva Generator:
| Model NO. | BDI10T(Silent) | BDI10T3(Silent) | |
| Genset | Rated frequency(Hz) | 50/60 | 50/60 |
| Rated voltage(V) | 230V | 400/230V | |
| Rated current(A) | 34.7 39 | 14.4 16.3 | |
| Rated output power(kva) | 8KVA/ 9KVA | 10KVA/ 11KVA | |
| Max output power (kva) | 9KVA/ 10KVA | 11KVA/ 12KVA | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | |
| DC output | 12V 8.3A | 12V 8.3A | |
| Power factor(cosφ) | 1 | 0.8 | |
| Phase number | Single phase | 3 phase | |
| Noise level[dB(A)@7m] | 75 | 75 | |
| Overall dimension(L*W*H)[mm] | 1120x750x800 | 1120x750x800 | |
| Net weight(kg) | 285 | 285 | |
| Engine | Engine type | 2V86 | 2V86 |
| Structure type | 2 cylinder, V Type,4-stroke, air cooled, direct injection |
2 cylinder,V Type,4-stroke, air cooled, direct injection |
|
| Displacement[ml(cu. in)] | 418 | 418 | |
| Engine speed(rpm) | 3000/3600 | 3000/3600 | |
| Compression ratio | 19:1 | 19:1 | |
| Rated output power[kW/rpm] | 14.4/3000 , 15.3/3600 | 14.4/3000 , 15.3/3600 | |
| Lubrication system | Pressure splashed | Pressure splashed | |
| Lube oil brand | Above CD SAE 10W-30,15W-40 | Above CD SAE 10W-30,15W-40 | |
| Starting system | 12 V Electric starter | 12 V Electric starter | |
| Starting motor capacity | 12V 0.8KW | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | 12V 3A | |
| Battery capacity | 12V 36AH | 12V 36AH | |
| Fuel consumption rate[g/kW.h] | 3000rpm: 270 , 3600rpm: 290 | 3000rpm: 270 , 3600rpm: 290 | |
| Fuel type | Diesel 0#(summer)or-10#(winter),-35#(cold) | Diesel 0#(summer)or-10#(winter),-35#(cold) | |
| Fuel tank capacity(L) | 25 | 25 | |
| Continuous running time(H) | 8 | 8 | |
| Qty for 20ft (pcs) | 30 | 30 |

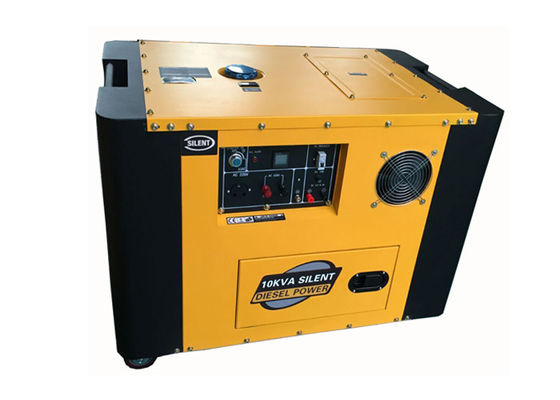

10kva diesel generators photos( Color can be customized):
Description:
| 1 | 100% copper alternator |
| 2 | 2 cylinder 4 stroke , diesel engine |
| 3 | Phase single or 3 phase |
| 4 | Dimension 1120x750x800mm Net Weight 260KGS |
| 5 | Quantity for 20 foot container 26 sets |
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use , industrial use, island use.
3. Telecom, Mobile tower, etc
4.As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. With 2 fan , have good air input and output design.
2. Power is stable.
3. 100% cooper
4. Produce engines / canopy and assemble by ourselves.
5. Small size , suitable small place.
6. With 2V86, 2 cylinder air cooled diesel engine
