Household 5kVA 6kVA Moveable Diesel Small Portable Generators With Wheels
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 6KVA | Frequency | 50/60HZ |
|---|---|---|---|
| Voltage | 220v - 690v Optional | Engine | 188FAE |
| Alternator | 100% Copper | Cooling System | Air Cooled |
| Genset Type | Open Type, Silent Type | ATS | Optional |
| High Light | small diesel generators,portable electric generator |
||
Product Description

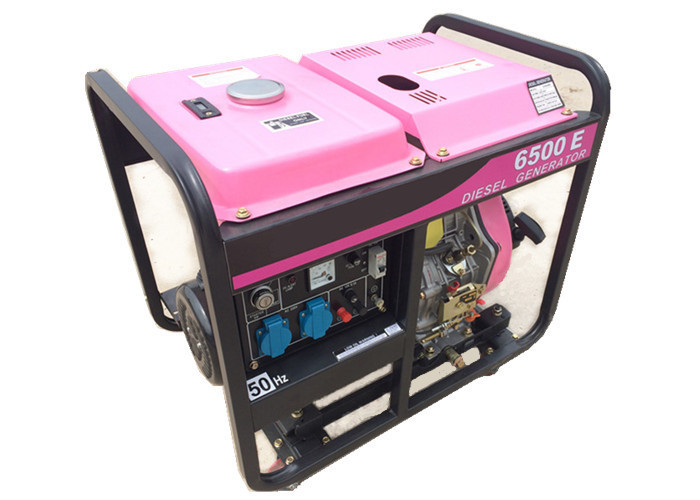

Household 5kw small diesel generator moveable genset with wheels
| Genset | Model No. | 6500E (Open type) | PD6800T (Silent type) |
| Rated frequency (Hz) | 50/60 | 50/60 | |
| Rated voltage (v) | 230 120/240 | 230 120/240 | |
| Rated output power(kW) | 5.0 6.0 | 5.0 6.0 | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | |
| DC Output | 12v 8.3A | 12v 8.3A | |
| Power factor | 1 | 1 | |
| Phase number | Single phase | Single phase | |
| Noise level dB@7m | 85 | 75 | |
| Overall dimension (L*W*H)MM | 780x500x650 | 950x560x750 | |
| Net weight | 107 | 165 | |
| Engine | Engine type | 186FAE | 188FAE |
| Structure type |
Single cylinder , in lined 4 stroke, air cooled direct injection |
Single cylinder , in lined 4 stroke, air cooled direct injection |
|
| Bore * stroke mm | 86X72 | 86X72 | |
| Displacement ml | 418 | 418 | |
| Compression ratio | 19:01 | 19:01 | |
| Rated output(kw/rpm) | 5.9/3000 6.5/3600 | 5.9/3000 6.5/3600 | |
| Lubrication system | pressure splashed | pressure splashed | |
| Lue oil brand |
Above CD SAE 10W 30 15W 40 |
Above CD SAE 10W 30 15W 40 |
|
| Staring system | Recoil starter | 12V Electric starter | |
| Starting motor capacity | 12V 0.8KW | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | 12V 3A | |
| Battery capacity | 12V 36AH | 12V 36AH | |
| Fuel consumption rate(g/kw.h) | 3000rpm 276,3600rpm 285 | 3000rpm 276,3600rpm 285 | |
| Fuel type | Diesel 0# or 10# 35# | Diesel 0# or 10# 35# | |
| Fuel tank capacity (L) | 15 | 15 | |
| Continuous Running time(H) | 8 | 8 |
Loading quanity for 20ft container is 72 units.
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.
If have any questions, please contact us. Your inquiry would be appreciated.
