10kw - 30kw Perkins super silent diesel generator Denyo type genset 50hz 60hz
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 8KW 10KVA | Frequency | 50/60HZ |
|---|---|---|---|
| Voltage | 220v - 690v Optional | Engine | Perkins |
| Alternator | Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional | Controller | Deepsea, Smartgen, Harsen For Optional |
| MCCB | ABB Or Delixi | Cooling System | Water Cooled |
| Genset Type | Open Type, Silent Type, Container Type, Trailer Type For Optional | ATS | Optional |
| High Light | open type genset,water cooled generator |
||
Product Description

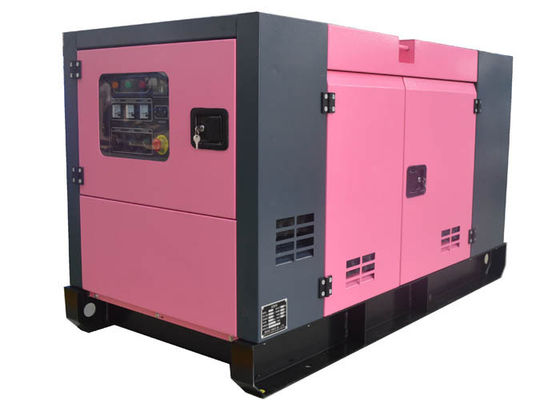

UK Perkins 10kw to 30kw super silent diesel generator Denyo type genset
Technical Specifications:
| Genset | Prime Power (kw/kva) | 8 / 10 | |
| Voltage Recovery Time | ≤1S | ||
| Rated Frequency (Hz) | 50 | ||
| Frequency Recovery Time | ≤5S | ||
| Running Noise db(A)/7m(Silent type) | 75 | ||
| Battery capacity (V-Ah) | 12V 100Ah | ||
| Soundproof Type- Dimension (L*W*H) (mm) | 1800*750*1120 | ||
| Soundproof Type-Weight (kg) | 1080 | ||
| Engine | Engine brand | Perkins | |
| Output Power (kw) | 13 | ||
| Cylinder No. & Config. | 3, in-line | ||
| Combustion System | Indirect injection | ||
| Engine Speed (r/min) | 1500 | ||
| Speed Governing | Mechanical | ||
| Starting System | 12V DC Electric | ||
| Filter System | Dry oil filter/Fuel filter/Oil filter | ||
| Cooling system | Water-cooled | ||
| Alternator | Alternator brand | Stamford, Mecc-alte,Faraday… | |
| Excitation System | Brushless, self-exciting | ||
| Voltage Regulation Mode | AVR | ||
| Connection Type | 3phase,4wires,”Y” connection | ||
| Pole No. | 4 | ||
| Rotation Speed (r/min) | 1500 | ||
| Temperature Rise (℃) | 125 | ||
| Insulation class | H | ||
| Voltage Regulation (0 load) | ≥95%～105% | ||
| Protection Grade | IP23 | ||
Heavy duty world class brand industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional.
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.
If have any questions, please contact us. Your inquiry would be appreciated.
