Contact Person : Karen Zou
Phone Number : +86-13720828359
WhatsApp : +008613720828359

220V Single Phase 5kva Portable Diesel Generator with Wheels Electric start 4.5kva

Place of Origin Jiangsu of China
Brand Name Power Friend
Certification ISO,CE Certification
Model Number PF-D5
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 1000 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Output Power 5kva Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Chinese
Alternator 100% Copper Cooling System Air Cooled
Genset Type Open Type, Silent Type ATS Optional
High Light

silent portable generator


portable electric generator

Leave a Message
Product Description

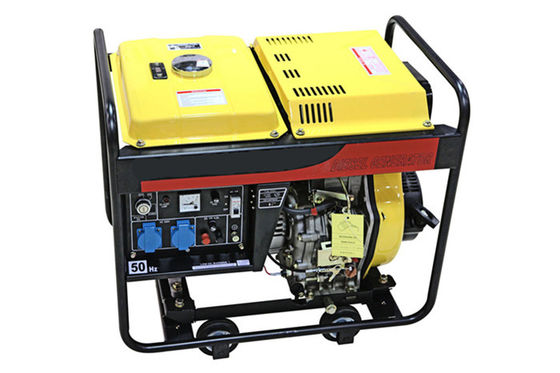

220V Single Phase 5kva Portable Diesel Generator with Wheels Electric start 4.5kva


Rated frequency (Hz)

50   60

Rated output(kVA)

4.5  5

Max. ouput (kVA)

5    5.5

Rated voltage (V)

230/115      240/120

Rated current (A)

19.6/39.2      20.8/41.7

Rated speed (r/min )

3000       3600

Phase number


Excitation mode

Self-excitation and constant voltage(AVR)

Power factor cosφ


Insulation grade


Pole number


Engine model


Engine type

single-cylinder,4-stroke,vertical,diesel engine

Bore×stroke (mm)


Displacement (L)


Compression ratio


Rated power [kW/(r/min)]

5.7/3000     6.3/3600

Fuel type

0#summer) -10#winter -35#(chill cold) diesel

Lube oil brand

SAE10W30 (above CC grade )

Fuel consumptiong/kw.h

275.1 281.5

Fuel tank capacity (L)


Continuous running timehr


Overall dimension (mm) (L×W×H)


Dry weight (kg)


Starter system

electric starter

Noise leveldBA/7mat the rated load


Structure type



3/5/6kw available,silent generator, single or three phase

having timer, remote control , ATS, battery, wheel, handle, digital control panel, preheater etc as options.


220V Single Phase 5kva Portable Diesel Generator with Wheels Electric start 4.5kva 0


220V Single Phase 5kva Portable Diesel Generator with Wheels Electric start 4.5kva 1


Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.


1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

If have any questions, please contact us. Your inquiry would be appreciated.
