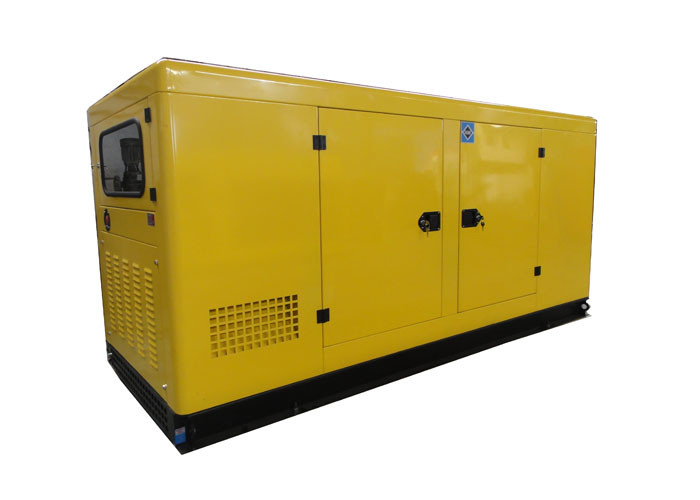

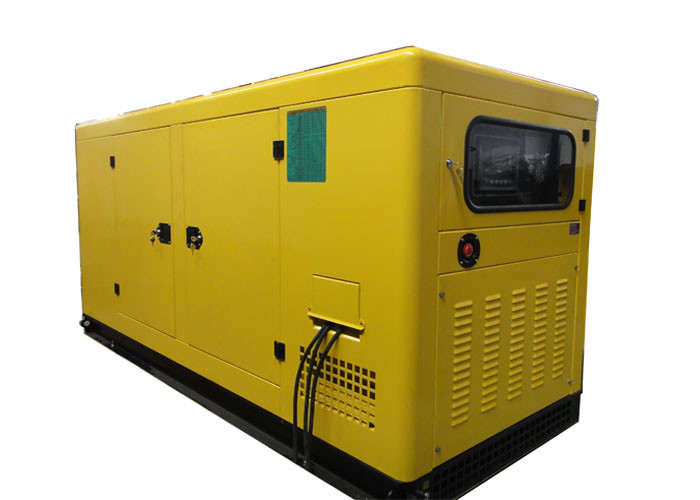

ISO CE FPT Diesel Generator , Super Silent Electric Generating Set 100kw
Technical specification | |
Genset Model | GP138FPS |
Prime Power | 100KW/125KVA |
Standby Power | 110KW/138KVA |
Phase Number | 3 |
Power Factor | 0.8 |
Rated Voltage | 230/400V |
Frequency | 50 HZ |
Rated Current | 180.4A |
Genset Structure | SILENT |
Dimension | 3400×1120×1785mm |
Net Weight | 2900KG |
Noise level | 72 dba @ 7 meters |
Engine Model | FPT FPT/NEF67SM1 |
Engine Features | 4-cylinder,4 stroke,Turbocharged |
Bore * Stroke | 104mm × 132mm |
Displacement | 6.7L |
12-hour Power(kw) | 110KW/1500 |
Fuel Consumption L/H | 29.3L/H |
Compression Ratio | 17.5:1 |
Governor type | Mechnical |
Alternator Model | MECC ALTE/ECP34-1L/4 |
Excitation Mode | brushless self-excited |
Insulation Class | H |
Protection Class | IP23 |
Construction Type | SAE Disc-coupling |
Controler Panel | Deepsea/ ComAp/ Smartgen |
Description:
1. Power Range: 125KVA /100KW
2. Engine: Original Italy Fiat FPT engine
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
7. Emergency power station
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
