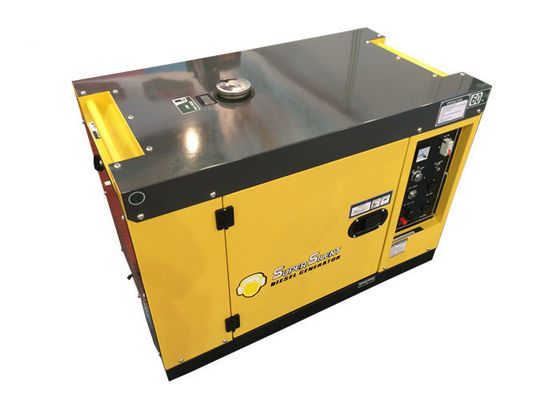

6kva 7kva Soundproof Small Portable Generators Stable Power Genset With Remote Control
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 6KVA | Frequency | 50/60HZ |
|---|---|---|---|
| Voltage | 220v - 690v Optional | Engine | 188F |
| Alternator | 100% Copper | Cooling System | Air Cooled |
| Genset Type | Open Type, Silent Type | ATS | Optional |
| High Light | silent portable generator,small diesel generators |
||
Product Description
6kva 7kva souldproof diesel generator stable power genset with remote control
| Diesel generator set PD8000ES | ||
| Model | PD8000ES | |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 6 | 6.5 |
| Max. Power(KVA) | 6.5 | 7 |
| Voltage (V) | 115/230 | 120/240 |
| Current (A) | 52.1/26.1 | 54.1/27.1 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Single | |
| Power factor(cosφ) | 1 | |
| Excitation system | Self-excited constant voltage | |
| Noise level (7m) | DB (A): 65 | |
| Fuel tank capacity (L) | 15 | |
| Structure | Silent | |
| Panel | Ordinary | |
| Outputsocket | Two | |
| DC12V output | Terminal post | |
| Engine Model | 188F | |
| Bore*stroke (mm) | 88 *75 | |
| Displacement (L) | 0.45 | |
| Power (KW) | 7.5/3000 | 8.2/3600 |
| Fuel consumption rate (g. KW/h) | 290 | 295 |
| Compression ratio | 19 | |
| Lubrication system | Spring | |
| Engine starting system | Electric starter | |
| Diesel oil model | Summer: 0#, winter: -10# | |
| Lube oil model | SAE10W-30 (above CD grade) | |
| Lube oil capacity (L) | 1.65 | |
| Battery capacity(V-AH) | 12V-36Ah | |
| Net weight (KG) | 175 | |
| Dimension(L*W*H) | 970×560×770 | |
Loading quanity for 20ft container is 72 units.
Four-stroke, high efficiency diesel engine with stable frame
Start options : recoil start & electric start with battery
Phase options : single phase or single phase + three phase
Muffler with low noise
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If have any questions, please contact us. Your inquiry would be appreciated.
