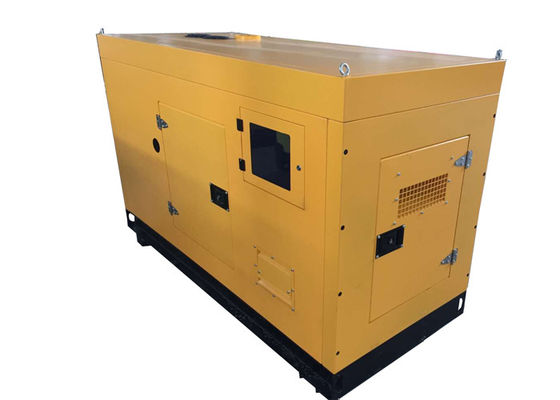

100kva Cummins Boat Diesel Generator Weathproof Silent Type , Stamford / Marathon Alternator

Place of Origin Wuxi, China
Brand Name BWIN
Certification ISO, CE, CCS, BV
Model Number PF-CM110S
Minimum Order Quantity 1
Price negotiable
Packaging Details plywooden cased or plastic poly
Delivery Time 45 days
Payment Terms Western Union, L/C, T/T, MoneyGram
Supply Ability 500pcs/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power(Prime/Standby) 80KW / 100KVA Frequency 60HZ , 1800RPM
Current Depending On Power Voltage 220v-440v
Engine Cummins - 6BT5.9-GM100 Alternator Stamford/ Marathon
Controller Deepsea/Smartgen MCCB ABB/Delixi
Warranty One Year Or 1000hrs Color Customized
Cooling Method Sea Water Cooled
High Light

marine diesel genset

,

cummins marine diesel generator

Leave a Message
Product Description

Marine diesel generator 100kva specification:



Model PF-CM110S
Genset brand POWER FRIEND
Prime power(kW/kVA) 80/100
Rated voltage(V) 380
Rated current(A) 115
Rated frequency(Hz) 60
Power factor 0.8

Steady state voltage regulation



≤±1%

Steady state frequency regulation



≤±1%

Steady state voltage fluctuation rate



≤±0.5%

Steady state frequency fluctuation rate



≤±0.5%

Transient voltage regulation



﹣20%~+25%

Transient frequency regulation



﹣15%~+15%

Voltage Recovery time

(S)

<1.5

Relative voltage setting range

(%)

>±5
Waveforn distortion

Sine wave, waveform distortion

﹤5%

Genset size:L×W×H(mm) 2200×1000×1200
Net Weight(kg) 1100
Marine genset certification CCS certification



Cummins marine engine specification:



Engine model 6BT5.9-GM100
Original Cummins
Type 6 cylinder in-line, 4 stroke turbocharging, directly injection
Rated Power(kW) 100
Bore Diameter(mm) 102
Stroke(mm) 120
Displacement(l) 5.9
Rated speed(r/min) 1800
Governor mode Electric
Star Type Electric
Cooling type

Heat exchanger, the sea/fresh water cooling

,

Consumption(g/kw.h) ≤213
Sea water pump Gear-driven
Exhaust manifold Air cooled
Motor starter 12v
Battery 50A
Battery charger 12V 50A



Description:

1.    Power Range: 100KVA/ 80KW

2.    Engine: Cummins

3.    Alternator: Genuine Stamford, Marathon, Meccalte, etc

4.    Controller: Deepsea or Smartgen with or without AMF. Digital display of parameters of diesel engine, and        integration of measuring and monitoring.

      Options: Remote monitoring of running parameters.
5.    Color: Can be customized

Cooling System:

1. Heater exchanger

2. Sea water pump

3. Fresh water pump

4. theomostat for fresh water

Applications:

 Sea areas as draining water ship, tugboat, fishnet ship, freighter and digging-ship etc as electric power supply and can be used as Marine Main Generator set, Marine emergency Generator set or Harbor Generator set.

Competitive Advantage:

1.    Full power.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Use high standard of sponge to make soundproof.

5.    Pre and after sales service is provided.

6.    Fast response for the inquires, service, etc.
7.    With CCS certification



Marine generator set sketch picture:
