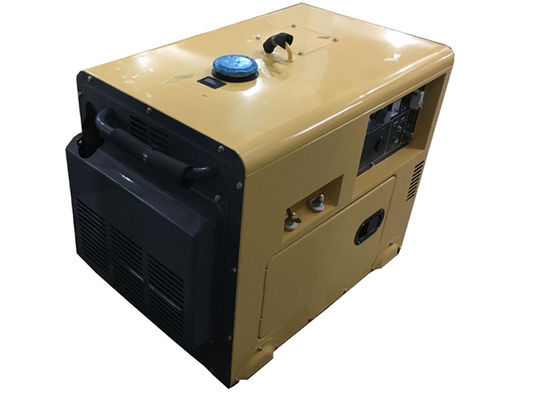

Portable Welder Generator Silent Welder Small Portable Generators:
| Model | PF-DH10 | ||
| Frequency | Hz | 50 60 | |
| Rated power | KVA(KW) | 3. 3 | |
| Voltage | V | 230 240 | |
| Electricity Amp | A | 8 9.6 | |
| Phase/Factor | 3/0.8 | ||
| Speed | 3000 3600 | ||
| Welding dc current adjusting range | A | 0-300 | |
| direct current welding voltage | V | 25-70V | |
| Welding load factor | 60% | ||
| Welding rectifier way | · IGBT, 3 phase rectifier bridge | ||
| Pole | 2 | ||
| Controler model | Normal/Auto | ||
| Output type | Electric output | 3 Phase socket | |
| Welding output | binding post | ||
| exciting type | AVR Self-excitation voltage regulator | ||
| insulation grade | H | ||
| Dimension:L*W*H | mm | 1100x850x960 | |
| Net weight | kg | 220 | |
| Type | OPEN TYPE | ||
| Engine model | R2V840-V2 | ||
| Engine type | 2 cylinder,V type,4 stroke,Tur | ||
| Cylinder NO.-Bore X stroke | mm | 2--86x72 | |
| Displacement | ml | 840 | |
| Rated power | KW | 11.76 12 | |
| Compression ratio | 19:01 | ||
| Rated speed | r/min | 3000 3600 | |
| Sparking model | · pressure combustion | ||
| Cooling type | Air cooling | ||
| Lubricating system | Pressure and spatter composite | ||
| Start-up type | Electric start | ||
| Fuel type | Fuel 0#,-10#,-35# | ||
| Lubricating oil type | L-ECD 10W/30 or 15W/40 | ||
| Cooling water capacity | L | - | |
| Lubricating oil capacity | L | 2.7 | |
| Starter capacity | V-KW | 12V-1.4KW | |
| Charging generator capacity | V-A | 14V-15A | |
| Battery capacity | V-AH | 12V-36AH | |
| Fuel consumption rate | g/kw.h | ≤298 | |
| Fuel tank capacity | L | 25 | |
| Generator running hours | h | 8 | |
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Household: personal use for house, camping, party, etc
3. Island, Desert or any place without electricity
4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
5. Emergency power generation.
6. Where couldnt stop power need emergency.
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. 14 days delivery time
4. Produce engines / canopy and assemble by ourselves.
5. New design , competitive price
6. Super silent , eacy for maintance
7. Fashion canopy design
8. Top open , easy repair
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
