Super Silent Three Phase Small Portable Generators With 186FAE Engine 220 / 230 / 240v

10 SET
MOQ
$450-$600
Price
Super Silent Three Phase Small Portable Generators With 186FAE Engine 220 / 230 / 240v
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 5kva/5kw
Frequency: 50/60HZ
Current: 20A
Voltage: 220/230/240v
Engine: 186FAE 4 Stroke
Alternator: 100% Copper
Controller: Electric Start
Sound Level/db: 68dB
Warranty: 1 Year Or 1000 Hours
Speed: 3000rpm / 3600rpm
Certificate: ISO9001/ ISO14001/ CE
High Light:

silent portable generator

,

small diesel generators

Basic Infomation
Place of Origin: WUXI CITY CHINA
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: PD8000ES
Payment & Shipping Terms
Packaging Details: Carton box
Delivery Time: 15 days after advance payment
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 1000 sets / Month
Product Description

5KVA ELECTRIC START GENERATOR SPECIFICATION:





Genset Model No. PD8000E (Open type) PD8000ES (Silent type)
Rated frequency (Hz) 50/60 50/60
Rated voltage (v) 230 120/240 230 120/240
Rated output power(kW) 6.0 6.2 6.0 6.2
Rated rotation speed(rpm) 3000/3600 3000/3600
DC Output 12v 8.3A 12v 8.3A
Power factor 1 1
Phase number Single phase Single phase
Noise level dB@7m 75 75
Overall dimension (L*W*H)MM 780x500x650 950x560x750
Net weight 107 165

Engine Engine type 186FAE 186FAE
Structure type Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection
Bore * stroke mm 88X86 86X72
Displacement ml 523 418
Compression ratio 19:01 19:01
Rated output(kw/rpm) 6.6/3000 7.3/3600 5.9/3000 6.5/3600
Lubrication system pressure splashed pressure splashed
Lue oil brand Above CD SAE 10W 30 15W 40 Above CD SAE 10W 30 15W 40
Staring system 12V Electric starter 12V Electric starter
Starting motor capacity 12V 0.8KW 12V 0.8KW
Charging generator capacity 12V 3A 12V 3A
Battery capacity 12V 36AH 12V 36AH
Fuel consumption rate(g/kw.h) 3000rpm 265,3600rpm 275 3000rpm 276,3600rpm 285
Fuel type Diesel 0# or 10# 35# Diesel 0# or 10# 35#
Fuel tank capacity (L) 15 15
Continuous Running time(H) 8 8





Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Island, Desert or any place without electricity

4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow

5. Emergency power supply

6. Where couldnt stop power







Competitive Advantage:



1. Use 100% copper alternator

2. 24 hours/7 days after sale service

3. 14 days delivery time

4. Produce engines / canopy and assemble by ourselves.

5. New design , competitive price

6. Super silent , eacy for maintance

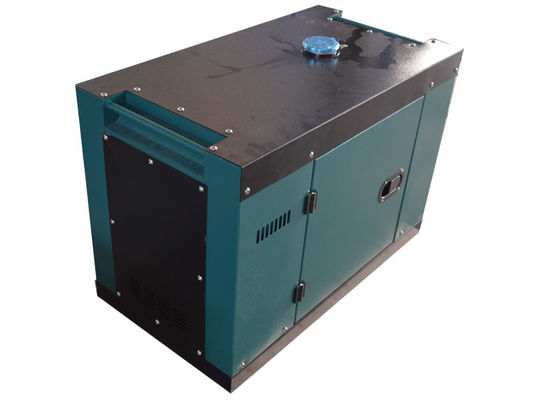

6KVA Super silent portable generator photos:





Super Silent Three Phase Small Portable Generators With 186FAE Engine 220 / 230 / 240v 0
