100% Copper Air Cooled Electric Start Portable Silent Portable Generator 3 Phase

1 SET
MOQ
Negotiation
Price
100% Copper Air Cooled Electric Start Portable Silent Portable Generator 3 Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 3KVA / 3.3KVA
Frequency: 50/60HZ
Current: 10A
Voltage: 220/230/240v
Alternator: 100% Copper
Controller: Hand Start / Elect Start Option
Sound Level/db: 68dB At 7 Meters
Warranty: 1 Year Or 1000 Hours
Speed: 3000rpm / 3600rpm
High Light:

silent portable generator

,

small diesel generators

Basic Infomation
Place of Origin: WUXI CITY CHINA
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: PD3500X
Payment & Shipping Terms
Packaging Details: Carton box
Delivery Time: 14 days
Supply Ability: 1000 sets / Month
Product Description

3KVA SMALL PORTABLE GENERATOR SPECIFICATION:





Genset Model No.

PD 3500X

(Open type)

PD3500E

(Open type)

PD 3500T (Silent type)
Rated frequency (Hz) 50/60 50/60 50/60
Rated voltage (v) 230 120/240 230 120/240 230 120/240
Rated current(A) 12.2 25/12.5 12.2 25/12.5 12.2 25/12.5
Rated output power(kW) 2.8 3.0 2.8 3.0 2.8 3.0
Rated rotation speed(rpm) 3000/3600 3000/3600 3000/3600
DC Output 12v 8.3A 12v 8.3A 12v 8.3A
Power factor 1 1 1
Phase number Single phase Single phase Single phase
Noise level dB@7m 78 78 78
Overall dimension (L*W*H)MM 675x470x550 675x470x550 675x470x550
Net weight 65 70 70

Engine Engine type ID178F ID178FE ID178FE
Structure type Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection
Bore * stroke mm 70x62 70x62 70x62
Displacement ml 296 296 296
Compression ratio 20:01 20:01 20:01
Rated output(kw/rpm) 3.7/3000 4.0/3600 2.5/3000 2.8/3600 2.5/3000 2.8/3600
Lubrication system pressure splashed pressure splashed pressure splashed
Lue oil brand

Above CD SAE

10W 30 15W 40

Above CD SAE

10W 30 15W 40

Above CD SAE 10W 30 15W 40
Staring system Recoil starter 12V Electric starter 12V Electric starter
Starting motor capacity N/M 12V 0.8kw 12V 0.8kw
Charging generator capacity N/M 12V 3A 12V 3A
Battery capacity N/M 12V 36AH 12V 36AH
Fuel consumption rate(g/kw.h)

3000rpm 276,

3600rpm 285

3000rpm 276,

3600rpm 285

3000rpm 276,3600rpm 285
Fuel type Diesel 0# or 10# 35# Diesel 0# or 10# 35# Diesel 0# or 10# 35#
Fuel tank capacity (L) 15 15 15
Continuous Running time(H) 14 14 14



Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Household: personal use for house, camping, party, etc

3. Island, Desert or any place without electricity

4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow

5. Emergency power generation.

6. Where couldnt stop power need emergency.





Competitive Advantage:



1. Use 100% copper alternator

2. 24 hours/7 days after sale service

3. 14 days delivery time

4. Produce engines / canopy and assemble by ourselves.

5. New design , competitive price

6. Super silent , eacy for maintance

7.  Fashion canopy design

8. Top open , easy repair

9. 100% copper alternator

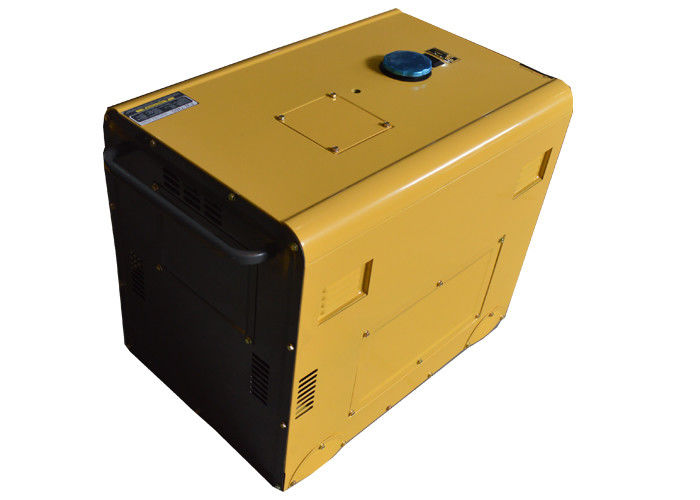

3KVA Super silent portable generator photos:
