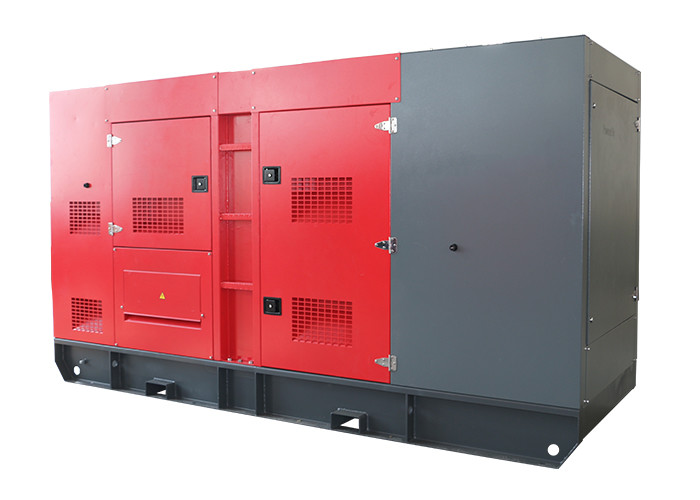

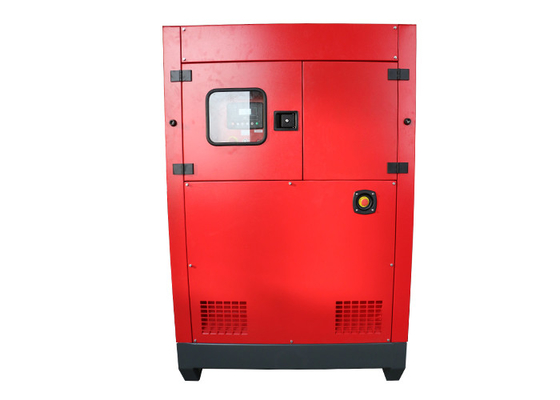

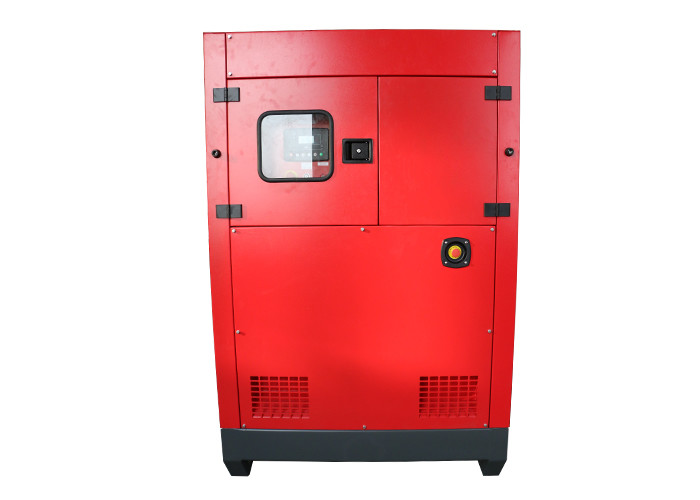

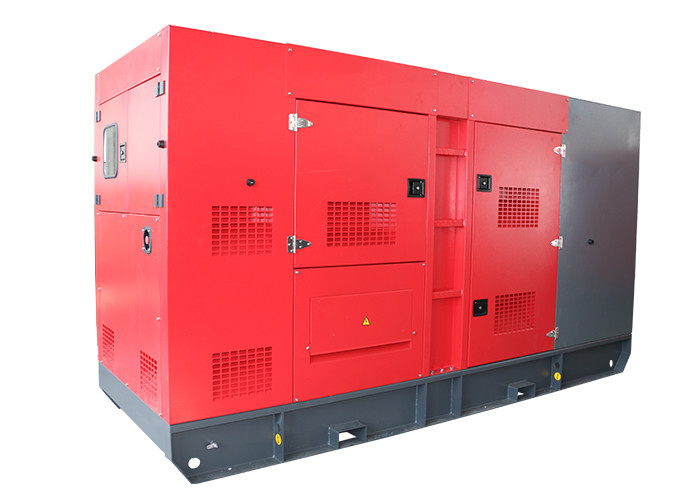

200kva Soundproof FPT Diesel Generator for Hotel Use with ATS
Technical specification | |
Genset Model | GP220FPS |
Prime Power | 160KW/200KVA |
Standby Power | 176KW/220KVA |
Phase Number | 3 |
Power Factor | 0.8 |
Rated Voltage | 230/400V |
Frequency | 50 HZ |
Rated Current | 288.7A |
Genset Structure | SILENT |
Dimension | 3600×1280×1860mm |
Net Weight | 3200KG |
Noise level | 75 dba @ 7 meters |
Engine Model | FPT FPT/NEF67TM7 |
Engine Features | 6-cylinder,4 stroke,Turbocharged aftercooled |
Bore * Stroke | 104mm × 132mm |
Displacement | 6.7L |
12-hour Power(kw) | 176.5KW/1500 |
Fuel Consumption L/H | 42.1L/H |
Compression Ratio | 17.5:1 |
Governor type | Mechnical |
Alternator Model | MECC ALTE/ECO38-2SN/4 |
Excitation Mode | brushless self-excited |
Insulation Class | H |
Protection Class | IP23 |
Construction Type | SAE Disc-coupling |
Controler panel | |
Smartgen 6120 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS
2.SynchronizationSystem
3.External daily fuel tank
4.Silent Canopy
5.Trailer
6.Auto Fuel Pump
7.Fuel and Water Separator
8.Lub Oil Heater
9.Coolant Heater
10.Fuel Drain Pump
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
