Ultra Silent 25KW Silent Generator Set Ricardo Engine Battery Charger For Home , Industrial
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 25KW /31 KVA | Standby Power | 28KW /34KVA |
|---|---|---|---|
| Engine | KOFO /4100DS | Alternator | Coy Stamford |
| Controler Panel | Smartgen | Air Breaker | MCCB DLIXI 3 Pole Or 4 Pole |
| Warranty | 1 Year Or 1000 Hours | Certificate | ISO/CE/CO/ FORM E / CIQ |
| High Light | power generating set,silent diesel generators |
||
Product Description
WeiChai Kofo 25kw silent generator Specification:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-KF35S |
| 1.2 | Prime at 50HZ, 40℃ ambient | 25KW 31kVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 28KW 34kVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | 1860×820×1300mm |
| 1.7 | Weight | 930kg |
| 1.8 | Fuel consumption 100% prime load | 7.9L/h |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.10 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | KOFO |
| 2.2 | Engine Model | 4100DS |
| 2.3 | Governor/Class | Mechanical |
| 2.4 | Cylinder NO. | 3 |
| 2.5 | Engine build | Line |
| 2.6 | Start-up method | 12/24V,electric |
| 2.7 | Battery capacity | 70~100A/hr |
| 2.8 | Fuel spray pattern | Direct injection |
| 2.9 | Aspiration | Natural |
| 2.10 | Cooling mode | Radiator cooled (enclose water) |
| 2.11 | Bore and stroke | 105 × 120mm |
| 2.12 | Displacement | 3.12L |
| 2.13 | Lubricating oil capacity | 7.25L |
| 2.14 | Engine Prime Power at 1500rpm | 30kWm |
| 2.15 | Engine Standby Power at 1500rpm | 33kWm |
| 2.16 | Fuel consumption | ≤208 |
| 2.17 | Fuel type | #0 Diesel (Natural temperature) |
| 2.18 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.19 | Exhaust system | Adopt industrial high efficiency muffler and ripple pump |
| 2.20 | Engine derating – altitude | Above the sea level 1525m high, a fall of 4% from a rise of 300m. |
| 2.21 | Engine derating – temperature | Above the ambient temperature 40℃ high, a fall of 2% from a rise of 11%. |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | UP184G |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated current | 54A |
| 3.12 | Efficiency | 86.20% |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Ambient Temperature | 40℃ |
| 3.18 | Relative humidity | - 15℃ |
| 3.19 | Altitude | 1000m |
| 3.20 | Weight | 167㎏ |
Description:
1. Power Range: 25kva to 150kva
2. Engine: Kofo ricardo engine
3. Alternator: COPY Stamford
4. Controller: Deepsea or Smartgen
5. Type: Soundproof type, weatherproof type
7. Color: Can be customized
8. Base fuel tank keep running 8 hours
9. 4 pole air breaker
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
7. Special for deserts and less water place.
Competitive Advantage:
1. Engine low fuel consumption.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
10. No need water to cool the generators.

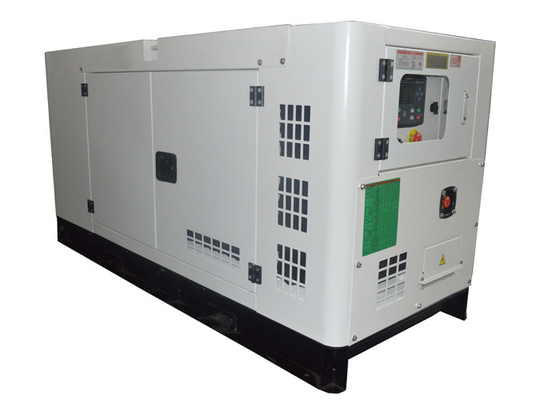

Generators photos:
