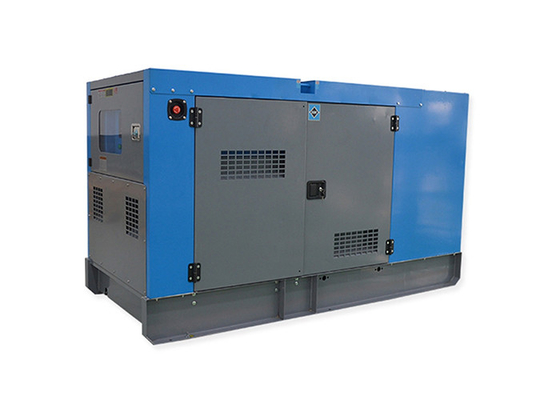

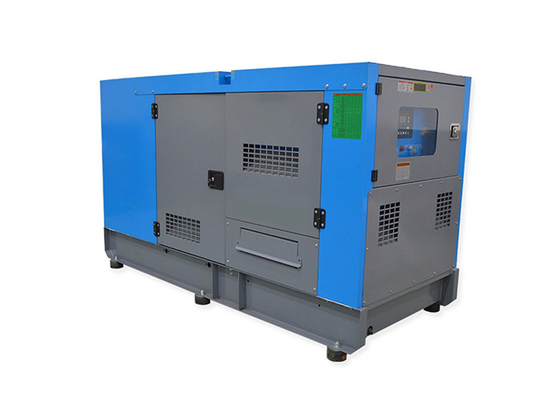

Denyo Type 40KW 50KVA Diesel Power commercial generators with DeepSea Controller

1 set
Denyo Type 40KW 50KVA Diesel Power commercial generators with DeepSea Controller
Features Gallery Product Description Request A Quote
Power(Prime/Standby): 50KVA/40KW
Standby Power: 55kva / 44kw
Current: 100A
Voltage: 220/380V
Engine: FAWDE 4DW22-65D
Alternator: Original Stamford / Mecc Alte
Controller: Smartgen / DeepSea/ Harseen
MCCB: Delixi / ABB 3 Pole Or 4 Pole
Sound Level/db: 65dB 7 Meter
Warranty: 1 Year Or 1000 Hours
ATS: Option
High Light:

industrial diesel generators


diesel genset

Basic Infomation
Place of Origin: WUXI city ,China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP55FWS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 20 days
Supply Ability: 500 sets / Month
Product Description

Denyo Type 40KW 50KVA Diesel Power commercial generators with DeepSea Controller



1.1 Set Model GP55FWS
1.2 Prime at 50HZ, 40℃ ambient 40KW 50KVA
1.3 Standby at 50HZ, 40℃ ambient 44KW 55KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2500X1000X1355 mm
1.7 Weight 1180 kg
1.8 Fuel consumption 100% prime load 10.6L/h
1.9 Noise level at 7 m (Normal/Super) 65dB

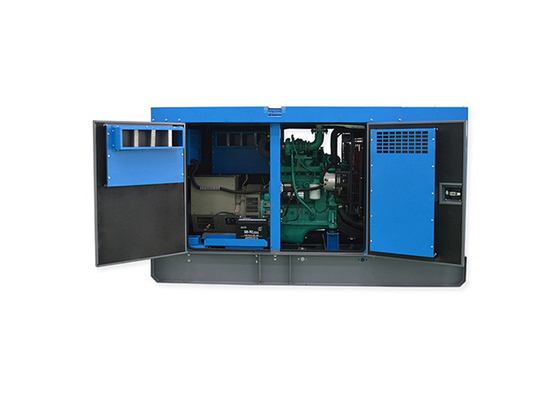

1.10  Structure of Gen-set

The Gen-set adopt integrative


engine is fix on high strength

steel basic frame,

anti vibration instrument between

the engine

 and basic frame, cooling fan have

protecting cap,

 control cabinet and circuit breaker

installed on Gen-set.

1.11 Control system (Optional)

Basic control panel or Advanced

control panel with

automatically start-up function

 and other function.

2.1 Engine Brand FAWDE
2.2 Engine Model 4DX22-65D
2.3 Governor/Class Mechanical/Electrical(select)
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Fuel spray pattern Direct injection
2.7 start-up method 12V, electric
2.8 Aspiration Nature
2.9 Cooling mode Radiator cooled (enclose water)
2.10  Bore and stroke 100X127 mm
2.11 Compression ratio 16.5:1
2.12 Displacement 3.99 L
2.13 Engine Prime Power at 1500rpm 40KWm
2.14 Engine Standby Power at 1500rpm 44KWm
2.15 Battery capacity 120A/hr
2.16 Starting/Min temperature select
2.17 Lubrication oil capacity 8.5L
2.18 Coolant capacity – radiator and engine (40℃) 21L
2.19 Exhaust temp – full load prime <600℃
2.20  Exhaust gas flow – full load prime 9000m3/h
2.21 Exhaust gas back pressure max 25mmHg
2.22 Air flow – radiator (40℃ ambient) 1.3 m3/s
2.23 Pusher fan head (duct allowance) 40℃ /
2.24 Air intake – engine– full load prime 9600m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system

Adopt whole changeable lubricating oil,

fuel  filter and air filter

2.28 Exhaust system

Adopt industrial high efficiency silencer

 and flexible bellows

2.29 Engine derating – altitude

Above the sea-level 1525m high,

a fall of 4% from a rise of 300m.

2.30  Engine derating – temperature

Above the ambient temperature 40℃high,

 a fall of 2% from a rise of 11%.

3.1 Alternator Model G224D
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10  Phase & wires 3 phase 12 wires
3.11 Rated currency 39.3A
3.12 Efficiency 0.858
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 15℃
3.19 Max. altitude 1000m
3.20  Weight 151㎏

Denyo Type 40KW 50KVA Diesel Power commercial generators with DeepSea Controller 0




1. Chinese brand-  FAWDE engine

2. Alternator: Brushless - Original Stamford / Mecc Alte

3. Controller: Deepsea or Smartgen with or without AMF.

4. Options: remote controller, synchronizing.

5. ATS is optional

6. Type: Soundproof type, weather proof, Trailer type

7. Color: Any color

8. Support OEM




1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow



Competitive Advantage:


1. Low fuel consumption

2. Good quality engine and alternator

3. Fast delivery. Big quantity of Engines in stock.

4. The generator set is mounted on a heavy duty fabricated steel skid type base–              frame with anti vibration mounting pads.

5. Use high standard of sponge to make soundproof.

6. The canopy design is user friendly, and easy for maintenance.

7. Pre and after sales service is provided.

8. 365 days, 24 hours after sale service
