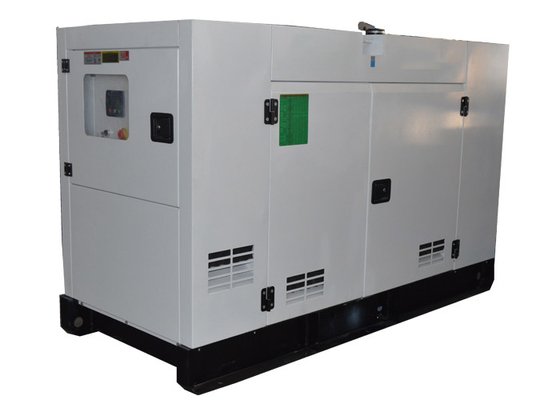

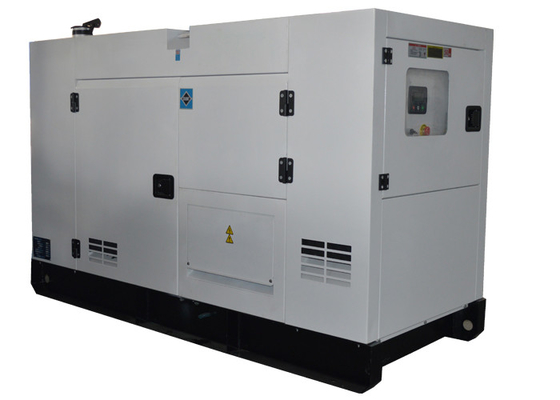

FAWDE Engine 24KW 30KVA Silent Generator Set Green Color with 4DW92-39D

1 set
MOQ
Negotiation
Price
FAWDE Engine 24KW 30KVA Silent Generator Set Green Color with 4DW92-39D
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 24kw/30kva
Standby Power: 26kw/33kva
Current: 45.6A
Voltage: 230 / 400V
Engine: FAWDE 4DW21-53D
Alternator: Original Stamford / Mecc Alte
Controller: Smartgen / DeepSea/ Harseen
MCCB: Delixi / ABB 3 Pole Or 4 Pole
Sound Level/db: 65dB 7 Meter
Warranty: 1 Year Or 1000 Hours
ATS: Option
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: WUXI city ,China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP33FWS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 20 days
Supply Ability: 500 sets / Month
Product Description

FAWDE Engine 24KW 30KVA Silent Generator Set Green Color with 4DW92-39D


 30KVA POWER GENERATOR SPECIFICATION:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-FW33
1.2 Prime at 50HZ, 40℃ ambient 24KW 30KVA
1.3 Standby at 50HZ, 40℃ ambient 26KW 33KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1750*800*1100,
Silent: 2300*1120*1200
1.7 Weight Open: 800kg, Silent: 1200kg
1.8 Fuel consumption 100% prime load 7
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model 4DX21-45D
2.3 Governor/Class Mechanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 24V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 102×118 mm
2.11 Compression ratio 17:01
2.12 Displacement 3.86
2.13 Engine Prime Power at 1500rpm 33KWm
2.14 Engine Standby Power at 1500rpm 36KWm
2.15 Lubrication oil capacity 12.5L
2.16 Oil consumption 0.06
2.17 Dry weight of base 350Kg
2.18 Dry weight of Gen Pac 375Kg
2.19 Overall dimension(G.P) 1155×680×835(mm)
2.2 Overall dimension(base) 810×680×800(mm)
2.21 27℃ air consumption ( m³/ min) 2.6
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model PI 144G
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 45.1A
3.12 Efficiency 0.862
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 156㎏



FAWDE Engine 24KW 30KVA Silent Generator Set Green Color with 4DW92-39D 0

Description:



1. Chinese brand-  FAWDE engine

2. Alternator: Brushless - Original Stamford / Mecc Alte

3. Controller: Deepsea or Smartgen with or without AMF.

4. Options: remote controller, synchronizing.

5. ATS is optional

6. Type: Soundproof type, weather proof, Trailer type

      7. Color: Any color

      8. Support OEM



Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow





Competitive Advantage:



1. Low fuel consumption

2. Good quality engine and alternator

3. Fast delivery. Big quantity of Engines in stock.

4. The generator set is mounted on a heavy duty fabricated steel skid type base–              frame with anti vibration mounting pads.

5. Use high standard of sponge to make soundproof.

6. The canopy design is user friendly, and easy for maintenance.

7. Pre and after sales service is provided.

8. 365 days, 24 hours after sale service



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
