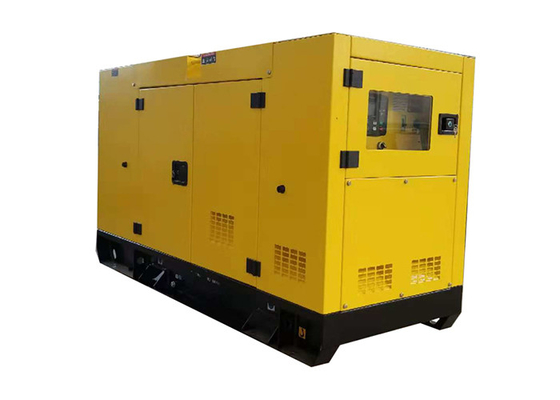

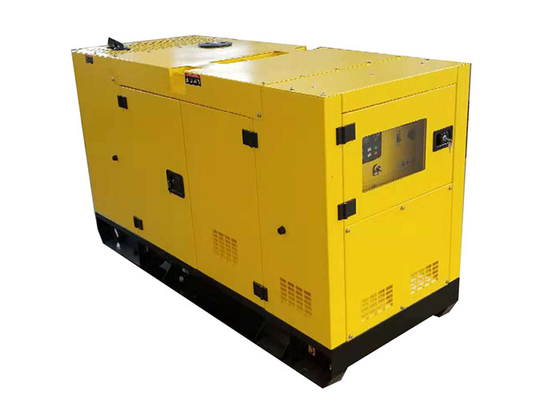

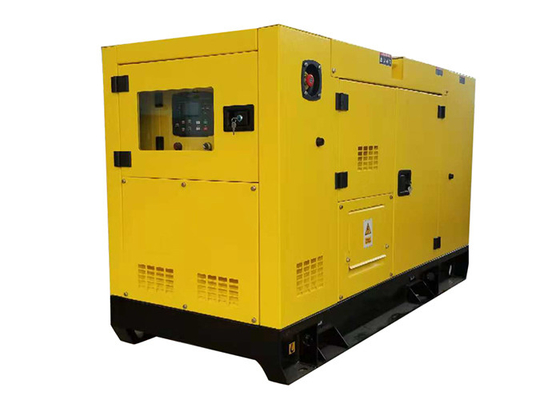

Lower Noise Water Cooled Four Stroke 30kw Three Phase Generator With RAYWIN Engine

Lower Noise Water Cooled Four Stroke 30kw Three Phase Generator With RAYWIN Engine

  • High Light

    power generating set

    ,

    silent diesel generators

  • Power(Prime/Standby)
    30KVA/ 24KW
  • Frequency
    50HZ / 60HZ
  • Current
    50A
  • Voltage
    220/380V 230/400V
  • Engine
    RAYWIN ENGINE
  • Controller
    Smartgen / DeepSea/ Compa
  • MCCB
    Delixi /ABB
  • Sound Level/db
    63dB 7 Meter
  • Warranty
    1 Year Or 1000 Hours
  • Alternator
    Original Stamford
  • Place of Origin
    WUXI
  • Brand Name
    GPRO
  • Certification
    ISO9001/ISO14001/CE/PVOC
  • Model Number
    GP33RWS
  • Minimum Order Quantity
    1 set
  • Price
    Negotiation
  • Packaging Details
    poly wooden case
  • Delivery Time
    25 days
  • Supply Ability
    500 sets / Month

Lower Noise Water Cooled Four Stroke 30kw Three Phase Generator With RAYWIN Engine

Lower Noise Water Cooled Four Stroke 30kw Three Phase Generator With RAYWIN Engine



30KVA silent generator specification:

Model 4D24G
Type Vertical In-Line , Water cooled Four stroke
Combustion System DI
Cylinder No. 4
Bore x Stroke 87mm x 103mm
Displacement 2.45L
Compression Ratio 19:01
Induction System Naturally Aspirated
Firing Order 1-3-4-2
Flywheel 7.5 inch
Flywheel Housing SAE 4


Startability & Operating Temperatures:

Aided starting : -30 ℃
Ambient operating temperatures: -30℃ -- 45℃


Easy Service Features:


Same side maintenance
Oil change interval : 250 hrs (500 hrs optional)
Oil / Fuel filter change interval: 250 hrs (500 hrs optional)
Air filter change interval: 250 hrs (500 hrs optional)
Alternator belt replacement : 800 hrs
Valve lash inspect / adjust : 800 hrs
Coolant change: 2 years
Oil consumption : <= 0.1


Physical Characteristics:


Gradeability - all round (Continuous 10 mins ) : 30
Gradeability- all round (intermittent - 1 min) : 35

Description:


1. Chinese famous brand --RAYWIN ngine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF.

4. Options: remote controller, synchronizing.

5. ATS cabinet

6. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:


1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original FAWDE engine , good quality , good price.
