Home Use Three Phase 15kva Denyo Typ Diesel Power Generator With Fawde Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 5KVA 10KVA 15KVA 20KVA 30KVA | Current | 10A-60 |
|---|---|---|---|
| Voltage | 220/380V | Engine | Chinese Engine KOFO/ FAW/ WEICHAI/YUCHAI |
| Alternator | Original Stamford / Mecc Alte | Controller | Smartgen / DeepSea /ComAp |
| MCCB | Delixi / ABB 3 Pole Or 4 Pole | Warranty | 1 Year Or 1000 Hours |
| ATS | Option | Battery | 60A Battery |
| Heater | Fuel Heater , Water Heater Option | ||
| High Light | industrial diesel generators,diesel genset |
||
Product Description

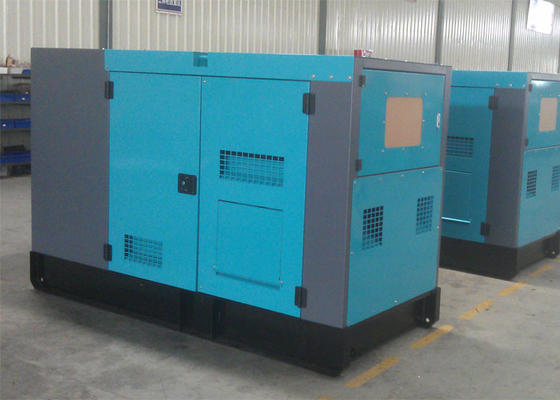

Home Use Three Phase 15kva Denyo Type Diesel Power Generator with fawde engine
Diesel power generator with Chinese FAW engine selection:
| Power friend genset model | Engine brand | Standby Power | Rated Power | Engine Model | Copy stamford Alternator |
| PF-XC17 | FAWDE | 17kva | 15kva | 4DW81-23D | UP164D |
| PF-XC22 | FAWDE | 22kva | 20kva | 4DW91-29D | UP184ES |
| PF-XC28 | FAWDE | 28kva | 25kva | 4DW92-35D | UP184E |
| PF-XC33 | FAWDE | 33kva | 30kva | 4DW92-39D | UP184F |
| PF-XC39 | FAWDE | 39kva | 35kva | 4DX21-53D | UP184H |
| PF-XC55 | FAWDE | 55kva | 50kva | 4DX22-65D | UP224D |
| PF-XC72 | FAWDE | 72kva | 63kva | 4DX23-78D | UP224E |
| PF-XC83 | FAWDE | 83kva | 75kva | CA4DF2-12D | UP224F |
| PF-XC413 | FAWDE | 413kva | 375kva | CA6DN1J-45D | UP-4F |
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-FW17 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 12KW 15KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 13KW 17KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1450*650*1050, Silent: 2000*940*1100 |
| 1.7 | Weight | Open: 480kg, Silent: 800kg |
| 1.8 | Fuel consumption 100% prime load | 3.3L/h |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | 4DW81-23D |
| 2.3 | Governor/Class | Machanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 12V, electric |
| 2.8 | Air intake type | Natural |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 85×100 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 2.27 |
| 2.13 | Engine Prime Power at 1500rpm | 17KWm |
| 2.14 | Engine Standby Power at 1500rpm | 19KWm |
| 2.15 | Lubrication oil capacity | 7.8L |
| 2.16 | Oil consumption | 0.05 |
| 2.17 | Dry weight of base | 220Kg |
| 2.18 | Dry weight of Gen Pac | 240Kg |
| 2.19 | Overall dimension(G.P) | 920×610×760(mm) |
| 2.2 | Overall dimension(base) | 750×555×680(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 1.4 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | Stamford/PI 044G |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 23A |
| 3.12 | Efficiency | 81.70% |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 99kg |
Description:
1. Chinese brand- FAWDE engine
2. Alternator: Copy Stamford
3. Controller: Smartgen / DeepSea
5. ATS is optional
6. Type: Soundproof type, weather proof, Trailer type
7. Battery: maintenance-free battery
8. With battery charger
9. Radiator with Antifreezing
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Low fuel consumption
2. Good quality engine and alternator
3. Fast delivery. Big quantity of Engines in stock.
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service

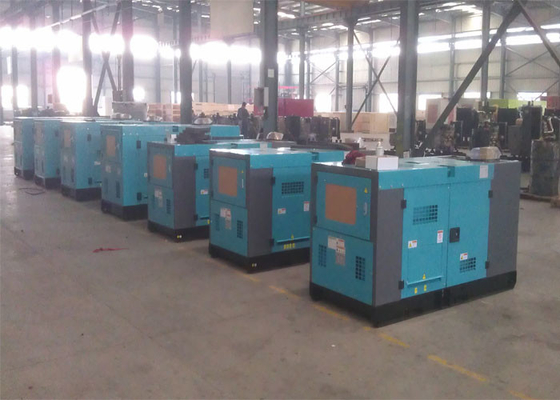

Mass generators photos:
