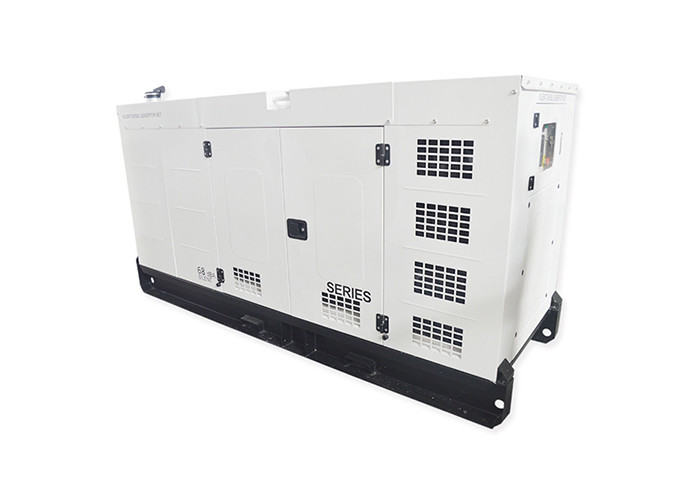

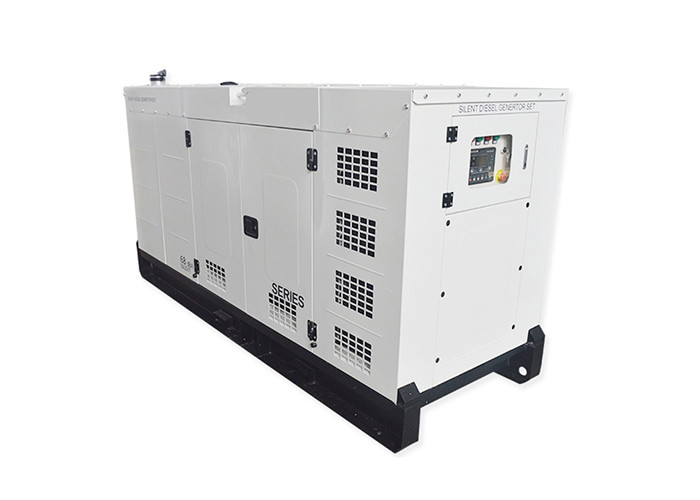

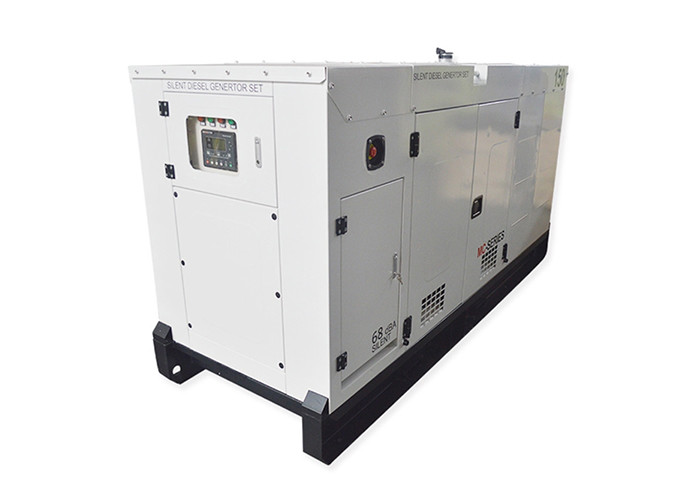

80KVA silent generator set Stamford alternator Cummins engine DeepSea controller
80KVA Cummins silent type generator SPECIFICATION:
|1. SPECIFICATIONS OF GEN-SET|
|1.2||Prime at 60HZ, 40℃ ambient||64KW 80KVA|
|1.3||Standby at 60HZ, 40℃ ambient||70KW 88KVA|
|1.4||Rated Gen-set output||220/380V 60Hz|
|1.5||Rated Relative humidity||≤ 60 %|
|1.8||Fuel consumption 100% prime load||17L/h|
|1.9||Total heat radiated to ambient||26KW|
|1.10||Noise Level at 7m (Normal/Super)||72dB|
|1.11||Structure of Gen-set||The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.|
|1.12||Control system (Optional)||Basic control panel or Advanced control panel with automatically start-up function and other function.|
Cummins engine specification:
|2. SPECIFICATIONS OF ENGINE|
|2.1||Engine Brand||with Cummins engine|
|2.6||Fuel spray pattern||PT direct injection|
|2.7||start-up method||24V, electric|
|2.8||Aspiration||Turbocharged/Charged air cooled|
|2.9||Cooling mode||Radiator cooled (enclose water)|
|2.10||Bore and stroke||102×120 mm|
|2.13||Engine Prime Power at 1500rpm||90KWm|
|2.14||Engine Standby Power at 1500rpm||100KWm|
|2.17||Lubrication oil capacity||16L|
|2.18||Coolant capacity - radiator and engine (40℃)||28L|
|2.19||Exhaust temp - full load prime||518℃|
|2.20||Exhaust gas flow - full load prime||1500m 3/h|
|2.21||Exhaust gas back pressure max||75mmHg|
|2.22||Air flow - radiator (40℃ ambient)||3.5 m 3/s|
|2.23||Pusher fan head (duct allowance) 40℃||13mmH 2O|
|2.24||Air intake - engine- full load prime||498m 3/h|
|2.25||Standard Air intake temp||25℃|
|2.26||Fuel type||#0 Diesel (Natural temperature)|
|2.27||Filter system||Adopt whole changeable lubricating oil, fuel filter and air filter|
|2.28||Exhaust system||Adopt industrial high efficiency muffler and ripple pipe|
1. Original Cummins engine
2. Alternator: Italy Mecc alte / Stamford
3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.
4. ATS cabinet
5. Type: Silent type, weather proof, Trailer type
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake
1. User friendly with low emissions
2. More power reserve, better performance
3. Fast delivery. Big quantity of Engines in stock.
4. Good parts commonality
5. Original Cummins engine , good quality , good price.
Mass generators photos:
Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
