Soundproof 150kva Perkins Diesel Generator Open Type Generator DeepSea Controller

Place of Origin WUXI CITY China
Certification ISO,CE Certification
Model Number PF-P165S
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Poly wooden case
Delivery Time 25 days
Payment Terms L/C, T/T
Supply Ability 300 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Rated Power 150KVA/120KW Frequency 50/60HZ
Voltage 220/380V Engine Original UK Perkins /1106A-70TAG2
Alternator Original Stamford / Mecc Alte Controller Deepsea, Smartgen
MCCB ABB Or Delixi , 3 Pole Cooling System Water Cooled
Genset Type Open Type , Silent Type ATS ABB / Socommec / Asikai
Warranty Time 1 Year Or 1000 Hours
High Light

open type genset


water cooled generator

Leave a Message
Product Description

150kva Perkins diesel generator open type soundproof type DeepSea controller


150kva 120kw Perkins diesel power generator specification:


1.1 Set Model PF-P165S
1.2 Prime at 50HZ, 40℃ ambient 120KW 150KVA
1.3 Standby at 50HZ, 40℃ ambient 132KW 165KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 3250×1150×1600mm
1.7 Weight 2000kg
1.8 Fuel consumption 100% prime load 40.2L/H
1.9 Noise Level at 7 (Normal/Super) 75/65dB
1.10  Structure of Gen-set

The Gen-set adopt integrative structure,

engine is fix on high strength

 steel basic frame, anti vibration

 instrument between the engine

and basic frame, cooling fan have

 protecting cap, control cabinet

and circuit breaker

installed on Gen-set

1.11 Control system (Optional)

Basic control panel or

 Advanced control panel

with automatically start-up

function and other function

2.1 Engine Brand Perkins
2.2 Engine Model 1106A-70TAG2
2.3 Governor/Class Electronic
2.4 Cylinder NO. 6
2.5 Engine build Vertical in-line
2.6 Fuel spray pattern direct injection
2.7 Aspiration

Turbocharged and

Air Charge Cooled

2.8 Cooling mode

Radiator cooled

(enclose water)

2.9 Bore and stroke 105×127mm
2.10  Compression ratio 16.2:1
2.11 Displacement 6.6 litres
2.12 Engine Prime Power at 1500rpm 129.5KWm
2.13 Engine Standby Power at 1500rpm 143.9KWm
2.14 Start-up mode 12V, electric
2.15 Battery capacity /
2.16 Starting/Min temperature /
2.17 Lubricating oil consumption

Lubricating oil consumption

 less  than 10%

Fuel consumption

2.18 Lubrication oil capacity /
2.19 Coolant capacity – radiator and engine (40℃) /
2.20  Exhaust temp – full load prime /
2.21 Exhaust gas flow – full load prime /
2.22 Exhaust gas back pressure max /
2.23 Air flow – radiator (40℃ ambient) /
2.24 Pusher fan head (duct allowance) 40℃ /
2.25 Air intake – engine– full load prime /
2.26 Standard Air intake temp 25℃
2.27 Fuel type #0 Diesel (Natural temperature)
2.28 Filter system

Adopt whole changeable

 lubricating oil, fuel

filter and air filter

2.29 Exhaust system

Adopt industrial high

efficiency silencer

and flexible bellows

2.30  Engine derating – altitude /
2.31 Engine derating – temperature /
3.1 Alternator Model UCI274F
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10  Phase & wires 3 phase 12 wires
3.11 Rated currency 230.9A
3.12 Efficiency 0.923
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20  Weight 530Kg





1. Rated power: 150kva/120kw

2. Max power: 165kva/132kw

3. Engine: UK Perkins / 1106A-70TAG2

4. Alternator: Genuine Stamford, Marathon, Meccalte, etc

5. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing

6. ATS is optional, including ABB/ SOCOMMEC and world famous brand

7. Type: Open type, Soundproof type, Trailer type, Container type, etc

      8. Color: Can be customized




1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow

6. Standby power or main power, indoor or outdoor using.


Competitive Advantage:


1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.

10. Big OEM of Perkins /Cummins engines and Stamford alternators

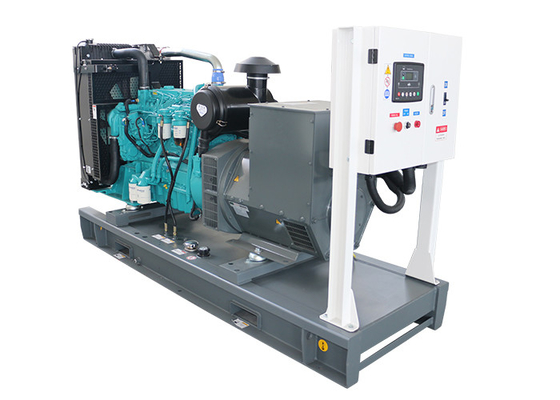

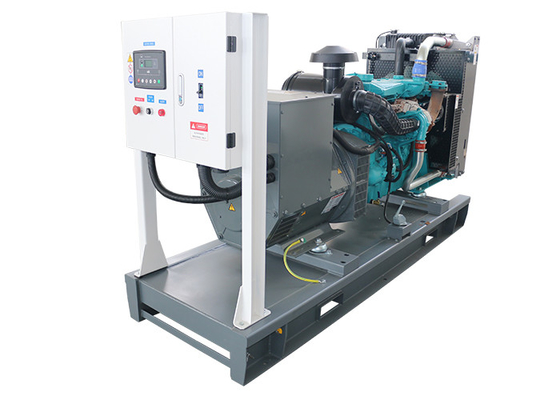

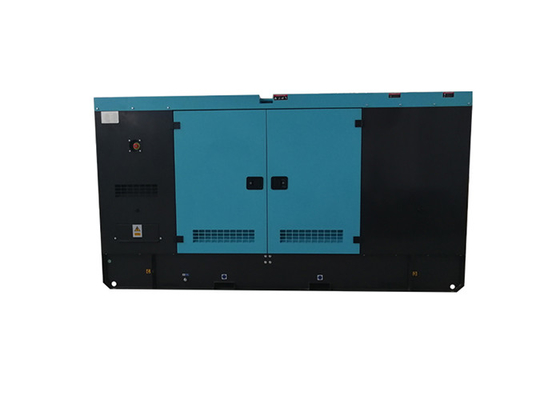

Power diesel generators photos:


Soundproof 150kva Perkins Diesel Generator Open Type Generator DeepSea Controller 0
