25kva Cummins Engine Silent Generator Set Stamford Alternator
Place of Origin | CHINA |
---|---|
Brand Name | POWER FRIEND- FAWDE genset |
Certification | ISO9001/ISO14001 /CE |
Model Number | PF-DC28S |
Minimum Order Quantity | 1 |
Price | 5800-6200 |
Packaging Details | poly wooden case / poly bag |
Delivery Time | 25 days after get the deposit |
Payment Terms | Western Union, T/T, L/C |
Supply Ability | 1 set / 25 days |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRated Power | 25KVA/20KW | Standby Power | 28KVA /22KW |
---|---|---|---|
Noise | 65dB 7 Meters Super Silent Type | Fuel Tank | 8 Hours /24 Hours/ 72 Hours |
Certificate | ISO9001/ISO14001/CE | Altenrator | Stamford / Mecc / Chinese Brand |
Controller | DEEPSEA / SMARTGEN/ HARSEEN | ATS | Option |
Battery Charger | Including , 24V / 12V Battery Charger | ||
High Light | power generating set,silent diesel generators |
20kva FAWDE diesel generator specification:
Genset Model | PF-DC28S |
Prime Power | 20KW/25KVA |
Standby Power | 22KW/28KVA |
Phase Number | 3 |
Power Factor | 0.8 |
Rated Voltage | 230/400V |
Frequency | 50 HZ |
Rated Current | 30A |
Genset Structure | Silent |
Noise Level | 65dB (7meters) |
Dimension (Silent type) | 2000x940x1200MM |
Net Weight(Silent type) | 1100KG |
Engine Model | CUMMINS / 4B3.9-G1 |
Engine Features | 4-cylinder,4 stroke,water cooled, direct injection |
Bore * Stroke | 90*100 |
Displacement | 2.54L |
12-hour Power | 21/1500 |
Fuel Consumption | 240 |
Compression Ratio | 17:1 |
Starting Mode | Electric Starter 12V |
Fuel Tank Capacity | 40L |
Alternator Model | Original STAMFORD / PI144D |
Rated Power | 16KW/20KVA |
Max Power | 18KW/22KVA |
Excitation Mode | brushless self-excited |
Insulation Class | H |
Protection Class | IP23 |
Construction Type | SAE Disc-coupling |
Description:
1. Engine: Cummins diesel engine
2. Alternator: Stamford / Mecc Alte / Chinese brand engine
3. Controller: UK Deepsea / Smartgen / ComAp / Harseen
4. Options: remote controller, synchronizing.
5. ATS is optional: Aiskai / Socommec / ABB and so on brand
6. Type: Silent type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Competitive price
2. Good quality engine and alternator
3. Fast delivery. engine in stock
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service
FAWDE ENGINES IN STOCK:

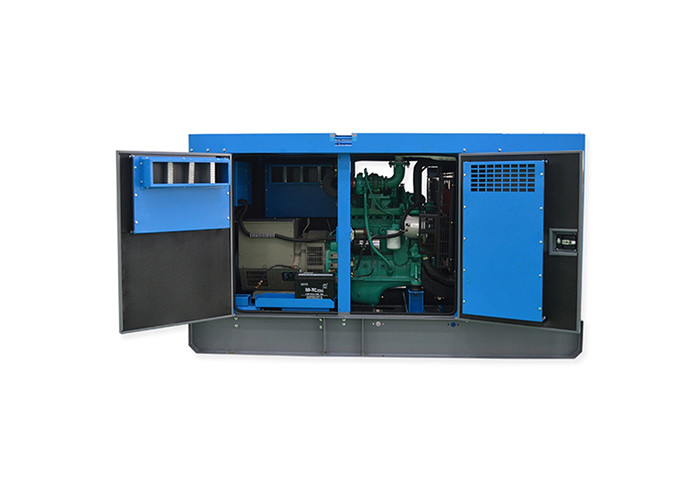

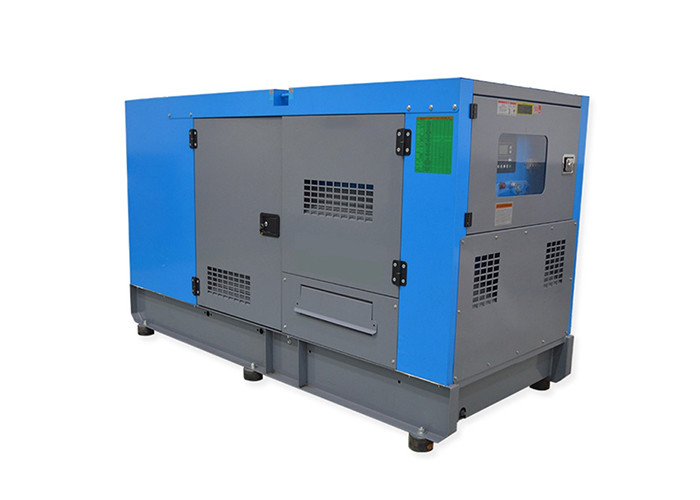

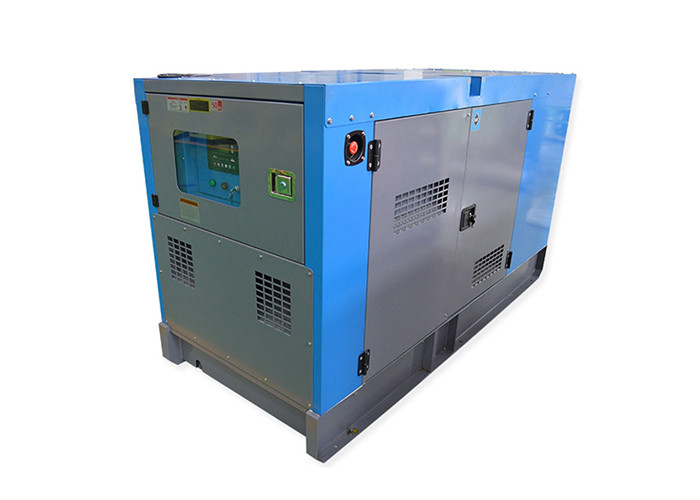

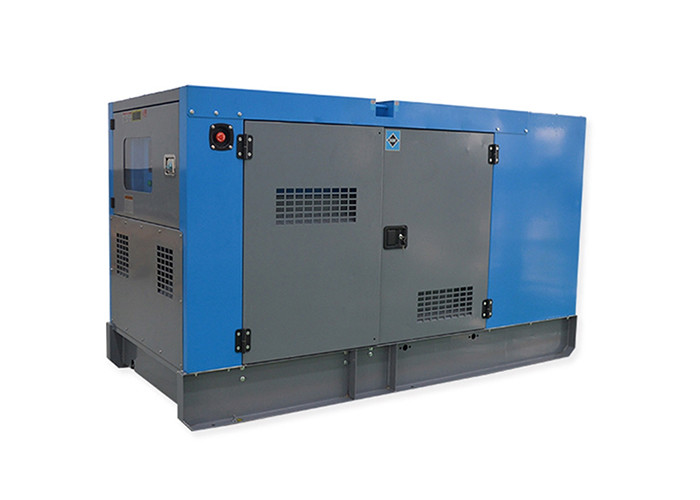

SILENT TYPE FAWDE 20KVA GENERATOR PHOTOS:
