Home /Products/Diesel Power Generator/Home Standby 3 Phase Diesel Power Generator 20KW 60HZ Powered By Fawde Engine

Home Standby 3 Phase Diesel Power Generator 20KW 60HZ Powered By Fawde Engine

1 set
MOQ
Negotiation
Price
Home Standby 3 Phase Diesel Power Generator 20KW 60HZ Powered By Fawde Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 25KVA / 20 KW
Frequency: 60HZ
Current: 50A
Voltage: 220/380V
Engine: FAWDE
Controller: Smartgen / DeepSea 3110
MCCB: Delixi /ABB
Sound Level/db: 66dB 7 Meter
Warranty: 1 Year Or 1000 Hours
Alternator: Original Stamford
High Light:

industrial diesel generators

,

diesel genset
Basic Infomation
Place of Origin: WUXI
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP28FWS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 25 days
Supply Ability: 500 sets / Month
Product Description

Home Standby 3 Phase Diesel Power Generator 20KW 60HZ Powered By Fawde Engine



25kva Denyo ultra silent generator

1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP28FWS
1.2 Prime at 50HZ, 40℃ ambient 20KW 25KVA
1.3 Standby at 50HZ, 40℃ ambient 22KW 27.5KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1500*700*1050,
Silent: 2000*940*1200
1.7 Weight Open: 700kg, Silent: 1100kg
1.8 Fuel consumption 100% prime load 7
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model 4DW92-35D
2.3 Governor/Class Mechanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 12V, electric
2.8 Air intake type Turbocharged
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 90×100 mm
2.11 Compression ratio 17:01
2.12 Displacement 2.54
2.13 Engine Prime Power at 1500rpm 26KWm
2.14 Engine Standby Power at 1500rpm 29KWm
2.15 Lubrication oil capacity 8L
2.16 Oil consumption 0.04
2.17 Dry weight of base 240Kg
2.18 Dry weight of Gen Pac 260Kg
2.19 Overall dimension(G.P) 1120×810×760(mm)
2.2 Overall dimension(base) 750×600×735(mm)
2.21 27℃ air consumption ( m³/ min) 2.1
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model Stamford/PI 144E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5％
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 39.7A
3.12 Efficiency 0.858
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 150kg

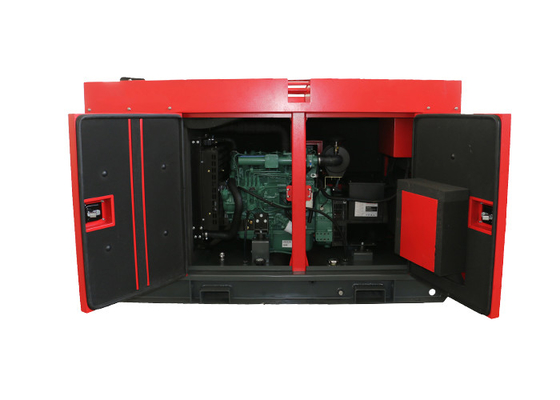

Home Standby 3 Phase Diesel Power Generator 20KW 60HZ Powered By Fawde Engine 0

Description:


1. Original FAWDE engine

2. Alternator:Stamford

3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.

4. ATS cabinet

5. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:


1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Ultra silent  , low noise level

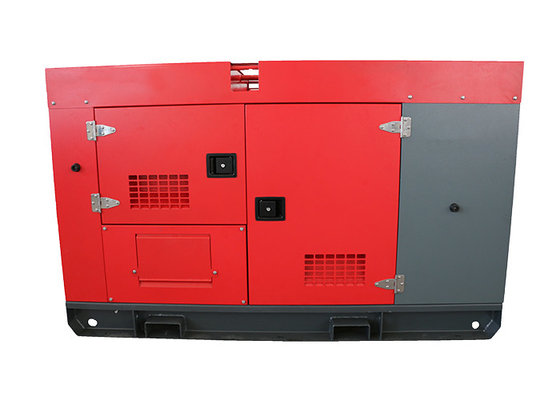

Home Standby 3 Phase Diesel Power Generator 20KW 60HZ Powered By Fawde Engine 1

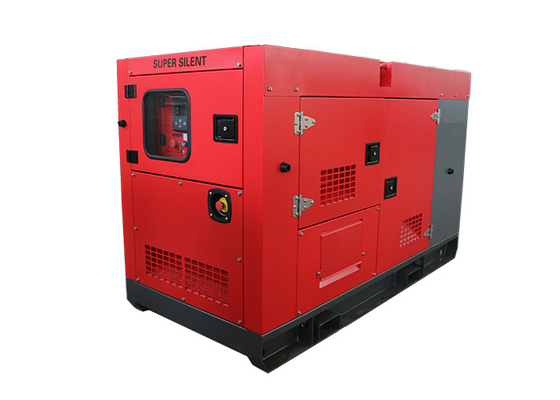

Home Standby 3 Phase Diesel Power Generator 20KW 60HZ Powered By Fawde Engine 2





Tag:

industrial diesel generators

diesel genset

diesel silent generator
